Murata Power Solutions 2W SIP Dual Output Unregulated Isolated DC-DC Converter, 124V Output, 13.2V Max Input NMH1215SC

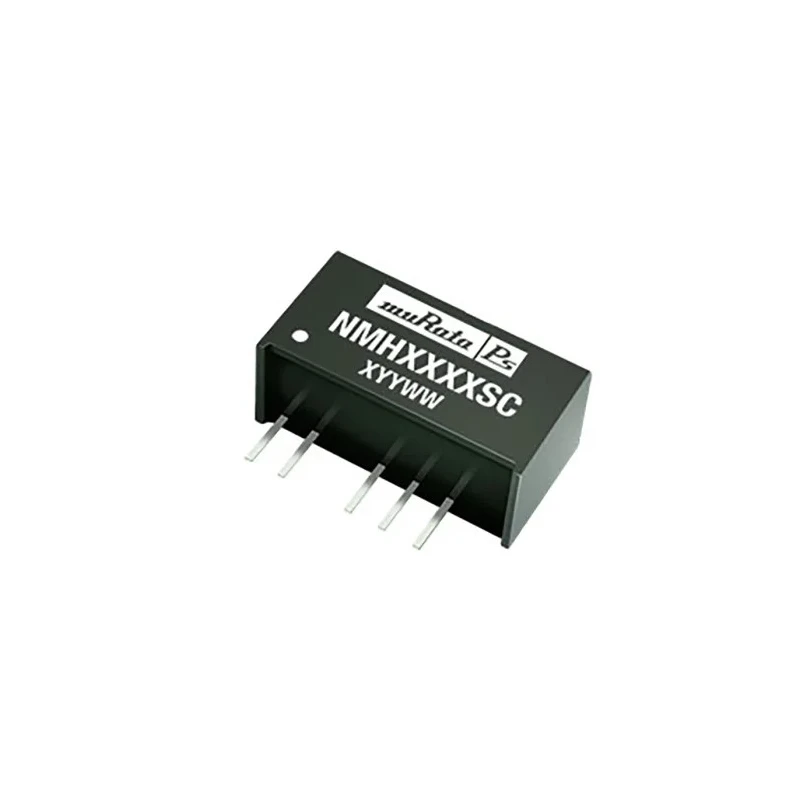

Murata Power Solutions NMH1215SC is a 2W SIP dual output unregulated isolated DC-DC Converter designed for electronic powering applications. Featuring a compact SIP7 plastic package with a through-hole DIP mounting style, this converter ensures easy integration into printed circuit boards.

Its electrical characteristics include a 124V output voltage, output current of 83mA, and an input voltage range from 10.8V to 13.2V DC. The device supports a maximum output power of 2W with an isolation voltage rating of 1kV DC, providing robust electrical isolation suitable for sensitive industrial and commercial use cases.

The NMH1215SC achieves a high efficiency of 84%, ensuring minimal power loss during operation and contributing to energy-saving designs. It operates without output derating up to a maximum ambient temperature of 85°C and a minimum operating temperature of -40°C, making it ideal for demanding environments.

Constructed with internal surface-mount device (SMD) technology and packaged using UL 94V-0 flammability rated materials, it offers superior safety and durability. This product complies with RoHS and UL 60950 standards, supporting environmental compliance and safety requirements.

Typical applications include industrial power supplies, telecommunications equipment, and other embedded systems where isolated dual output power conversion is required. Its internal design eliminates the need for external components, simplifying circuit design and reducing assembly time.

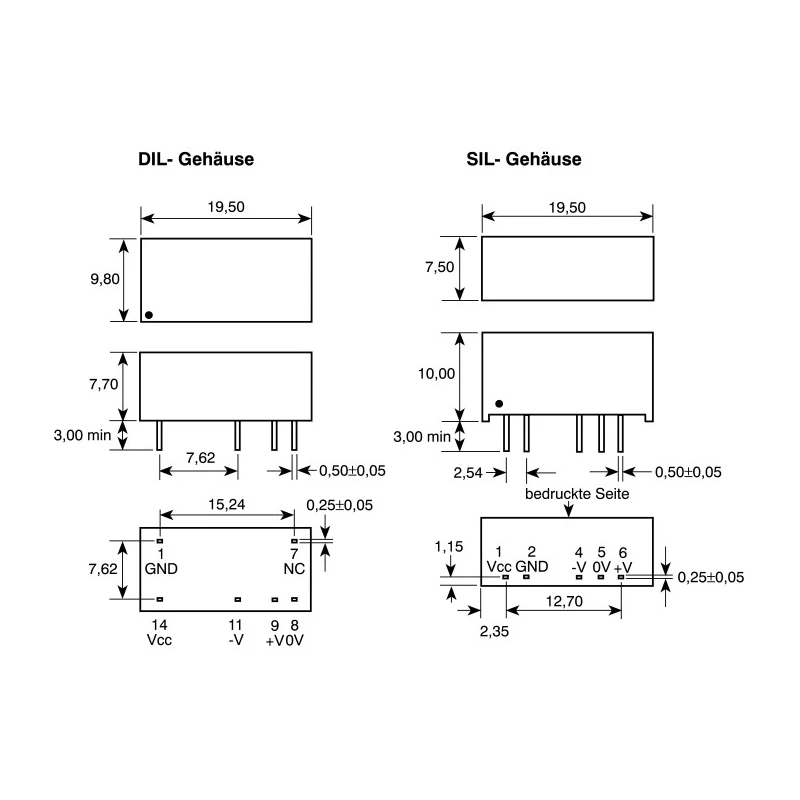

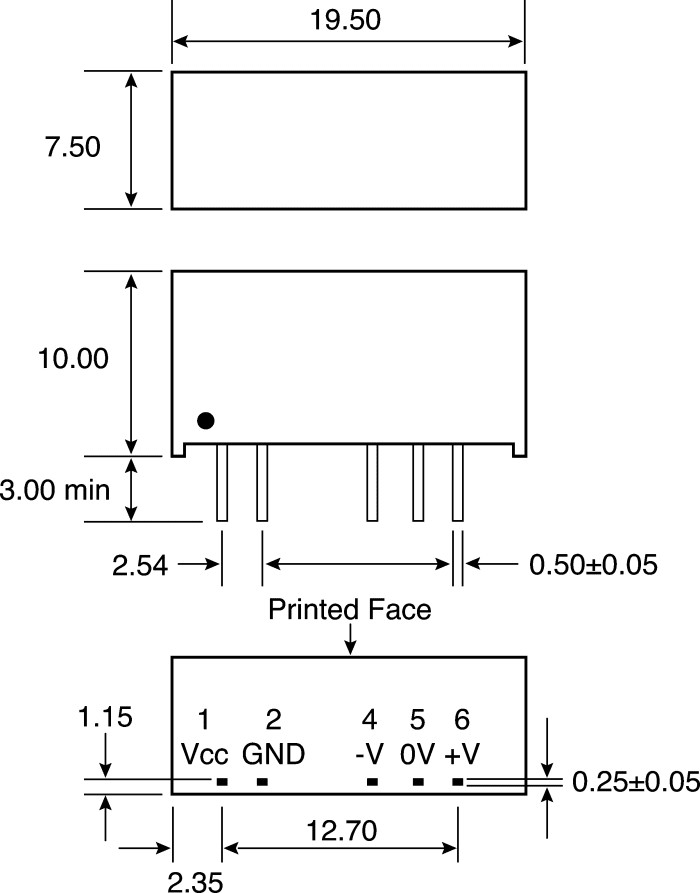

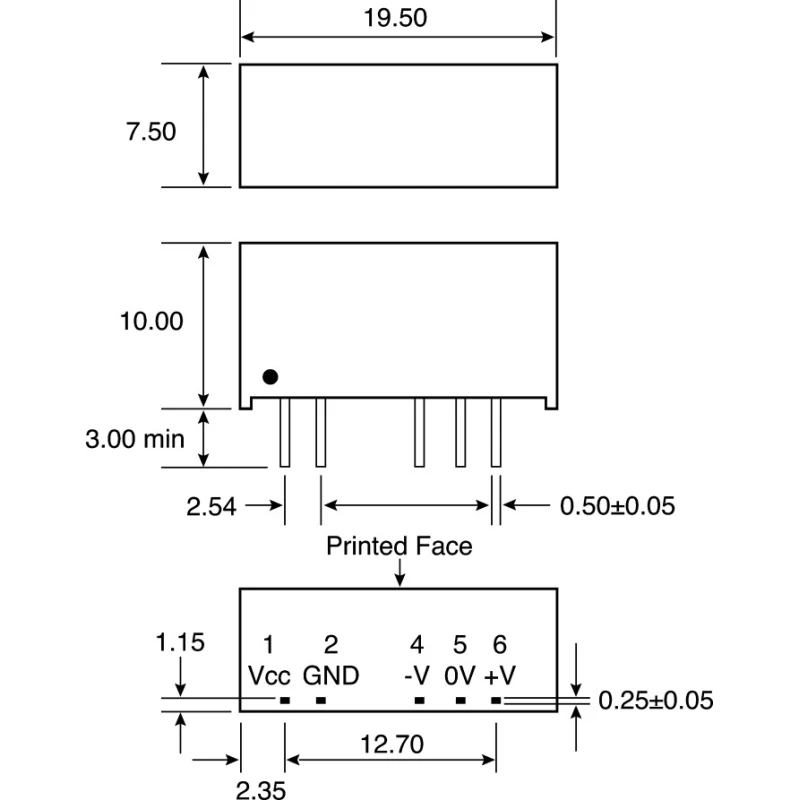

With dimensions of 19.5mm length, 19.5mm width, and 10mm depth, the converter offers a compact footprint suitable for space-constrained applications. The MTBF rated by MIL-HDBK-217F at 25°C indicates a high reliability level ensuring long-term operation in industrial environments.

Supports a maximum input voltage of 13.2V DC and minimum input voltage of 10.8V DC. Features a through-hole mount type with a DIP plastic package. Provides 1kV DC input-output isolation for enhanced safety. Achieves high efficiency of 84% with no derating up to maximum temperature of 85°C.

Compact dimensions: 19.5mm length, 19.5mm width, and 10mm depth. Complies with RoHS and UL 60950 safety standards. Designed with internal SMD construction and requires no external components. MTBF tested to MIL-HDBK-217F standard at 25°C ambient.

Operates reliably within temperature range of -40°C to 85°C. Explore more products in EnvMart's DC/DC Converter category to find compatible power management solutions.
