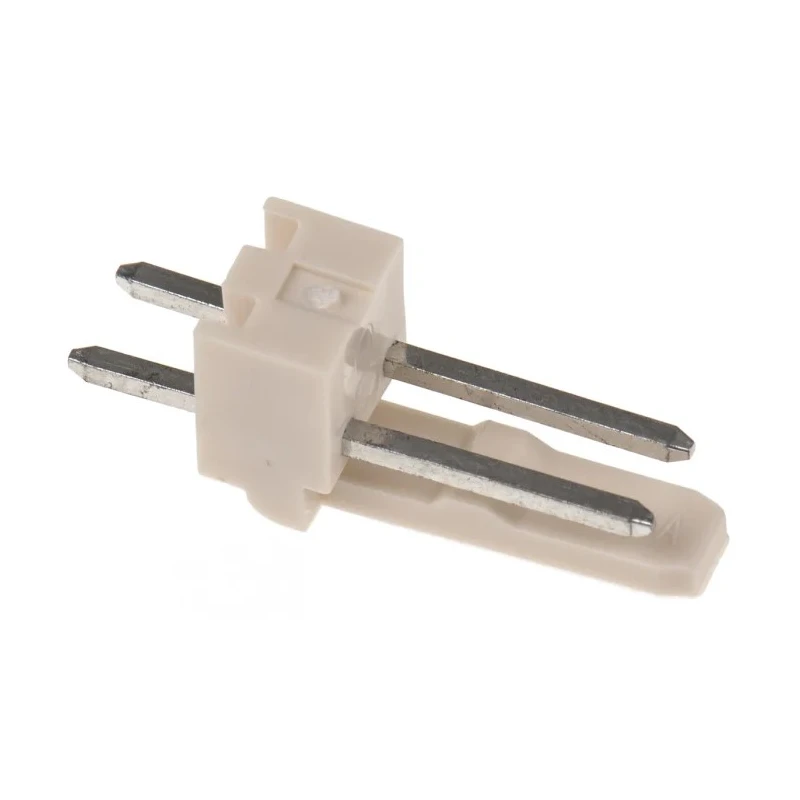

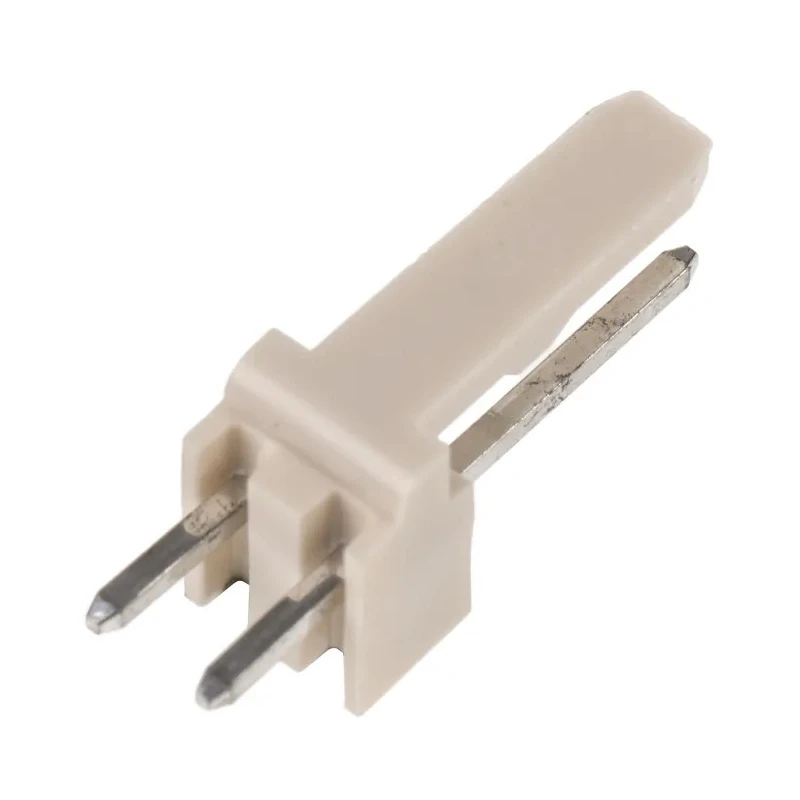

Molex Mini-Latch Series Straight Through Hole Pin Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Unshrouded 22-04-1021

Free Delivery in India | Lowest Global Shipping Charges

Molex Mini-Latch Series Straight Through Hole Pin Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Unshrouded 22-04-1021

Name: Molex Mini-Latch Series Straight Through Hole Pin Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Unshrouded 22-04-1021
Brand: Molex
SKU: 211999
Price: 0.46 USD
Availability: InStock



Category PCB Pin Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	Mini-Latch
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board

Key Features

Features a friction locking ramp for secure mating connections.
Unshrouded straight pin header design for through hole mounting.
Constructed with brass contacts plated with tin for excellent conductivity and corrosion resistance.
Polyamide housing material provides durability and heat resistance.
Rated for a current of 3A and voltage of 250V, suitable for various electronic applications.
Operating temperature ranges from -40°C to 105°C ensuring performance in diverse environments.
Compatible with Mini-Latch 51191 series and KK series 5051 crimp housings.
Ideal for use in vehicles, printers, monitors, data communication centers, and other electronic devices.

Product Description

Molex 22-04-1021 Mini-Latch Series Straight Through Hole Pin Header is a high-quality PCB connector designed to provide secure and reliable connections in electronic assemblies. Featuring 2 contacts with a pitch of 2.5 mm and a single row of pins, this unshrouded pin header facilitates effective wire-to-board connections with standard Mini-Latch crimp housings.

The contacts are made from brass and plated with tin to enhance conductivity and prevent corrosion, while the polyamide housing ensures strong mechanical stability and resistance to high temperatures. Rated for 3A current and 250V voltage, it operates efficiently within a temperature range of -40°C to 105°C.

This pin header incorporates a friction locking ramp mechanism that guarantees secure mating connections during use, minimizing contact failures. It supports through hole mounting and presents a straight orientation for ease of PCB integration.

Applications for this high-performance connector span a variety of sectors including automotive electronics, fax machines, printers, PC monitors, and data communication centers, where durability and secure electrical contact are essential.

Features a friction locking ramp for secure mating connections. Unshrouded straight pin header for through hole mounting. Brass contacts with tin plating for corrosion resistance. Polyamide housing material offers heat and mechanical resistance.

Rated for 3A current and 250V voltage operation. Operating temperature from -40°C to 105°C. Compatible with Mini-Latch 51191 and KK series 5051 crimp housings. Suitable for automotive, industrial, and communication device applications.

This Molex Mini-Latch Series Pin Header is essential in industrial and electronics manufacturing for reliable, durable PCB header connections. Discover more high-quality connectors and components in the Electronics & Electricals category at EnvMart for efficient system design.
