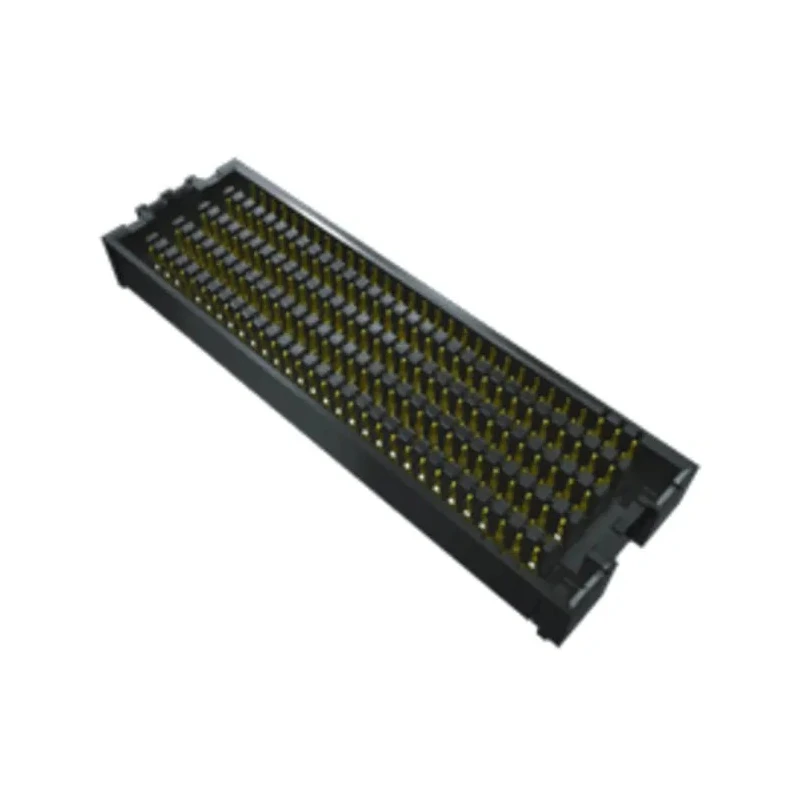

Samtec SEAF Series Straight Surface PCB Socket 120-Contact 4 Row 1.27 mm Pitch Solder SEAF-30-05.0-L-04-2-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.8A |
| Model | SEAF-30-05.0-L-04-2-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | SEAF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 7mm |
| Row Pitch | 2.5mm |
Key Features
- This PCB socket features a robust Edge Rate® contact system optimized for signal integrity.
- The socket provides a low insertion and withdrawal force for easy assembly.
- Designed with a liquid crystal polymer housing for durability.
- Gold-plated copper contacts ensure reliable electrical performance.
- Stacking height of 7 mm supports various configuration needs.
- Rated for 1.8 A current and 240 V operating voltage.
- Operates efficiently within the temperature range from -55°C to 125°C.
- Compatible with surface mount technology and straight orientation.
Product Description
The Samtec SEAF-30-05.0-L-04-2-A-K-TR is a straight surface mount PCB socket designed for board-to-board connectors, offering 120 contacts arranged in 4 rows with a 1.27 mm pitch. This socket employs a rugged Edge Rate® contact system that ensures signal integrity for high-speed applications up to 28+ Gbps, making it ideal for demanding electronic assemblies.
Constructed with a liquid crystal polymer housing, the socket withstands harsh industrial conditions while maintaining precision. The contact material is copper with gold plating to enhance corrosion resistance and electrical conductivity. The solder termination facilitates secure mounting and ease of reflow soldering in automated production lines.
Operating voltages up to 240 V and current carrying capacity of 1.8 A make this socket suitable for varied electronic circuits. It is engineered for temperatures ranging from -55°C to 125°C, ensuring reliability in diverse environmental conditions.
The connector system supports board-to-board stacking with a height of 7 mm and a 2.5 mm row pitch, allowing compact yet robust interconnections in densely packed electronics. The straight orientation enables easy integration on printed circuit boards while maintaining mechanical stability.
Common use cases include industrial manufacturing, telecommunications equipment, computing hardware, and consumer electronics where high-density and high-performance PCB interconnects are essential.
This PCB socket features a robust Edge Rate® contact system optimized for signal integrity. The socket provides a low insertion and withdrawal force for easy assembly. Designed with a liquid crystal polymer housing for durability.
Gold-plated copper contacts ensure reliable electrical performance. Stacking height of 7 mm supports various configuration needs. Rated for 1.8 A current and 240 V operating voltage. Operates efficiently within the temperature range from -55°C to 125°C.
Compatible with surface mount technology and straight orientation. Suitable for high-speed data applications supporting up to 28+ Gbps. Explore the range of Samtec PCB Sockets at EnvMart for high-quality, reliable electronic connection solutions designed for industrial and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket features 120 contacts arranged in 4 rows with a pitch of 1.27 mm.
It is rated for a maximum current of 1.8 A.
The operating voltage is rated up to 240 V.
This model operates efficiently within a temperature range of -55°C to 125°C.
The socket uses a solder termination type for secure mounting.
The stacking height is 7 mm, supporting various configuration needs.
The housing is made of liquid crystal polymer, and the contacts are copper with gold plating.
This socket has a straight orientation, which facilitates easy integration on printed circuit boards.
It is commonly used in industrial manufacturing, telecommunications equipment, computing hardware, and consumer electronics.
The row pitch is 2.5 mm.
It supports a board-to-board connector system, ideal for high-density interconnections.
The Edge Rate® contact system is optimized for signal integrity, ensuring reliable performance in high-speed applications up to 28+ Gbps.
