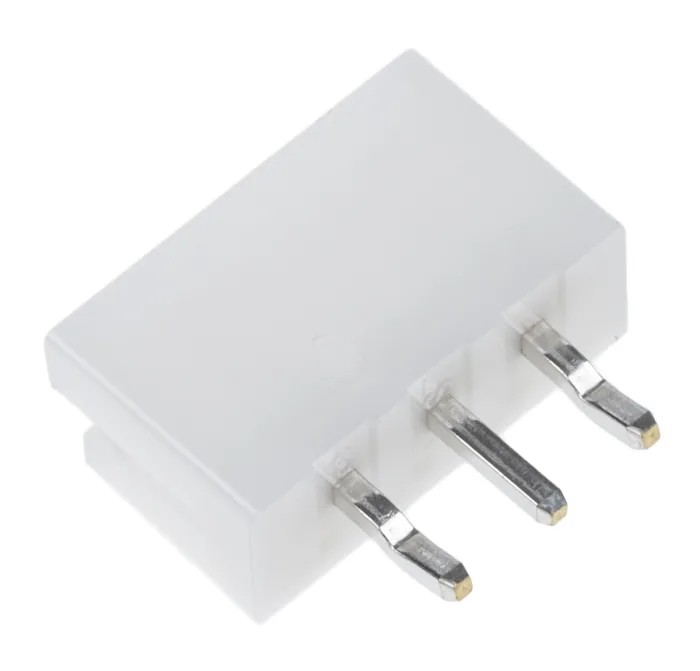

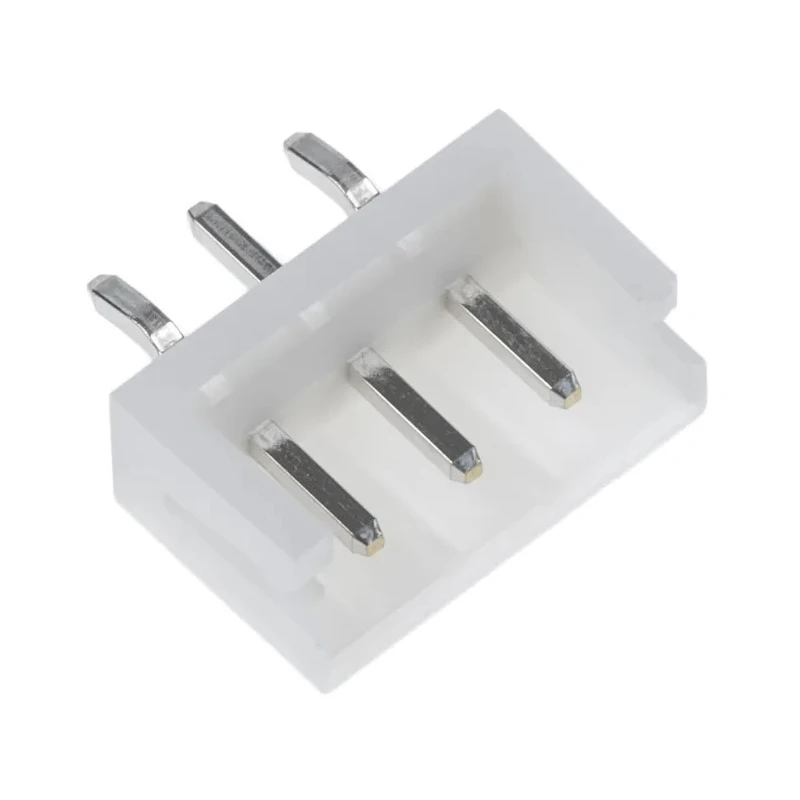

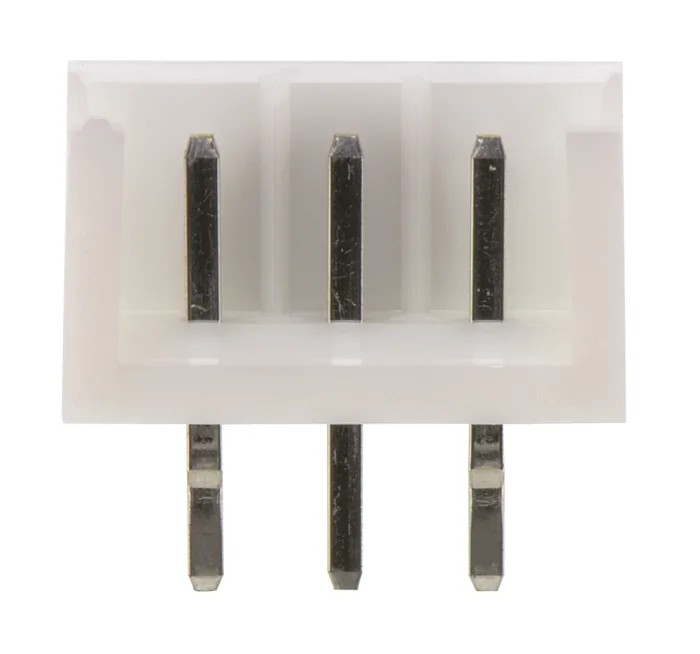

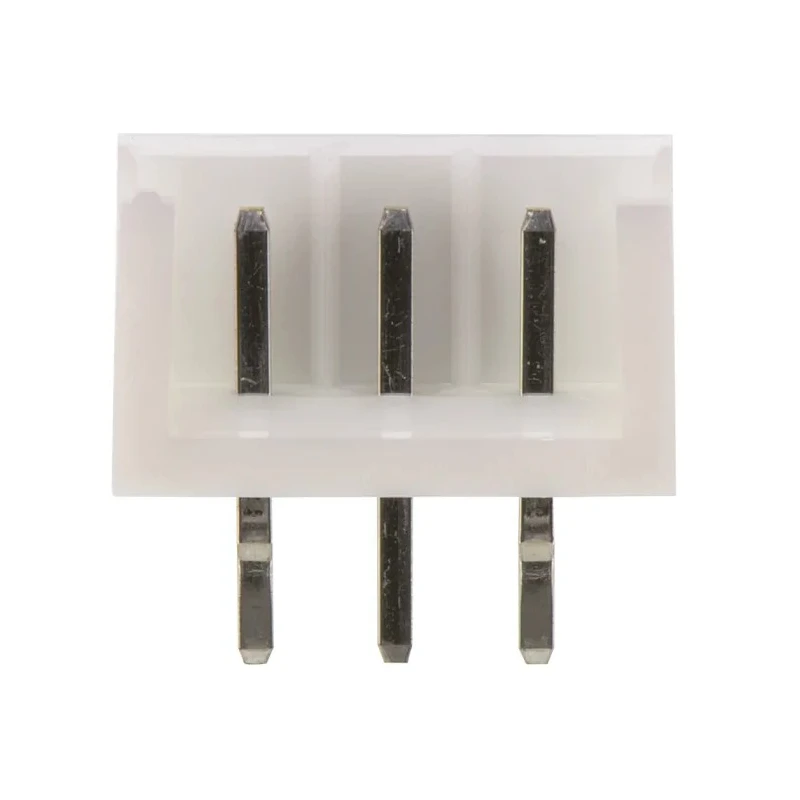

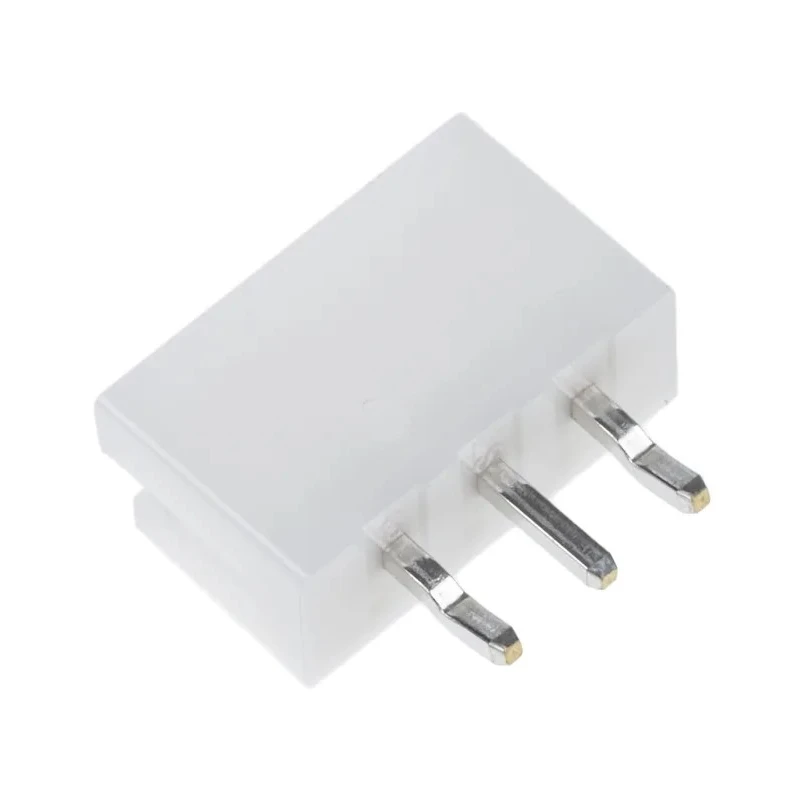

JST EH Series Shrouded Straight Through Hole PCB Header, 3 Contacts, 2.5 mm Pitch, 1 Row B3B-EH-A (LF) (SN)

JST B3B-EH-A (LF) (SN) is a shrouded straight through hole PCB header from the EH Series designed for precise and reliable wire-to-board connections. Featuring 3 contacts with a 2.5 mm pitch arranged in a single row, this connector is suited for industrial, electronic, and communication equipment.

Constructed with a polyamide housing, the header is resilient at temperatures between -25°C and 85°C, allowing usage in various environments. The brass contacts plated with tin ensure excellent electrical conductivity and corrosion resistance. The solder termination type allows secure and stable mounting on through-hole PCB pads.

With a current rating of 3A and voltage rating of 250V, this header supports moderate power applications while maintaining compact dimensions. The mating pin length of 3.2 mm facilitates strong mechanical engagement and reliable electrical contact with corresponding crimp and IDC socket housings.

The shrouded design includes integral keying features to ensure correct polarization and prevent misalignment during mating, enhancing reliability in assembly operations. This product is ideal for use in industrial electronics, communications devices, instrumentation, control systems, and general PCB interconnection needs.

This PCB header features a durable polyamide housing for safety and insulation. The connector is designed for through-hole mounting with a straight orientation. Contacts are brass with tin plating providing reliable conductivity.

The header supports a maximum current of 3A and a voltage rating of 250V. Its solder termination ensures a secure electrical connection. Suitable for operating temperatures ranging from -25°C to 85°C for versatile usage.

The mating pin length is 3.2 mm for reliable connection with mating connectors. The connector system is wire-to-board, useful for PCB applications requiring secure wiring. Manufactured in Malaysia ensuring international quality standards.

Shrouded housing provides proper polarization, preventing incorrect mating.

This JST EH Series PCB Header caters to electronic manufacturing, prototyping, and repair environments, offering dependable connectivity and reducing assembly errors. Explore EnvMart for additional JST electronic components, connectors, and compatible hardware solutions.
