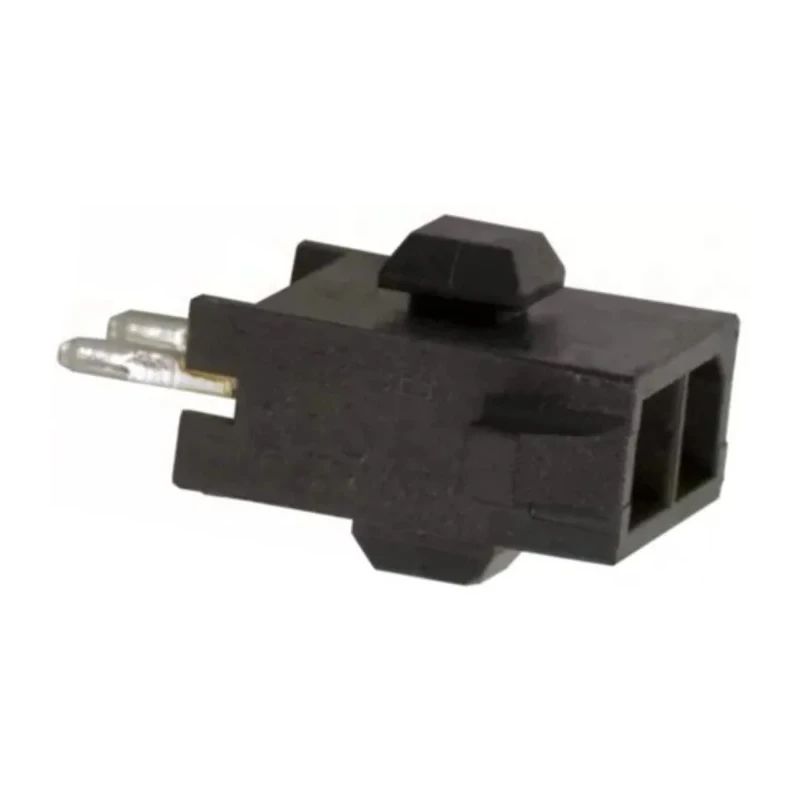

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header, 2 Contact, 3 mm Pitch, 2 Row, Shrouded 3-794630-2

TE Connectivity 3-794630-2 Micro MATE-N-LOK Series Straight Through Hole PCB Header is a high-quality wire-to-board connector designed with 2 contacts arranged in 2 rows, spaced at a 3 mm pitch. This shrouded header features a nylon housing that provides excellent insulation and durability, ensuring the connector meets industrial standards for robustness.

The contacts are made from brass and plated with tin to deliver reliable conductivity and resistance to corrosion. The connector is designed for through-hole mounting on printed circuit boards with male contacts and solder termination, making it ideal for secure and long-lasting electrical connections.

Operating safely within a temperature range of -40°C to 105°C and rated for voltages up to 250V and currents of 5A, this Micro MATE-N-LOK PCB header supports various industrial and consumer applications, including household appliances, lighting systems, factory automation, data storage units, and security systems. The shrouded design includes polarization and positive lock tabs to prevent mis-mating and ensure a secure connection with mating cable connectors.

The tail pin length of 3.18 mm aids in retaining the header firmly on the PCB, improving connection integrity during thermal and mechanical stress. These connectors also comply with IR reflow soldering processes and are available in vertical and right-angle configurations.

TE Connectivity’s Micro MATE-N-LOK range offers versatility and reliability for electronics manufacturing, especially in applications requiring compact connectors with a low profile and strong retention features. This product is designed for industrial, commercial, and consumer electronic uses.

The connector provides a current rating of 5A for reliable electrical performance. Constructed with a nylon housing material for durability and insulation. Features brass contact material with tin plating for corrosion resistance.

Designed for through-hole mounting with a male contact gender and solder termination. Operates reliably across a temperature range from -40°C to 105°C. Polarized housing and positive lock tabs ensure secure mating and prevent mis-mating.

The tail pin length measures 3.18 mm to ensure secure PCB connection. Rated for voltage up to 250V, suitable for demanding industrial applications. Applications include household appliances, lighting, factory automation, data storage, and security systems.
