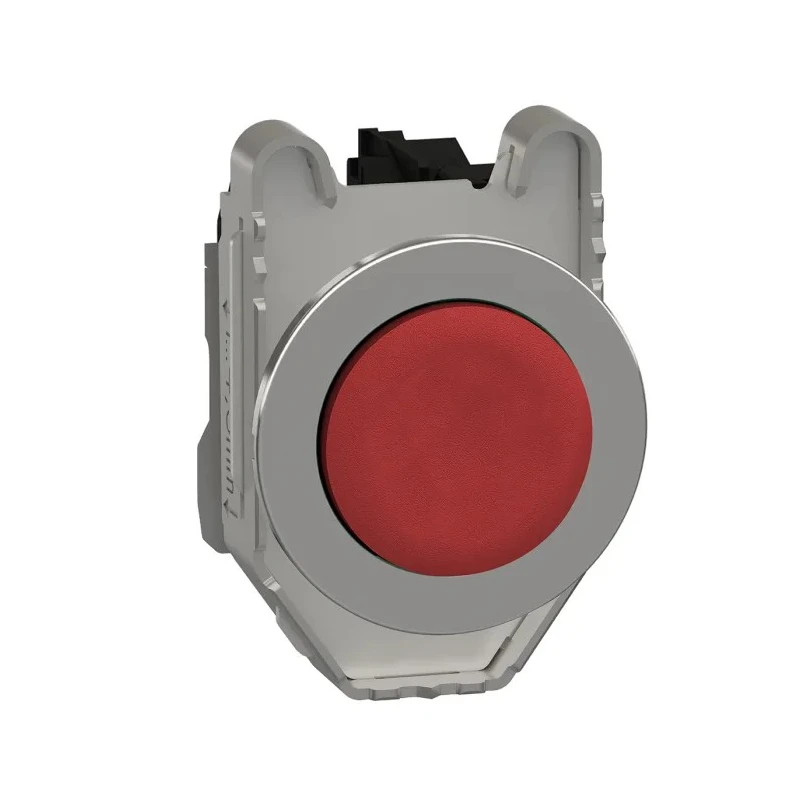

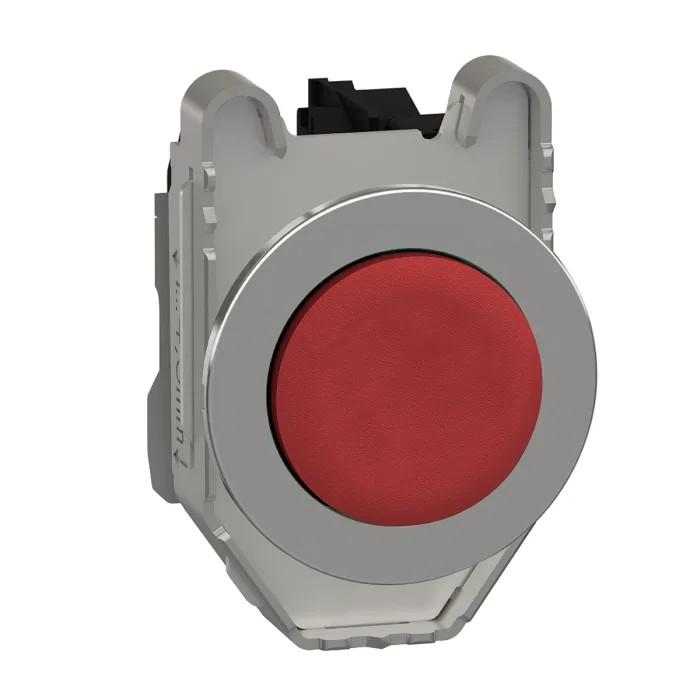

Schneider Electric Harmony XB4 Series Push Button Switch, Red Actuator, Spring Return, Panel Mount, 30 mm Cutout XB4FL42

Schneider Electric XB4FL42 Harmony XB4 Series Push Button Switch is a robust and reliable control component designed for industrial and commercial electrical panel applications. It features a red, round actuator with spring return mechanism, enabling quick reset after actuation. The panel mount design requires a 30 mm diameter cutout and ensures ease of installation in control panels.

This push button switch operates with a SPST (single-pole single-throw) contact configuration, delivering dependable switching performance with a switch contact current rating of 6 A. The integrated red LED provides clear visual status indication, operating safely at contact voltages of up to 600 V both AC and DC.

Engineered for durability, the switch functions reliably across a broad temperature range from -40°C up to 70°C, making it suitable for extreme environment applications such as food and beverage processing, automotive manufacturing, mining, and water treatment facilities. The device also offers high vibration resistance through shake-proof screw terminals, enhancing long-term operational stability.

The compact dimensions (57 mm length, 47 mm height, 36.6 mm width) enable installation flexibility while meeting stringent industry standards, including CSA C22.2 No 14, EN/IEC 60947 series, UL 508, and JIS C8201 certifications. Various connection types are available, including screw clamp, connector, Faston connector, spring terminal, or printed circuit board options, accommodating a wide range of installation requirements.

Applications span industrial machinery control panels, energy distribution, public infrastructure, and commercial buildings, ensuring the product meets diverse switching requirements with ease and reliability.

This Push Button Switch provides a single-pole single-throw (SPST) contact configuration. Equipped with a red LED indicator suitable for 600 V dc and 600 V ac contact voltages. It is suitable for operation in temperatures ranging from -40°C to 70°C.

Constructed with a screw terminal type for secure electrical connections. Designed for high vibration resistance with shake-proof terminal screws. The compact dimensions include 57 mm length, 47 mm height, and 36.6 mm width.

Complies with relevant standards including CSA, EN/IEC, UL, and JIS certifications.
