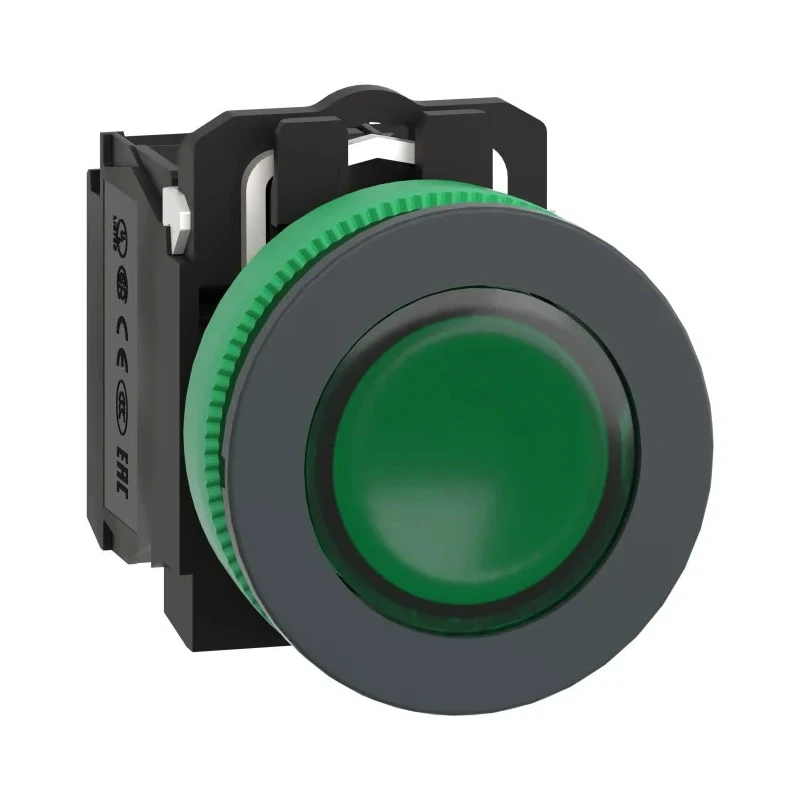

Schneider Electric Harmony Series Illuminated Push Button Switch Spring Return Panel Mount 30 mm Cutout SPDT Green XB5FW33B5

Schneider Electric XB5FW33B5 Harmony Series Illuminated Push Button Switch is designed for panel mounting with a precise 30 mm cutout and features a spring return actuator for immediate reset after operation. Its green LED illumination and SPDT contact configuration make it ideal for control applications requiring visible on/off status indication. The flush mount design improves ergonomics and panel aesthetics, while the robust plastic bezel and fixing collar enhance durability.

This pushbutton switch is rated for 600V AC and DC contact voltage with a switch contact current capacity of 6A, ensuring reliable operation under demanding electrical loads. It features a screw clamp terminal for secure and vibration-resistant wiring connection. Operating temperature ranges from -40°C to 70°C, suitable for extreme environmental conditions.

The device holds IP66, IP67, IP69, and IP69K ingress protection ratings, making it resistant to dust, heavy water jets, and high-pressure water, ensuring longevity in harsh industrial environments. Its antimicrobial characteristics and high chemical robustness also support applications in sensitive areas such as food processing and marine industries.

Certifications to EN/IEC 60947 series, UL 508, CSA C22.2 No 14, JIS, ISO 22196:2011, and ISO 21702 endorse its quality and compliance with global standards. Optional accessories such as flush mounted blanking plugs, metal rings, protective washers, and mounting kits can be sourced separately for tailored installations.

Installation is straightforward with a cross head screwdriver for panel mounting. The switch's design minimizes vibration effects, promoting secure contacts and wiring reliability. The packaging includes one pushbutton switch unit. Its versatility suits industrial automation, machinery control panels, and other commercial electrical systems.

Flush mounted design with improved ergonomics and aesthetics. High IP ratings: IP66, IP67, IP69, and IP69K for protection against dust, water, and shocks. Rated for 600V AC/DC contact voltage and 6A switch contact current.

Spring return actuator with round green head and screw clamp terminal connection. Wide operating temperature range from -40°C to 70°C. Robust construction with antimicrobial properties and chemical resistance. Certified to EN/IEC standards, UL 508, CSA, JIS, and ISO norms.

Suitable for multiple industrial applications including food, marine, and infrastructure sectors. Includes one unit per packaging suitable for panel installation. Explore more Schneider Electric products and Push Button Switches to enhance your industrial automation and control systems.
