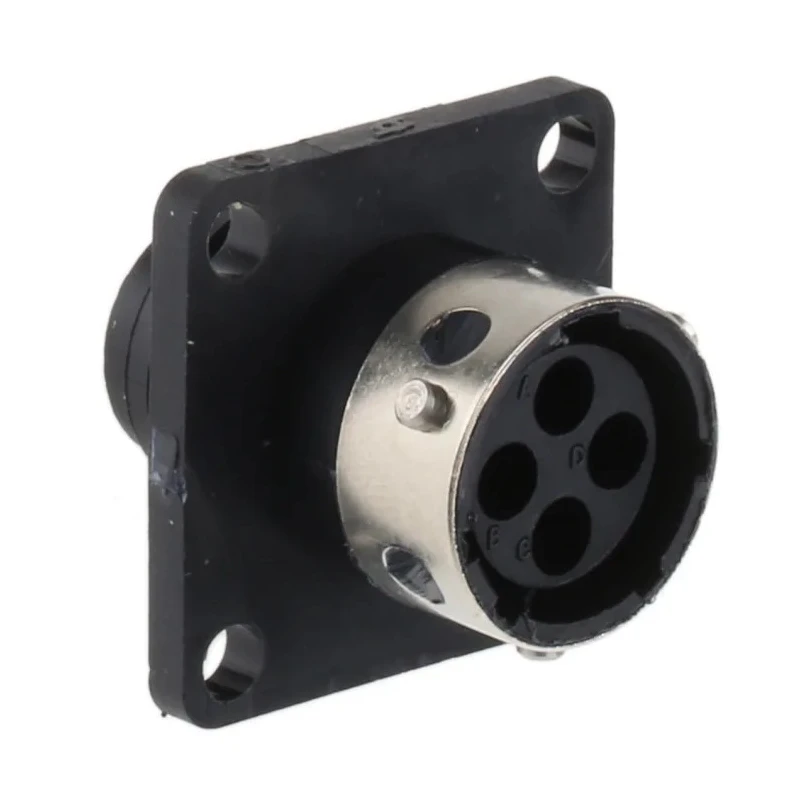

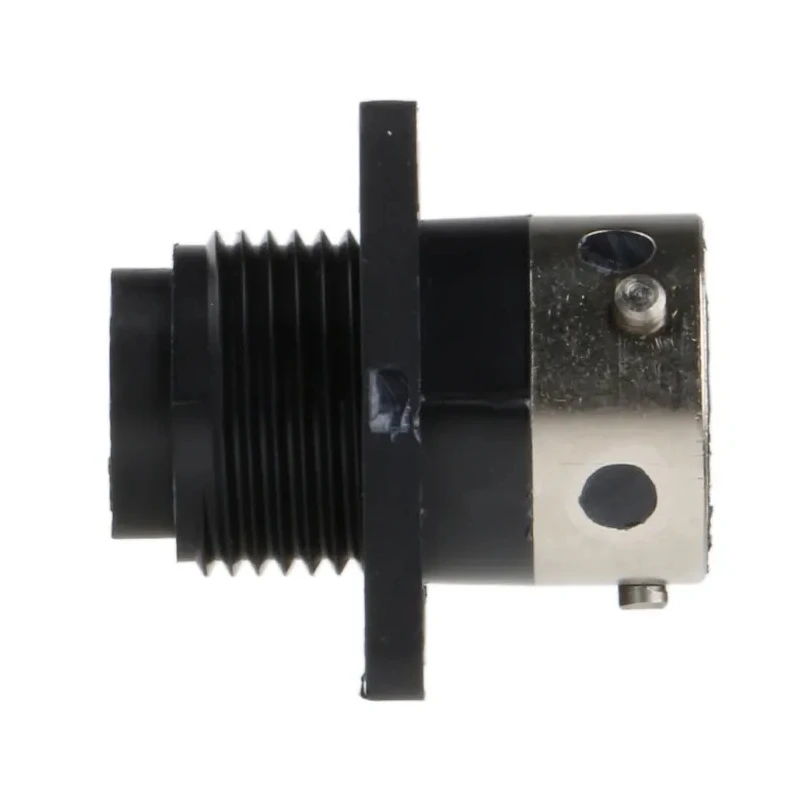

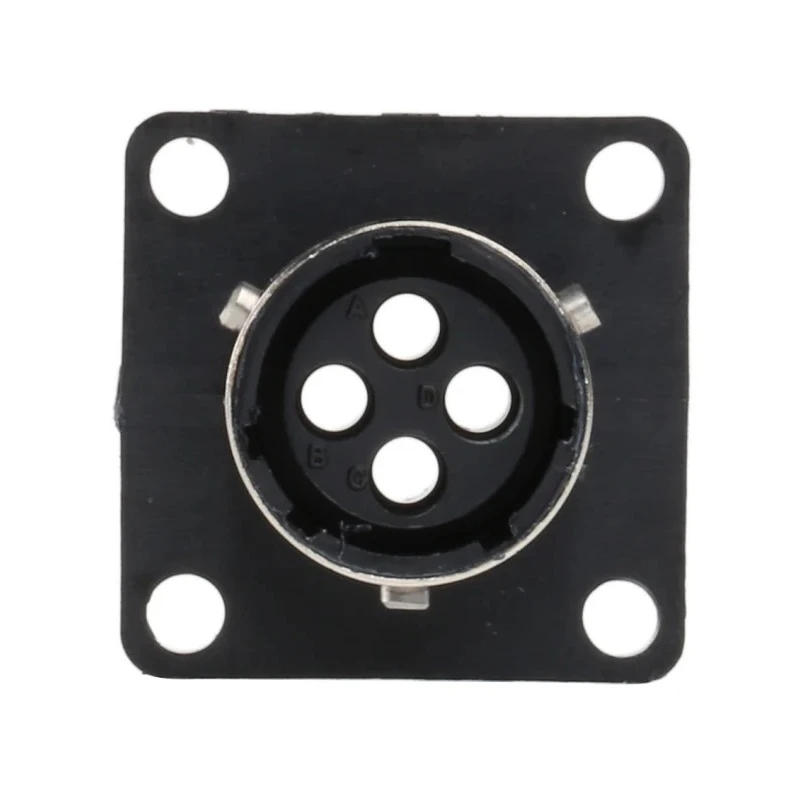

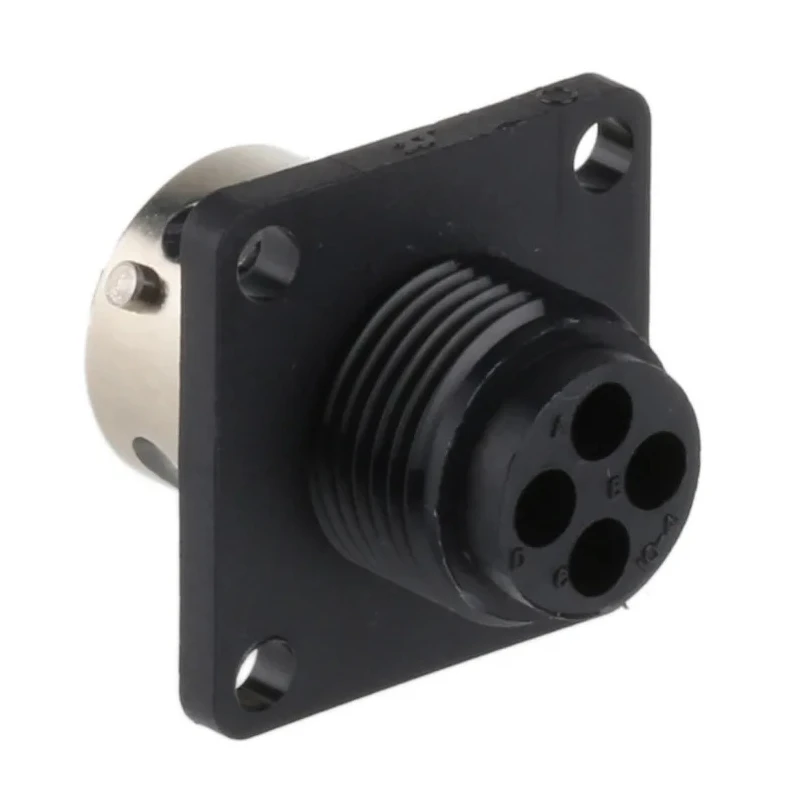

ITT Cannon Circular Connector, 4 Contacts, Panel Mount, Socket, Female, IP65, 250V, 13A, Trident TR1004RFS1NB / 192922-1190
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 13A |
| Model | TR1004RFS1NB / 192922-1190 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Contact Material | Copper Alloy |
| Series | Trident Ringlock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 4 |
| Contact Plating | Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 10 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Toughcon Connector, 4 Contacts, Panel Mount, Socket, Male, IP65, TM SeriesBrand | Toughcon |
Key Features
- This circular connector has a panel mount type with a metal bayonet coupling for secure locking.
- The socket connector features female contacts with nickel plating on copper alloy material.
- It offers an IP65 ingress protection rating when mated, suitable for harsh industrial environments.
- The housing is made from black nylon with UL94 V-0 flammability rating.
- Operating temperature ranges from -55°C to +105°C for versatile application use.
- The connector size is standard with shell size 10 and straight orientation.
- It uses crimp termination type compatible with T2P and T3P crimp contacts for easy assembly.
- Ideal for industrial automation, robotic systems, instrumentation, and process control applications.
Product Description
ITT Cannon TR1004RFS1NB / 192922-1190 is a high-performance circular connector designed for industrial use, featuring 4 contacts with a panel mount, socket female configuration. This connector operates at 250V and carries a current rating of 13A, ensuring reliable power connections in demanding environments.
The connector belongs to the Trident Ringlock series, known for its rugged metal bayonet locking mechanism that allows mating and unmating with a simple quarter turn. Its housings are constructed of black nylon rated at UL94 V-0 for strong resistance against fire and physical stress.
It has an ingress protection rating of IP65 when mated, providing excellent resistance to dust and water. The operating temperature range from -55°C up to +105°C makes it adaptable to harsh industrial conditions.
Designed for industrial automation, robotic systems, printing equipment, and process control, this connector supports rapid maintenance with fully interchangeable contacts that can be removed or replaced onsite.
The standard size 10 shell and straight orientation provide compatibility with various industrial interfaces. It uses crimp termination compatible with T2P two-piece and T3P three-piece contacts for efficient assembly and repair.
Panel mount type with durable metal bayonet coupling. Nickel-plated copper alloy female contacts. IP65 rated for protection against dust and water ingress. Black nylon UL94 V-0 shell for flame resistance. Wide temperature range from -55°C to 105°C.
Standard connector size 10 with straight orientation. Crimp termination type compatible with T2P and T3P crimp contacts. Ideal for industrial automation, robotics, and instrumentation applications.
This connector is manufactured in Hungary and meets the high durability standards required for industrial environments. Explore more industrial connectors and related components from ITT Cannon and other leading brands on EnvMart.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 250V.
This model has a current rating of 13A.
It supports panel mount installation.
The connector has an IP65 ingress protection rating when mated, providing resistance to dust and water.
The housing is made from black nylon with a UL94 V-0 flammability rating, and the contacts are nickel-plated copper alloy.
The operating temperature range is from -55°C to +105°C.
It features female contacts with nickel plating on copper alloy material.
It uses crimp termination type compatible with T2P and T3P crimp contacts for easy assembly.
The connector has a standard shell size of 10.
This connector belongs to the Trident Ringlock series.
It is ideal for industrial automation, robotic systems, instrumentation, and process control applications.
This connector is manufactured in Hungary.
