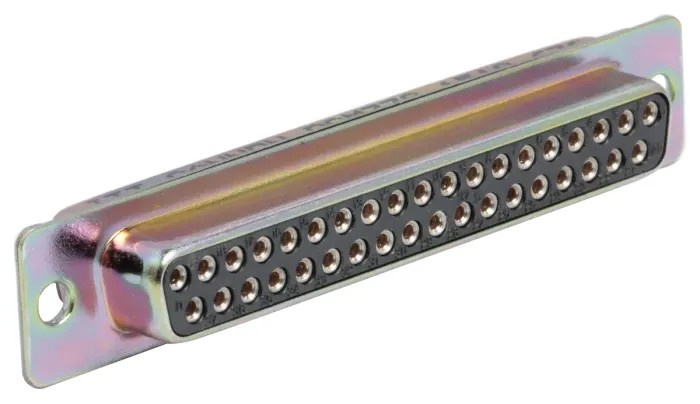

ITT Cannon 37 Way 2.84 mm Pitch Panel Mount Female D-Sub Connector D3HC-MP-M

Free Delivery in India | Lowest Global Shipping Charges

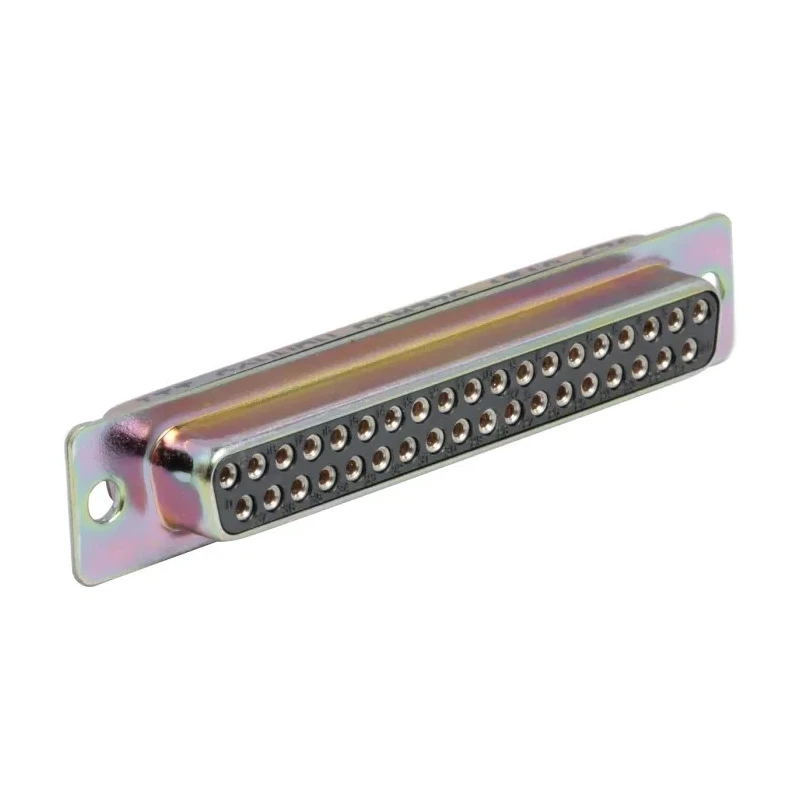

ITT Cannon 37 Way 2.84 mm Pitch Panel Mount Female D-Sub Connector D3HC-MP-M

Name: ITT Cannon 37 Way 2.84 mm Pitch Panel Mount Female D-Sub Connector D3HC-MP-M
Brand: ITT CANNON
SKU: 137843



Category D-Sub Connectors Brand ITT CANNON Condition New

Specifications

Country of Origin	India
Brand	ITT Cannon
Current	7.5A
Model	D3HC-MP-M
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Copper Alloy
Series	D3HC-MP-M
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.84mm
Contact Plating	Gold over Nickel
Number of Contacts	37
Contact Gender	Female
Connector Gender	Female
Contact Size	20
Connector Type D	D-Sub
D-Sub Shell Size	C

Key Features

This connector features 37 contacts for reliable signal transmission.
It supports a maximum current rating of 7.5 A for robust power handling.
The connector is panel mount type with a female gender providing easy installation.
Constructed with a steel housing for durability and high temperature resistance up to 125°C.
Contact pins are made from copper alloy, plated with gold over nickel for corrosion resistance and low contact resistance.
Designed with a pitch of 2.84 mm and size C D-sub shell.
Termination is solder type, suitable for secure soldered connections.
Operates in a wide temperature range from -55°C to 125°C ensuring reliable performance in harsh environments.

Product Description

ITT Cannon D3HC-MP-M is a 37 Way Panel Mount Female D-Sub Connector engineered for high reliability in military, industrial, and commercial applications. It operates with a 2.84 mm pitch and features a size C D-sub shell suitable for robust and precise connections.

The connector is constructed with a durable steel housing and uses copper alloy contact material plated with gold over nickel to ensure excellent conductivity and corrosion resistance. It is designed to handle up to 7.5 amperes of current and sustain operating temperatures between -55°C and 125°C, making it ideal for harsh environments.

With precise 20 size contacts and solder termination type, this connector offers secure and long-lasting connections. The product meets high standards of moisture resistance and mechanical reliability, compatible with MIL 24308 connectors. It is available in cable and panel mount versions as well as original D variants in straight and 90° PCB configurations.

This panel mount D-sub connector is widely used in industrial machinery, military equipment, commercial electronic devices, and computer interfacing systems where dependable signal and power transmission is critical.

37 contacts ensuring sufficient connectivity points. 7.5 A current rating supports demanding electrical applications. Steel housing provides mechanical strength and environmental protection. Gold over nickel plated copper alloy contacts guarantee durability and low resistance.

Wide operating temperature range from -55°C to 125°C. Solder termination ensures reliable connectivity. Compatible with MIL 24308 standards and suitable for various mounting configurations. Explore the category for more D-Sub Connectors and related power connectors at EnvMart to find the ideal components for your industrial or commercial projects.
