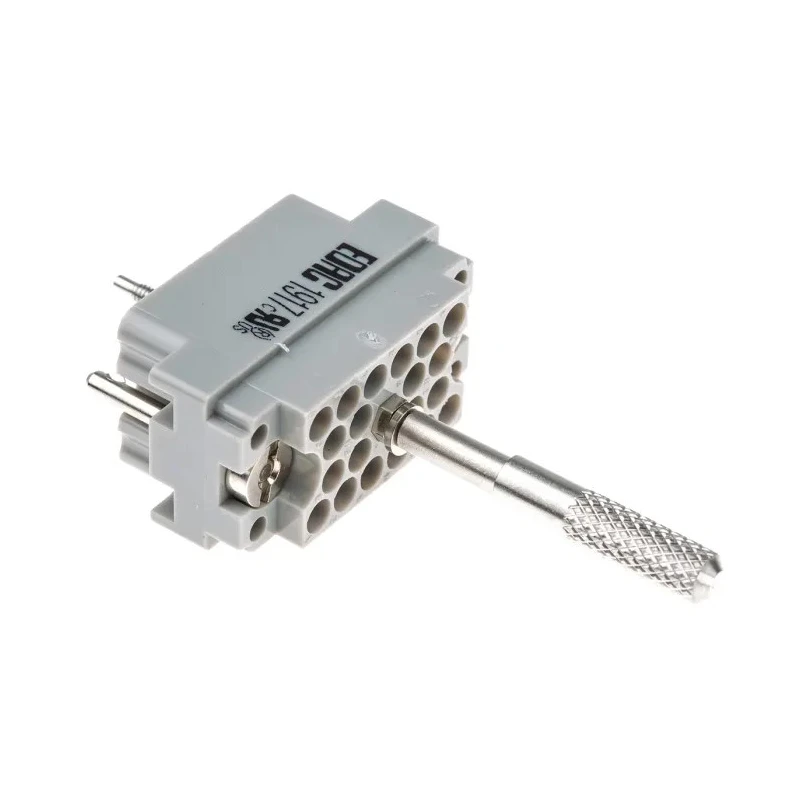

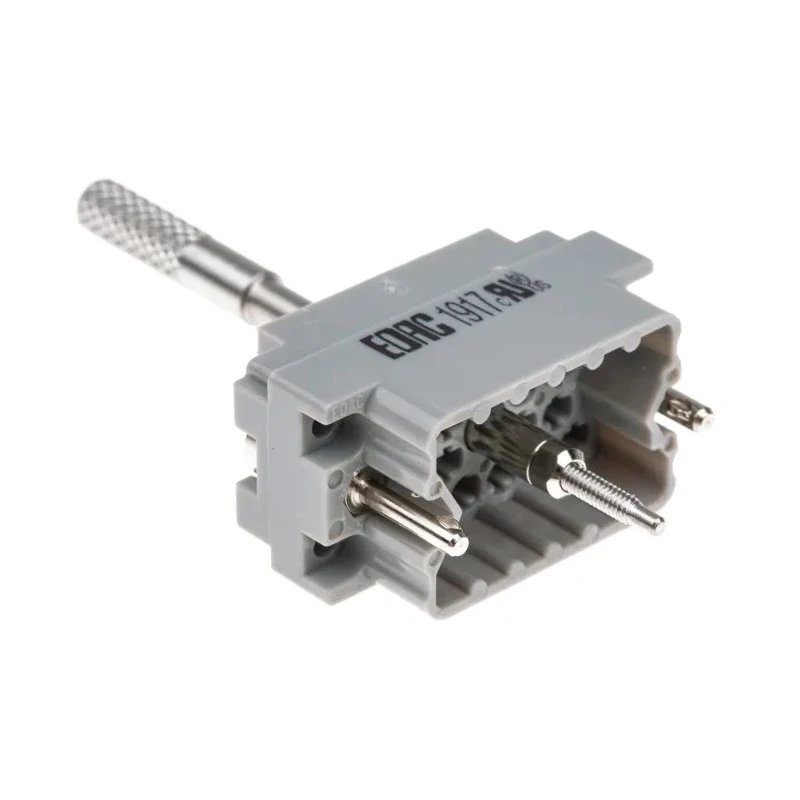

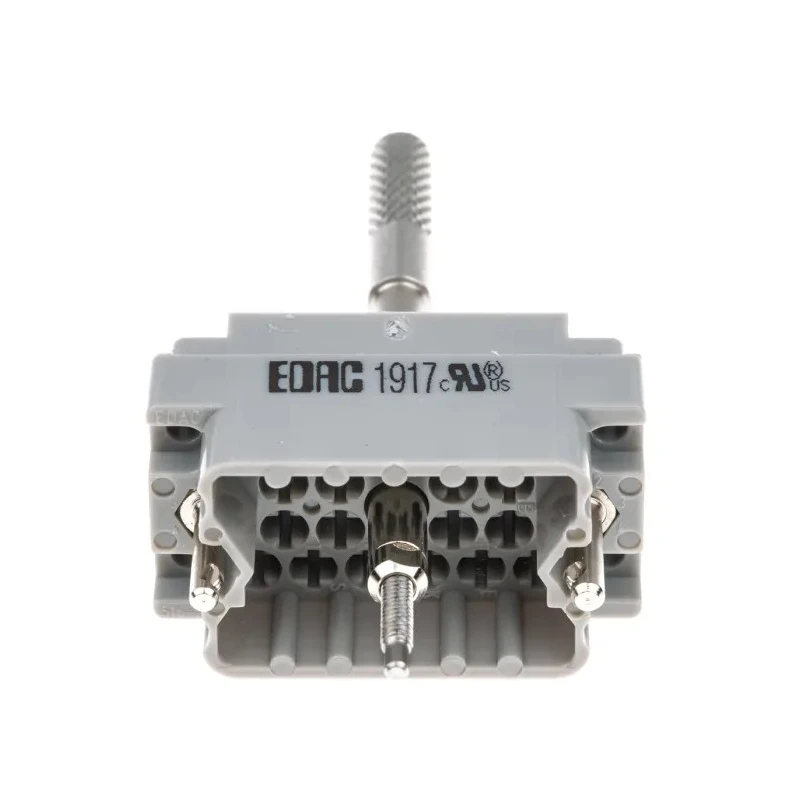

EDAC 20 Way Straight D-Sub Connector Male with Gold over Nickel Phosphor Bronze Contacts 516-020-000-301

With a current rating of 8.5A and operating voltage of 2000Vrms, this connector is suitable for industrial, agricultural, automotive, and manufacturing applications where secure, reliable electrical connections are critical.

The connector incorporates 20 male contacts made of phosphor bronze, plated with gold over nickel, which ensures excellent conductivity, corrosion resistance, and long service life. The polycarbonate housing provides robust insulation and mechanical protection to the contacts while maintaining lightweight and durability.

Operating temperature ranges from -65°C to a maximum of 125°C, making it suitable for harsh environmental conditions such as outdoor installations and heavy machinery. The crimp termination type facilitates easy and secure cable attachments, improving performance and reliability.

Featuring a hermaphroditic metal-to-metal contact design, the connector allows the plugs or receptacles to form fixed or free halves, granting designers flexibility in system integration. This design is popular in high-density electrical systems.

The EDAC 516 series connectors comply with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards to minimize electrostatic discharge risks and ensure high safety and reliability levels.

Common applications include audio broadcast systems, railway signaling equipment, oil and gas industry control systems, general industrial controls, automotive test, and control systems, highlighting its versatility across multiple sectors requiring power connectors with exceptional performance standards.

Features 20 contacts made of phosphor bronze with gold over nickel plating for optimal conductivity and corrosion resistance. The connector offers a current rating of 8.5A suitable for power transmission. Constructed with a polycarbonate housing to ensure durability and electrical insulation.

Operates effectively within a temperature range from -65°C to 125°C, supporting broad environmental conditions. Includes crimp termination type for a secure and reliable connection to cables. Designed with a male straight orientation for compatibility in various industrial settings.

Meets ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards, ensuring electrostatic discharge protection. Phosphor bronze contacts provide a hermaphroditic metal-to-metal contact design for flexibility in connector pairing.

Ideal for use in audio broadcast, railway signaling, oil and gas industry control systems, and automotive control and test systems. Connector series 516 offers versatile applications requiring heavy-duty power connectors.
