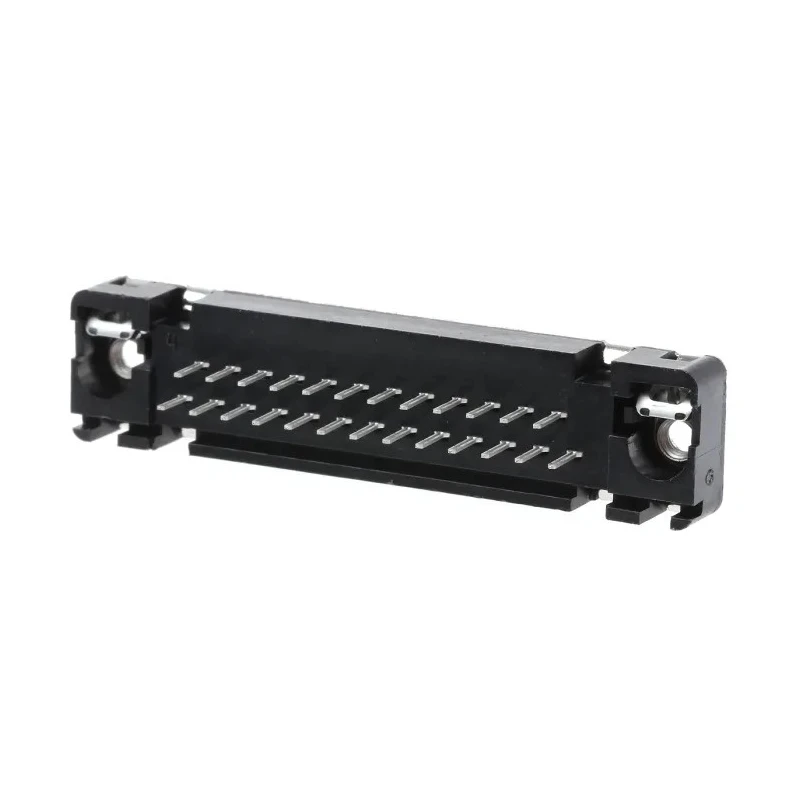

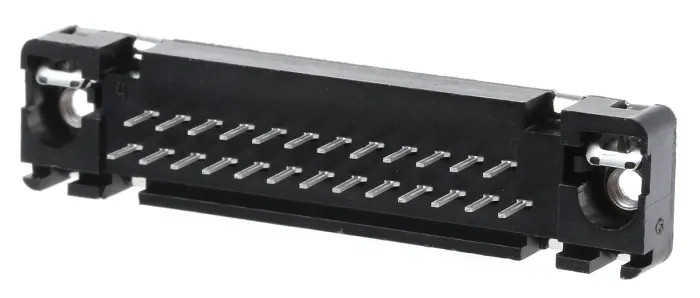

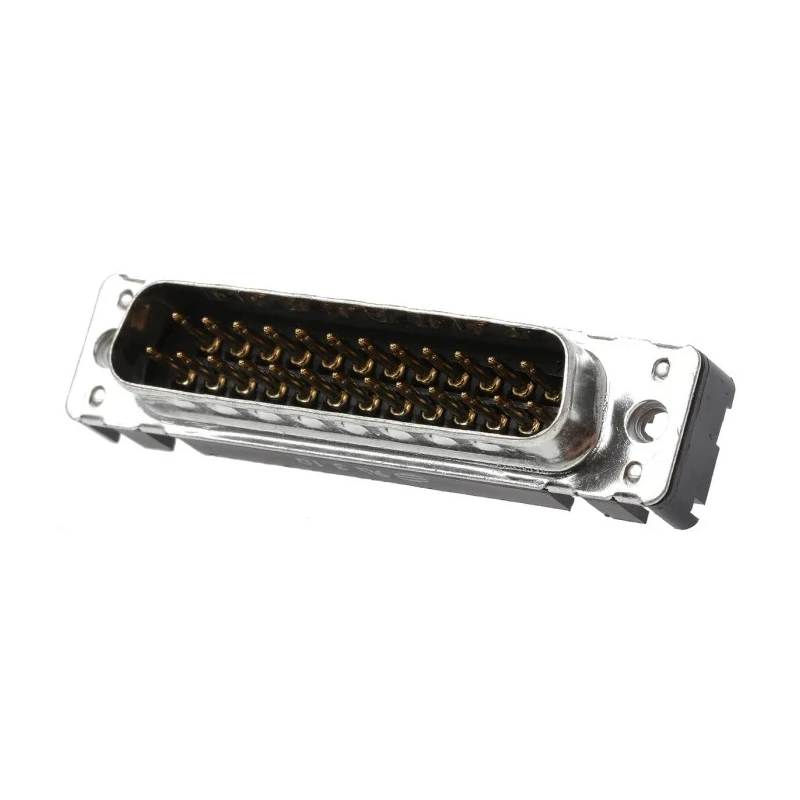

HARTING D-Sub 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male 09653217701

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male 09653217701

Name: HARTING D-Sub 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male 09653217701
Brand: HARTING
SKU: 148054
Price: 7.44 USD
Availability: InStock



Category D-Sub Connectors Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	6.5A
Mount Type	Through Hole
Housing Material	Metal
Contact Material	Copper Alloy
Series	D-Sub
Mounting Hardware	M3 Threaded Insert
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.76mm
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Connector Type D	Standard
D-Sub Shell Size	D

Key Features

The connector features 25 contacts capable of carrying up to 6.5A current.
It has a metal housing with M3 threaded inserts for mounting.
It operates reliably between -55°C and 125°C temperature range.
The contact material is copper alloy ensuring electrical conductivity and durability.
It is a solder termination type with a standard D-Sub shell size D.
The connector supports a voltage rating of 1kV for safe operation.
It is compliant with military and industry standards MIL-C-24308, DIN 41652, and CECC 75301-802.

Product Description

HARTING 09653217701 D-Sub 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male is a robust electronic component designed for reliable PCB connections in industrial and electronic applications.

This connector features 25 contacts arranged in a straight orientation with a 2.76 mm pitch, optimized for standard D-Sub shell size D. Its male contact gender with copper alloy contacts provides excellent conductivity. The metal housing with M3 threaded inserts facilitates secure and stable mounting through holes on printed circuit boards.

Rated for currents up to 6.5A and a voltage of 1kV, this connector ensures safe power handling. It operates effectively within a temperature range of -55°C to 125°C, making it suitable for harsh industrial environments. The solder termination type allows for secure electrical connections during assembly.

Designed in compliance with MIL-C-24308, DIN 41652, and CECC 75301-802 standards, it meets stringent quality and reliability criteria. This product is ideal for use in industrial electronics, power connectors, automation equipment, control panels, and devices requiring secure multi-pin connections.

The connector provides 25 contact points supporting moderate current loads. Its sturdy metal housing ensures mechanical protection and electromagnetic shielding. The M3 threaded inserts allow easy and secure mounting to PCBs.

Operating temperature range suits applications with extreme temperature variations. The solder termination ensures long-lasting contact integrity in manufacturing. Industry standard compliance guarantees compatibility and performance.

Suitable for industrial, manufacturing, and electronic system integration use cases. This product is part of the HARTING D-Sub series connectors, recognized for quality and reliability in power and signal transmission. Explore the Electronics & Electricals category at EnvMart for more connectors and electronic components tailored for your application needs.
