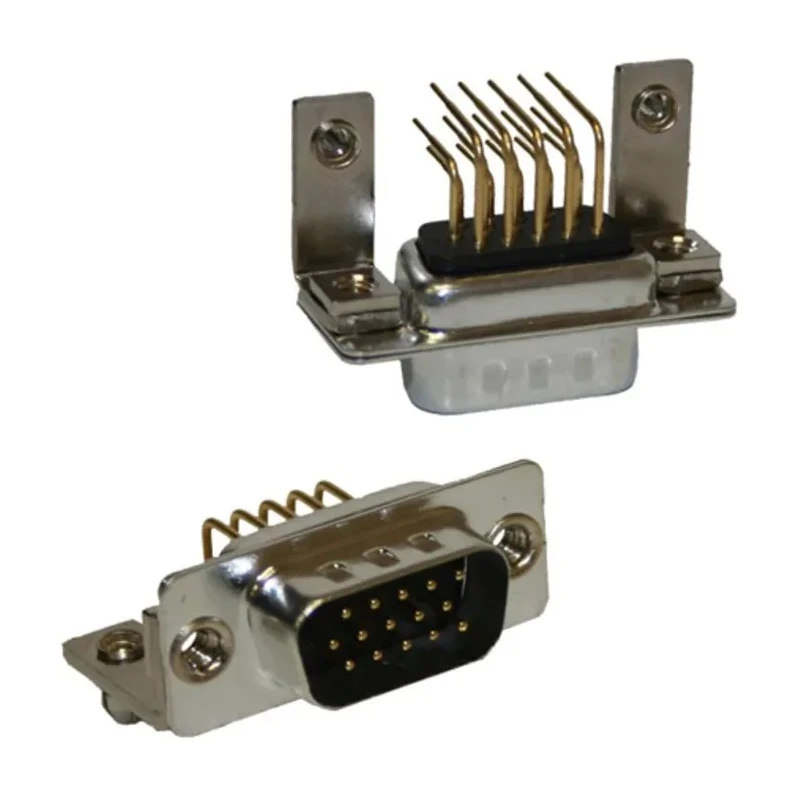

Norcomp SEAL-D 15 Way Right Angle 2.286 mm Pitch High Density D-Sub Connector with 4 to 40 Insert Male 781-M15-113R141

Norcomp 781-M15-113R141 SEAL-D 15 Way Right Angle High Density D-Sub Connector with 2.286 mm pitch is engineered for reliable, sealed electrical connections in harsh environments. Its steel housing and brass contacts with gold plating ensure durability and corrosion resistance. The connector supports a current rating of 5A and voltage up to 1000V, making it suitable for demanding industrial and electronic applications.

This right angle D-sub connector features mounting hardware with 4 to 40 inserts, including PCB board locks and locator plates, ensuring secure retention on printed circuit boards. It meets IEC-529 IP67 standards for ingress protection, preventing dust and water entry, ideal for outdoor or industrial environments subject to washdown or submersion.

The SEAL-D series maintains the standard D-sub connector profile, simplifying upgrades to IP66/67 rated designs without needing major enclosure redesigns. It is optimal for hand-held computers, industrial and medical equipment, remote sensors, transmitters, and commercial boating electronics.

Reliable screw machined contacts provide consistent electrical performance. Nickel-plated steel shell improves electromagnetic shielding and grounding. Wide operating temperature range from -55°C to 105°C ensures versatility.

Gold-plated brass contacts enhance conductivity and prevent oxidation. Compact 2.286 mm pitch supports high-density connection layouts. Right angle design with boardlock simplifies PCB assembly and retention.

Panel sealing kits are available separately to enhance deployment flexibility. The connector series is well suited for environments requiring secure, sealed, and high-performance D-sub connections.
