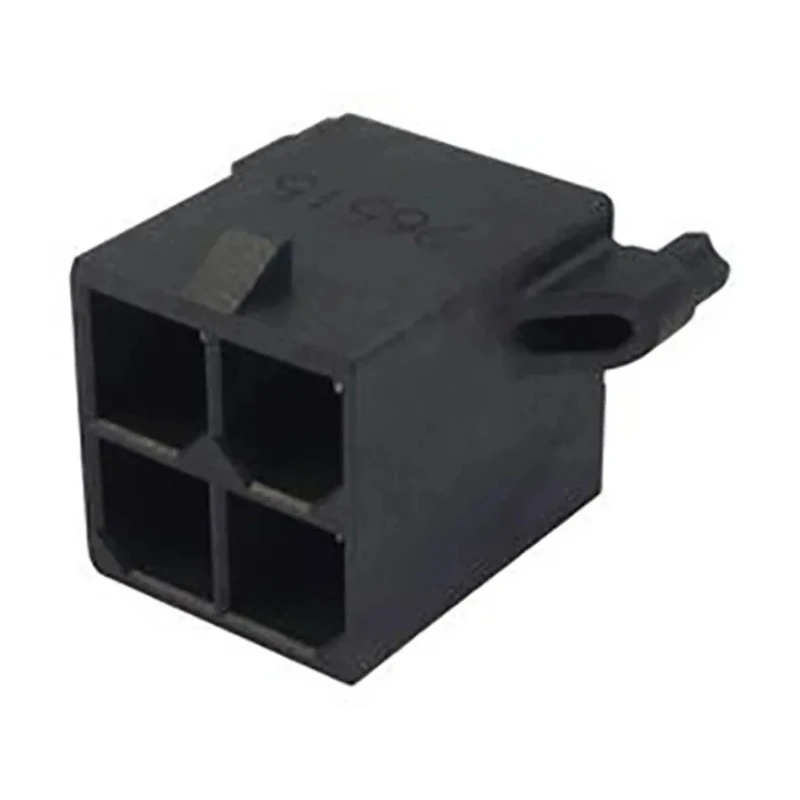

Molex Mega-Fit Series PCB Header 4 Contact, 5.7 mm Pitch, 2 Row, Straight Through Hole, Shrouded 768290004

Free Delivery in India | Lowest Global Shipping Charges

Molex Mega-Fit Series PCB Header 4 Contact, 5.7 mm Pitch, 2 Row, Straight Through Hole, Shrouded 768290004

Name: Molex Mega-Fit Series PCB Header 4 Contact, 5.7 mm Pitch, 2 Row, Straight Through Hole, Shrouded 768290004
Brand: Molex
SKU: 211471
Price: 2.14 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Straight
Current	23A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	Mega-Fit
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	5.7mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.73mm
Molex 76829 Series PCB Header, 4 Contact(s), 5.7 mm Pitch, 2 RowBrand	Molex

Key Features

This header provides a maximum current rating of 23A for high power applications.
The housing is made from Liquid Crystal Polymer for enhanced durability and thermal stability.
Its dual-row configuration with 2 rows and 4 contacts suits compact PCB layouts.
Operating temperature ranges from -40°C to 105°C, ensuring performance in harsh environments.
Contact material is copper alloy plated with 1.52μm tin to provide corrosion resistance and reliable soldering.
Designed with straight orientation and 3.73mm tail pin length for standard through-hole mounting.
Supports a voltage rating of 600V for versatile application usage.
No certifications or approvals are specified for this header.

Product Description

Molex 768290004 Mega-Fit Series PCB Header is a high-quality electronic component designed for wire-to-board applications requiring secure and efficient connectivity. This 4-contact, 2-row, straight through hole header uses a 5.7 mm pitch and features a shrouded design to prevent accidental disconnection and enhance safety during operation.

The housing is constructed from Liquid Crystal Polymer, offering excellent mechanical strength and thermal stability suitable for demanding industrial, electronic manufacturing, and commercial PCB assembly applications. The copper alloy contacts with 1.52μm tin plating ensure excellent electrical conductivity and long-lasting reliable solder joints.

Rated for 23 amperes current and 600 volts, this header supports moderate to high power loads needed in various electronic circuits and power distribution boards. It operates reliably within a temperature range from -40°C up to 105°C, making it suitable for challenging environments including industrial machinery and consumer electronics.

The 3.73 mm tail pin length and through-hole mount facilitate easy assembly and soldering onto printed circuit boards, while the dual row 2-row configuration optimizes space usage on the board. The straight orientation and shrouded feature provide precise alignment and protection for connected wires.

This PCB Header is ideal for electronics prototyping, industrial automation, power supplies, and other applications where secure wire-to-board connection is essential. The compact design supports efficient board layouts while maintaining robust electrical performance.

The absence of specific certifications does not limit its applicability across numerous industrial and commercial uses. Molex's Mega-Fit Series is known for reliability and ease of installation, enhancing design flexibility in circuit board manufacturing.

Explore the extensive range of high-quality connectors and electronic components available on EnvMart for your industrial and commercial needs.
