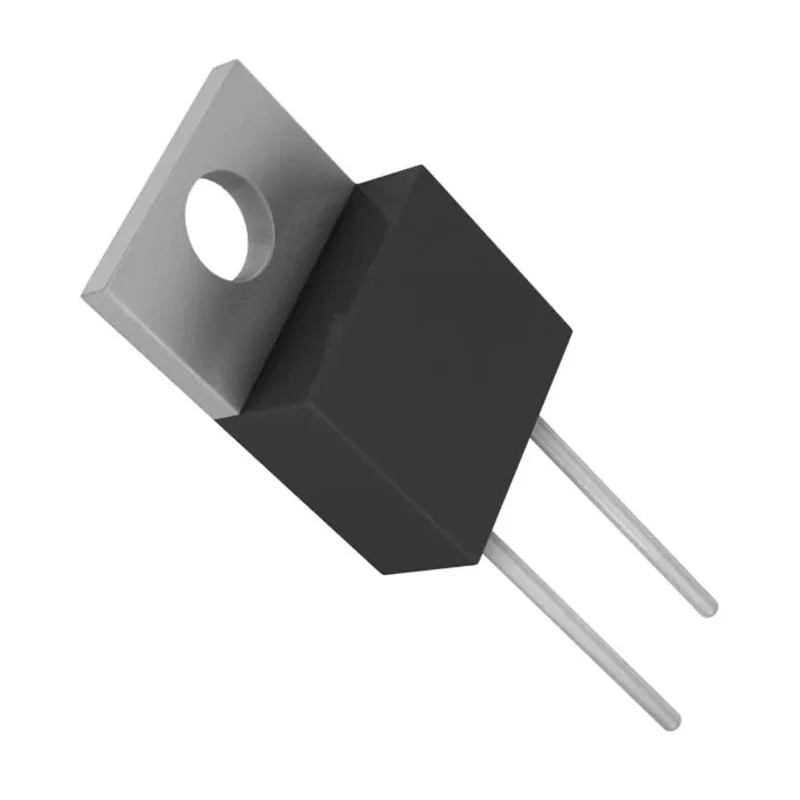

Vishay 1 kV 10 A Soft Recovery Diode Single Configuration 2-Pin Through Hole TO-220 VS-10ETF10FP-M3

Vishay VS-10ETF10FP-M3 is a high-performance soft recovery diode designed for power electronics requiring efficient switching with low forward voltage drop.

This single diode in a reliable TO-220 package supports a maximum continuous forward current of 10 A and a peak repetitive reverse voltage of 1 kV, making it ideal for robust rectification in industrial and commercial electronics.

The device features a glass passivated pellet chip junction that ensures stable operation even under severe temperature and power cycling stress, with a maximum operating junction temperature rated at 150°C.

Its short reverse recovery time of 310 ns enhances switching efficiency, minimizing losses in applications such as power supplies, inverters, and motor drives.

Compact physical dimensions - 10.51 mm length, 4.65 mm width, 15.25 mm height - with a 2-pin through-hole mount style facilitate straightforward PCB integration and thermal management.

The soft recovery characteristic reduces electromagnetic interference, optimizing performance in sensitive electronic environments. Optimized for low forward voltage drop and short reverse recovery time. Glass passivated pellet chip junction for enhanced reliability and thermal stability.

Max operating junction temperature of 150°C. Peak surge current rating of 160 A withstands transient electrical stress. Compliant with RoHS directives ensuring environmental compatibility. Suitable for use in industrial, commercial power supplies, and motor control applications.

Through-hole mount type TO-220 package simplifies installation and heat dissipation.

Choose Vishay VS-10ETF10FP-M3 for dependable, efficient rectification in demanding environments. Explore more Semiconductor Diode solutions in our Electronics & Electricals category at EnvMart.
