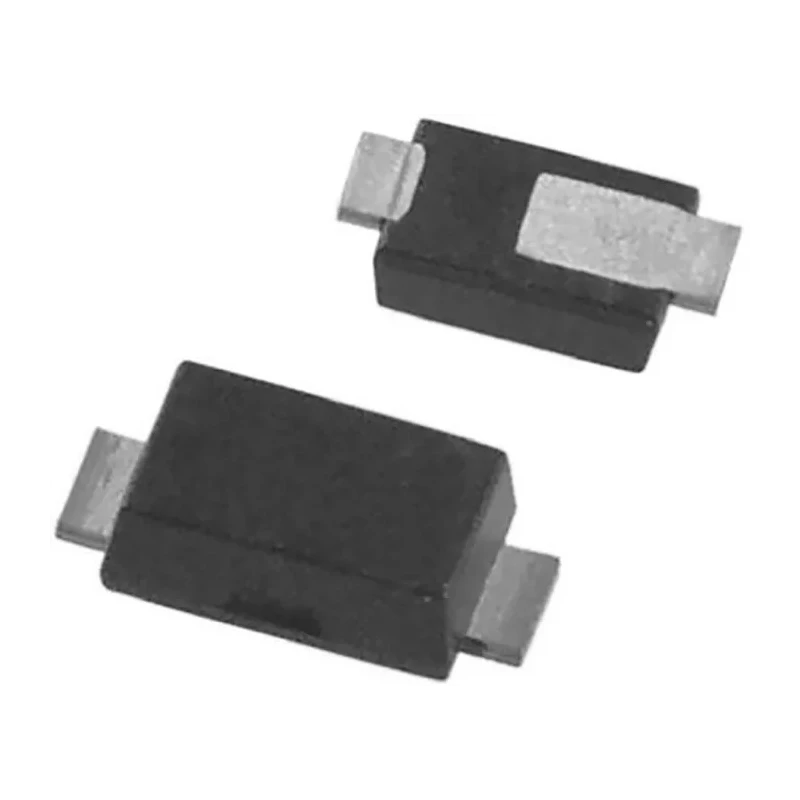

DiodesZetex 150 mA Constant Current Diode 2-Pin Surface Mount PDI123 60V AL5809-30QP1-7

DiodesZetex AL5809-30QP1-7 is a 150 mA constant current diode in a compact 2-pin surface mount PDI123 package. This semiconductor diode offers precise current regulation with ±5% accuracy, making it an ideal choice for driving high-brightness LEDs and other applications requiring stable current flow.

The diode operates efficiently over a wide temperature range from -40°C up to 150°C, providing reliable performance even in challenging environments. It supports both low-side and high-side sensing methods, allowing versatile circuit design options.

With a minimum supply voltage requirement of 2.5V and a maximum rating of 60V, it is suitable for various low to moderate voltage electronic circuits. The 150 mA current capacity ensures consistent current flow for LED drivers and similar semiconductor-based control systems.

The PDI123 surface mount package with 2 pins facilitates easy and space-saving PCB mounting, enhancing production efficiency in compact device designs.

This constant current diode series AL5809 is manufactured in China and designed to deliver linear LED driver functionality with no automotive certification, targeting general industrial, electronic components, and electronics manufacturing applications.

Key features include robust temperature tolerance, precision current regulation, standardized package type, and compatibility with typical LED driver circuitry. Provides accurate constant current with ±5% accuracy. Compact surface mount PDI123 package with 2 pins for easy PCB integration.

Operates within temperature range from -40°C to 150°C. Suitable for low-side and high-side sensing applications. Minimum supply voltage of 2.5V and maximum supply voltage of 60V. Linear LED driver functionality for high-brightness LED applications.

Maximum operating current of 150 mA for moderate current regulation tasks. Robust design without automotive certification, ideal for general electronic circuits. Manufactured in China with high quality standards.

This product is well suited for electronic design, manufacturing, and repair, especially where precise LED current management and compact component packaging are priorities. Discover a broad range of Semiconductor Diodes and related components on EnvMart to complement your projects.
