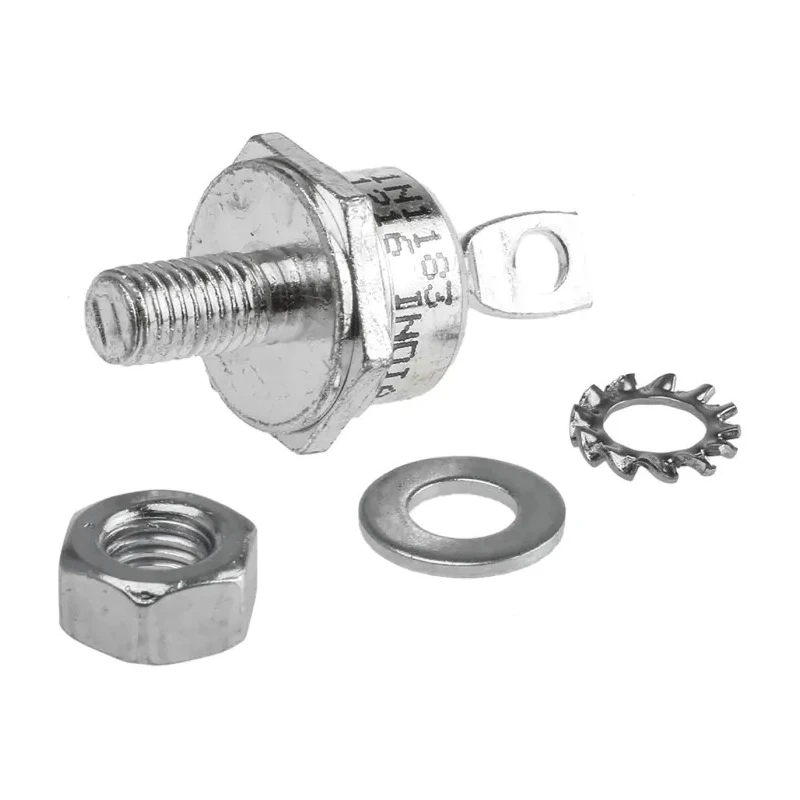

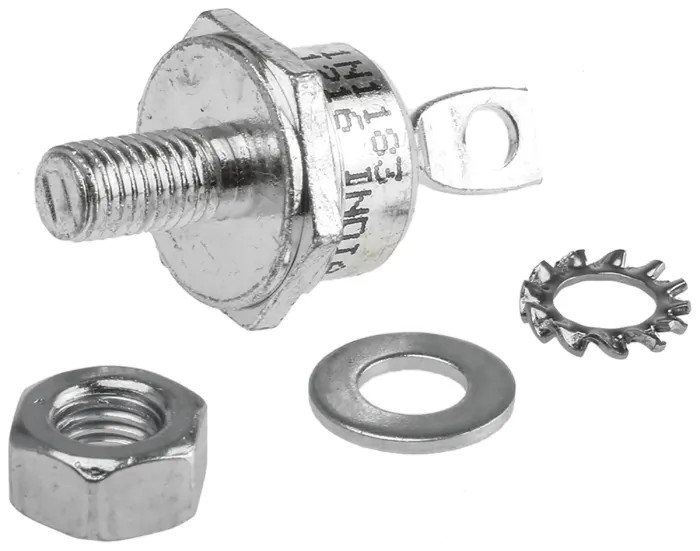

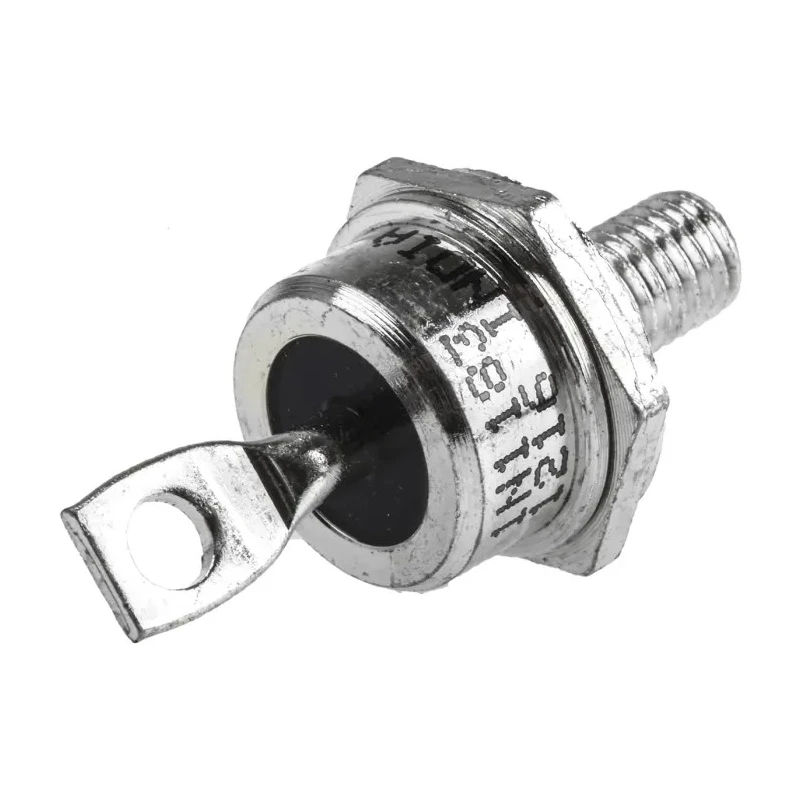

Vishay High-Efficiency Stud Mount Single Diode 1000 V 60 A DO-203AB VS-1N1183
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 14.6mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-1N1183 |
| Width | 17.35mm |
| Mount Type | Stud Mount |
| Series | VS-1N |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-203AB (DO-5) |
| Minimum Operating Temperature | 65°C |
| Standards/Approvals | Halogen Free, IEC 61249-2-21, JEDEC, JEDEC JS709A, RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Diode Configuration | Single Diode |
| Rectifier Type | Stud Version |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 860A |
| Maximum Forward Voltage Vf | 1.8V |
| Diode,Rectifier,85HF100Brand | Vishay |
| Vishay 1000V 85A, Silicon Junction Diode, 2-Pin DO-203AB 85HFL100S05Brand | Vishay |
| 85HFLR100S05Brand | Vishay |
| Vishay 50 V 40 A Diode Silicon 2-Pin DO-203ABBrand | Vishay |
Key Features
- Supports maximum continuous forward current of 60 amperes for heavy-duty use.
- Peak reverse repetitive voltage rated at 1000 volts ensures reliable blocking capability.
- Stud mount packaging type DO-203AB (DO-5) with 2-pin configuration for stable mounting.
- Operating temperature range from -65°C to 200°C suits industrial environments.
- Peak non-repetitive forward surge current up to 860 amperes for transient load handling.
- Maximum forward voltage drop of 1.8 volts reduces power loss and improves efficiency.
- Single diode configuration designed for standard recovery rectification tasks.
- Compliant with Halogen Free, IEC 61249-2-21, JEDEC, RoHS standards for safety and environmental care.
Product Description
Vishay VS-1N1183 is a high-performance stud mount power diode designed for industrial and electronic applications that require efficient rectification and high durability. This single diode is encapsulated in a DO-203AB (DO-5) package with two pins, suited for stable and secure mounting in power assemblies.
Rated with a maximum continuous forward current of 60 amperes, it handles demanding electrical loads with ease. The diode provides a peak reverse repetitive voltage of 1000 volts, ensuring excellent blocking capability against reverse voltage spikes typical in power circuits.
The operational temperature range from -65°C to 200°C suits it for harsh industrial environments, including electronics manufacturing, power supply units, and heavy machinery controls. Its maximum forward voltage drop of 1.8 volts reduces power dissipation, improving overall system efficiency.
With the capability of handling peak non-repetitive forward surge currents up to 860 amperes, this diode is robust against transient load conditions encountered during switching or fault scenarios. The single diode configuration is ideal for standard recovery rectification, suitable in power electronic circuits requiring reliable diode operation.
This product complies with Halogen Free, IEC 61249-2-21, JEDEC JS709A, and RoHS standards, assuring safety, environmental responsibility, and industry acceptability. Supports a maximum continuous forward current of 60 A.
Peak reverse repetitive voltage rated at 1000 V. Stud mount DO-203AB package type with 2-pin design. High surge current capacity up to 860 A. Wide operating temperature range of -65°C to 200°C. Low forward voltage drop of 1.8 V.
Dimensions suitable for precision installations. Meets major international safety and environmental standards.
This Vishay stud mount diode is widely used in semiconductor applications, industrial rectification, power management, and electronic equipment manufacturing facilities. Its sturdy design and compliance with international norms make it a reliable choice for professionals.
Explore more Vishay semiconductor components and power diodes in the EnvMart Electronics & Electricals category to find the right fit for your technical requirements and industrial projects.
Explore more products in our Semiconductor Diode category.
