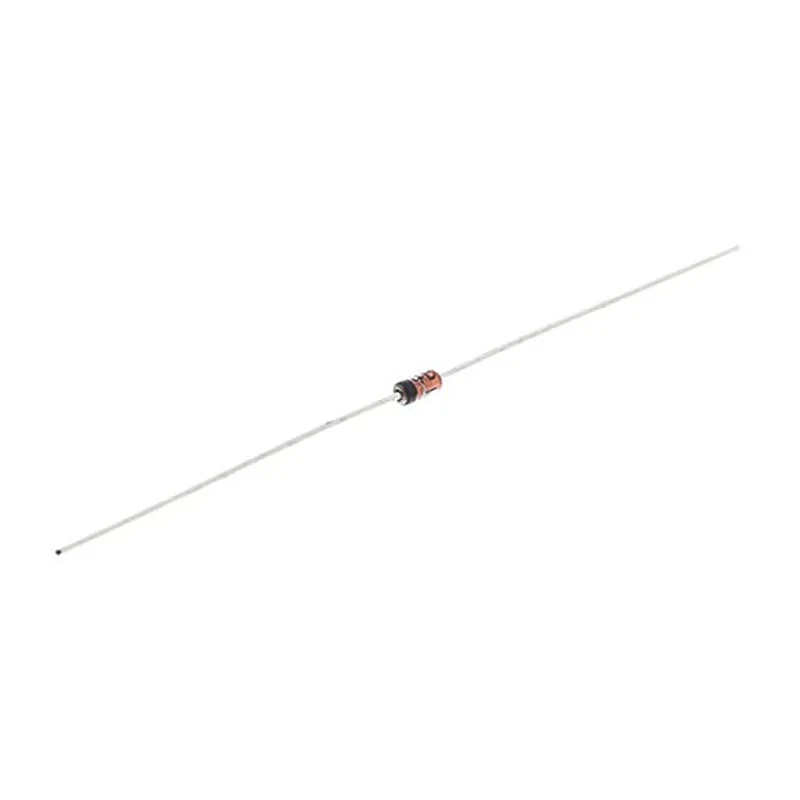

onsemi Small Signal Diode 100 V 300 mA Through Hole DO-35 1N914B

onsemi 1N914B Small Signal Diode in a DO-35 through-hole package rated for 100 V peak repetitive reverse voltage and 300 mA maximum continuous forward current is engineered for durable and efficient electronic applications. The diode features a single configuration with a low forward voltage drop of 1 V and a peak reverse recovery time of only 4 ns allowing for fast switching operation, making it suitable for signal processing tasks in circuits requiring speed and reliability.

This diode supports a wide operating temperature range from -65°C to 175°C, enhancing its usability in various industrial, commercial, and consumer electronics environments. Its low peak reverse current of 5 μA reduces leakage currents, enhancing power efficiency in circuits. The robust DO-35 metal glass package provides mechanical protection and reliability for through-hole mounting on PCBs.

Typical applications include signal switching, rectification, and protection circuits in electronic devices. The diode's peak non-repetitive forward surge current of 4 A offers protection during transient load conditions, safeguarding other components. Its compact size with length 4.56 mm and diameter 1.91 mm enables integration into space-constrained PCBs.

Manufactured in China, this new onsemi diode assures quality and performance for high reliability electronic designs. The product meets general semiconductor diode standards though no specific certifications are declared.

Compact DO-35 metal glass package suitable for low power signals. Maximum continuous forward current of 300 mA ensures reliable performance. Peak repetitive reverse voltage rated at 100 V for voltage protection. Fast switching with peak reverse recovery time of 4 ns enhancing circuit speed.

Operates within temperature range of -65°C to 175°C. Single diode configuration with two pins for simple integration into circuits. Maximum forward voltage of 1 V reduces power loss. Low peak reverse current of 5 μA improves efficiency and reduces leakage.

Peak non-repetitive forward surge current of 4 A supports transient conditions. Dimensions approx. 4.56 mm length and 1.91 mm diameter for compact footprint. Explore more Semiconductor Diodes and electronic components on EnvMart for your industrial and electronic design needs.
