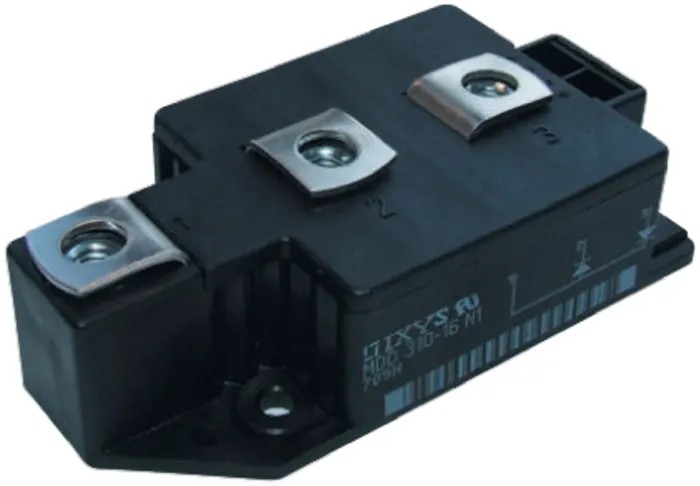

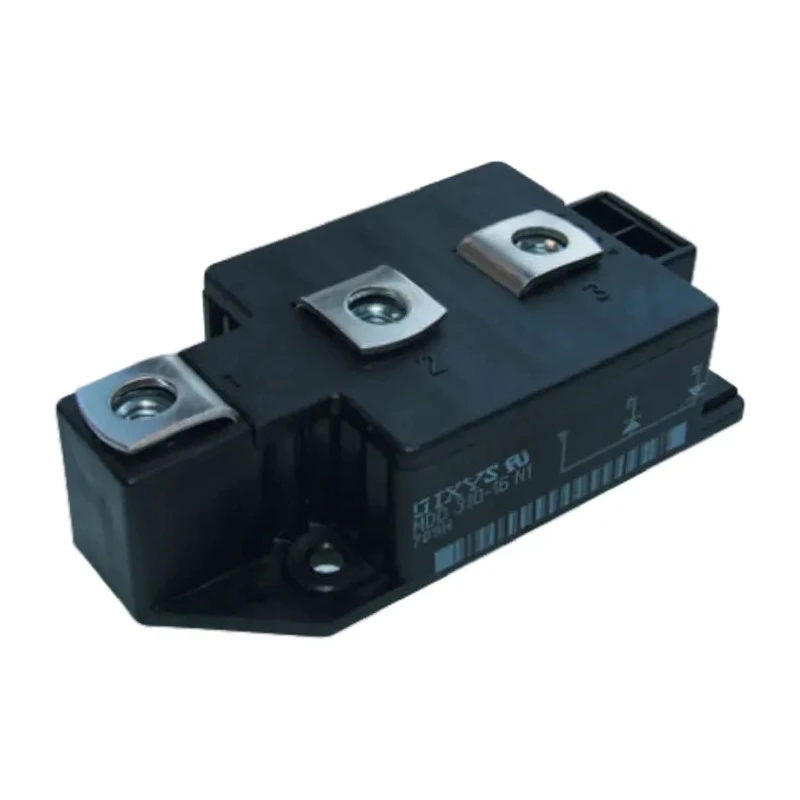

IXYS General Purpose 1600 V 270 A Diode Panel Mount 3-Pin Y1-CU MDD255-16N1

Free Delivery in India | Lowest Global Shipping Charges

IXYS General Purpose 1600 V 270 A Diode Panel Mount 3-Pin Y1-CU MDD255-16N1

Name: IXYS General Purpose 1600 V 270 A Diode Panel Mount 3-Pin Y1-CU MDD255-16N1
Brand: IXYS
SKU: 148301
Price: 231.41 USD
Availability: InStock



Category Semiconductor Diode Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	49mm
Length	115mm
Model	MDD255-16N1
Width	50mm
Mount Type	Panel
Series	MDD255
Maximum Operating Temperature	150°C
Package Type	Y1-CU
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Continuous Forward Current If	270A
Peak Reverse Repetitive Voltage Vrrm	1600V
Diode Configuration	Series
Rectifier Type	General Purpose
Peak Reverse Current Ir	30mA
Peak Non-Repetitive Forward Surge Current Ifsm	10.6kA
Maximum Forward Voltage Vf	1.4V
Eupec 1200V 206A, Dual Silicon Junction Diode, 3-Pin DD260N12KBrand	EUPEC
Vishay 1600 V 320 A Diode Recovery 3-Pin MAGN-A-PAK VS-VSKD320-16PBFBrand	Vishay

Key Features

Supports a maximum continuous forward current of 270 A.
Peak reverse repetitive voltage of 1600 V for reliable operation.
Maximum forward voltage drop is 1.4 V ensuring efficiency.
Operates in temperature range from -40°C to 150°C safely.
Designed with a 3-pin Y1-CU panel mount package configuration.
Peak non-repetitive forward surge current capability of 10.6 kA.
Pin count is 3 for appropriate electrical connection.

Product Description

IXYS MDD255-16N1 is a general purpose Semiconductor Diode designed for high-performance power applications. It supports a maximum continuous forward current of 270 A and a peak reverse repetitive voltage of 1600 V, making it suitable for robust power rectification tasks. The diode comes in a Y1-CU package type with a 3-pin configuration, optimized for panel mounting configurations.

This diode withstands operating temperatures from -40°C up to 150°C, ensuring stable operation under demanding environmental conditions. Its maximum forward voltage drop is 1.4 V, aiding in reduced power losses during conduction. The high peak non-repetitive forward surge current rating of 10.6 kA allows for durable performance under transient load conditions.

With precise dimensions of 115 mm in length, 50 mm in width, and 49 mm in height, the module fits compact setups efficiently. The peak reverse current is low at 30 mA, further promoting reliable rectifier performance.

This IXYS diode module is ideal for industrial, power electronics, and electrical engineering applications, including power supply rectification and switching equipment. It is a UL recognized component, ensuring compliance with quality and safety standards.

Supports a maximum continuous forward current of 270 A. Peak reverse repetitive voltage of 1600 V. Maximum forward voltage of 1.4 V to minimize power loss. Operates safely within -40°C to 150°C temperature range. 3-pin panel mount configuration with Y1-CU package type.

High surge current capability at 10.6 kA peak forward surge current. Compact dimensions: 115 mm length, 50 mm width, 49 mm height. Explore the comprehensive range of semiconductor solutions available on EnvMart for your power electronics needs.
