STMicroelectronics 600 V 5 A Switching Diode Single 2-Pin DO-201AD STTH5L06

Free Delivery in India | Lowest Global Shipping Charges

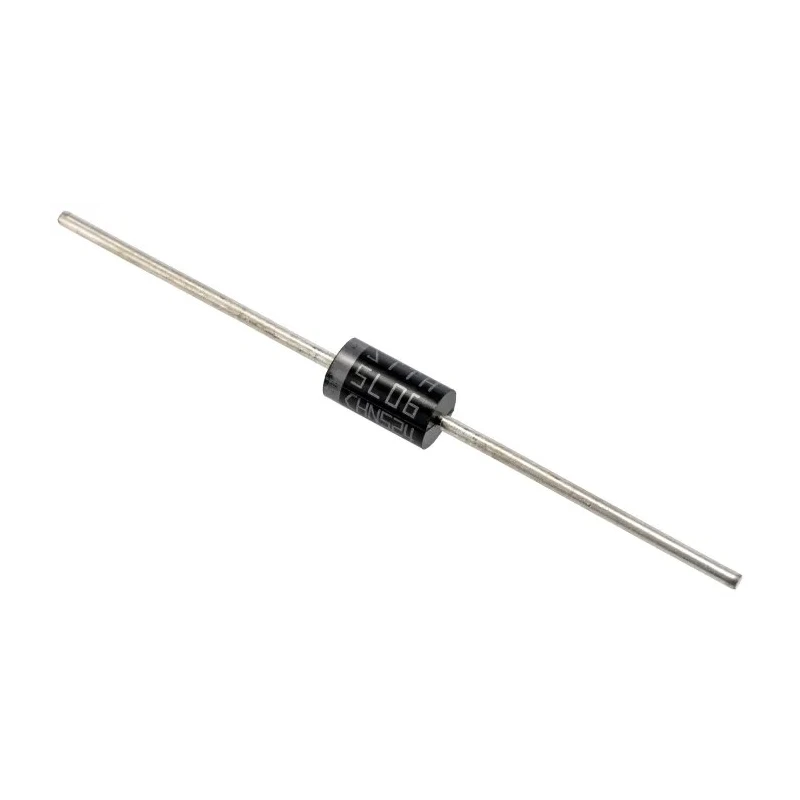

STMicroelectronics 600 V 5 A Switching Diode Single 2-Pin DO-201AD STTH5L06

Name: STMicroelectronics 600 V 5 A Switching Diode Single 2-Pin DO-201AD STTH5L06
Brand: STMicroelectronics
SKU: 190049
Price: 0.65 USD
Availability: InStock



Category Semiconductor Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	STMicroelectronics
Height	5.3mm
Length	9.5mm
Model	STTH5L06
Width	5.3mm
Mount Type	Through Hole
Series	STTH
Maximum Operating Temperature	175°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	110A
Maximum Forward Voltage Vf	1.3V
Peak Reverse Recovery Time trr	95ns

Key Features

Rated for maximum continuous forward current of 5 amperes.
Supports peak reverse repetitive voltage up to 600 volts.
Features low peak reverse current of 5 microamperes for efficient operation.
Compact two-pin through-hole DO-201AD package measuring 9.5mm length and 5.3mm diameter.
High surge current capability of 110 amperes for transient conditions.
Maximum forward voltage drop of 1.3 volts ensures minimal power dissipation.
Fast peak reverse recovery time of 95 nanoseconds suitable for switching applications.
Operates reliably within temperature range from -65°C to 175°C.

Product Description

STMicroelectronics STTH5L06 is a semiconductor switching diode designed to provide efficient and reliable rectification with a maximum continuous forward current rating of 5 amperes and a peak reverse repetitive voltage of 600 volts. Housed in a robust DO-201AD through-hole package, this diode features a single diode configuration tailored for switching purposes.

The diode offers a low peak reverse current of 5 microamperes and a high peak non-repetitive forward surge current of 110 amperes, enabling it to handle transient surges effectively. With a maximum forward voltage drop of 1.3 volts, the diode minimizes power dissipation, enhancing overall device efficiency.

The package dimensions include a length of 9.5 mm, diameter of 5.3 mm, width of 5.3 mm, and height of 5.3 mm, making it suitable for various through-hole mounting applications. The device operates reliably over a wide temperature range of -65°C to 175°C, ensuring robustness in demanding industrial environments.

Its fast peak reverse recovery time of 95 nanoseconds supports high-speed switching needs, making the STTH5L06 suitable for power supply, power management, industrial electronics, and discrete semiconductor applications. This product does not have specific certifications but conforms to general industrial standards set by STMicroelectronics.

Rated continuous forward current of 5 A ensures robust power handling. Peak reverse voltage rating of 600 V protects against voltage spikes. Minimal peak reverse current for enhanced efficiency. Compact DO-201AD through-hole package for easy PCB assembly.

High surge current capability supports short bursts of high load. Low forward voltage drop reduces heating and energy loss. Fast switching with 95 ns recovery for efficient rectification. Wide operating temperature range for diverse industrial use.

Single diode configuration optimized for switching applications. Perfect for power electronics and semiconductor switching circuits.

Ideal for integration in electronic component manufacturing, power supplies, and industrial electronic systems, the STMicroelectronics STTH5L06 provides a reliable solution for switching diode requirements. Browse more Semiconductor Diodes on EnvMart to find complementary components for your projects.
