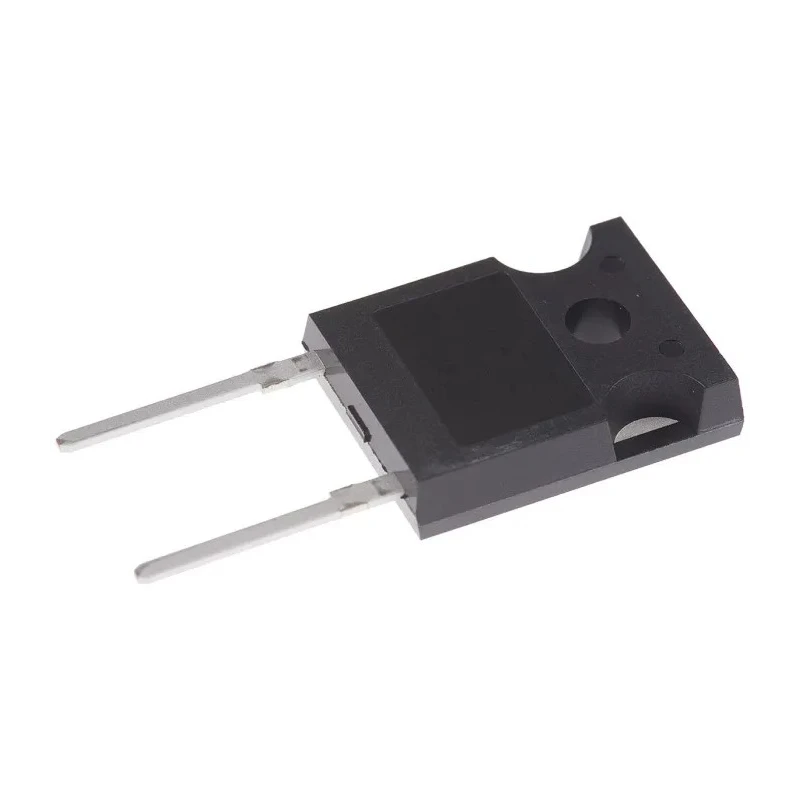

IXYS 600 V 30 A Diode Switching 2-Pin Through Hole Package TO-247AD DHG30I600HA

Free Delivery in India | Lowest Global Shipping Charges

IXYS 600 V 30 A Diode Switching 2-Pin Through Hole Package TO-247AD DHG30I600HA

Name: IXYS 600 V 30 A Diode Switching 2-Pin Through Hole Package TO-247AD DHG30I600HA
Brand: IXYS
SKU: 138567
Price: 17.68 USD
Availability: InStock



Category Semiconductor Diode Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	21.46mm
Length	16.26mm
Model	DHG30I600HA
Width	5.3mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	TO-247AD
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	2.36V
Peak Reverse Recovery Time trr	35ns

Key Features

The diode features a through hole mount type for secure PCB installation.
It has a maximum continuous forward current rating of 30 A.
Peak reverse repetitive voltage withstands 600 V for reliable operation.
The package is a TO-247AD with a 2-pin configuration suitable for power electronics.
Operation temperature ranges from -55°C minimum to 150°C maximum.
Maximum forward voltage drop is 2.36 V, optimizing efficiency.
Peak reverse recovery time is 35 ns, supporting high-speed switching.
Peak non-repetitive forward surge current capability is 200 A for transient robustness.

Product Description

IXYS DHG30I600HA is a high-performance switching diode designed for power and electronic applications. This 2-pin rectifier diode comes in a TO-247AD through hole mounting package that offers robust and reliable installation in circuit boards.

It features a maximum continuous forward current rating of 30 amperes and can withstand peak reverse repetitive voltages up to 600 volts, making it suitable for demanding power conversion and switching contexts in industrial and commercial electronics.

The diode can operate efficiently over a wide temperature range between -55°C and 150°C, allowing usage in harsh environments. Its peak forward voltage of 2.36 volts ensures minimal forward drop, supporting energy efficiency in circuit designs.

With a fast peak reverse recovery time of 35 nanoseconds and a peak non-repetitive forward surge current of 200 amperes, this diode caters to rapid switching applications with transient load conditions. The physical dimensions are compact, measuring 16.26 mm in length, 21.46 mm in height, and 5.3 mm in width, fitting standard power electronic assemblies.

Applications include power supplies, motor drives, inverters, and general semiconductor switching roles in manufacturing, industrial automation, consumer electronics, and other commercial uses.

The diode features a through hole mount type for secure PCB installation. It has a maximum continuous forward current rating of 30 A. Peak reverse repetitive voltage withstands 600 V for reliable operation. The package is a TO-247AD with a 2-pin configuration suitable for power electronics.

Operation temperature ranges from -55°C minimum to 150°C maximum. Maximum forward voltage drop is 2.36 V, optimizing efficiency. Peak reverse recovery time is 35 ns, supporting high-speed switching. Peak non-repetitive forward surge current capability is 200 A for transient robustness.

The device measures 16.26 mm length, 21.46 mm height, and 5.3 mm width. Explore the Semiconductor category at EnvMart for advanced IXYS switching diodes and related power electronics components.
