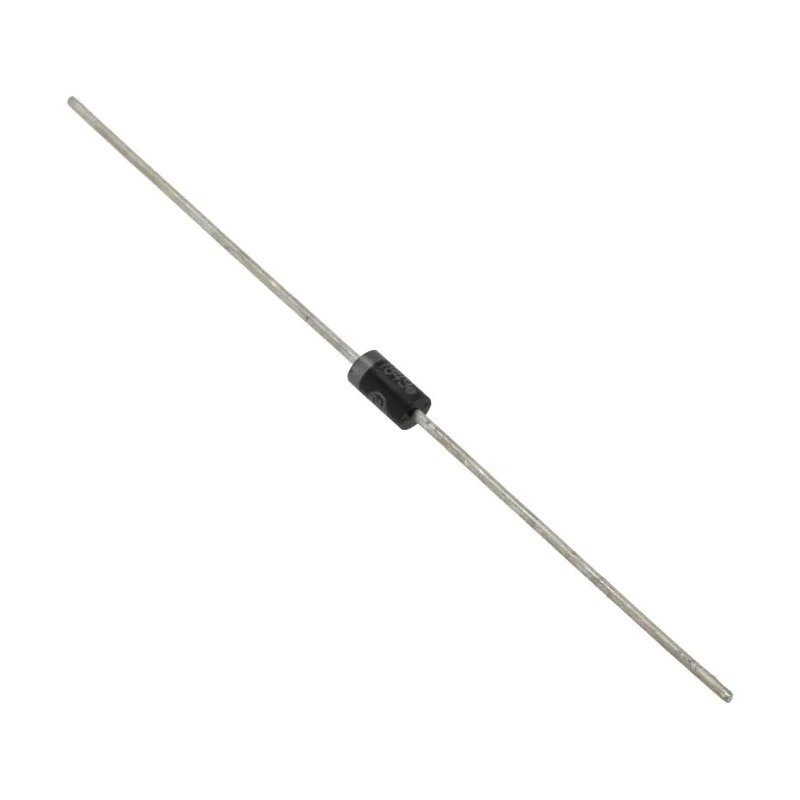

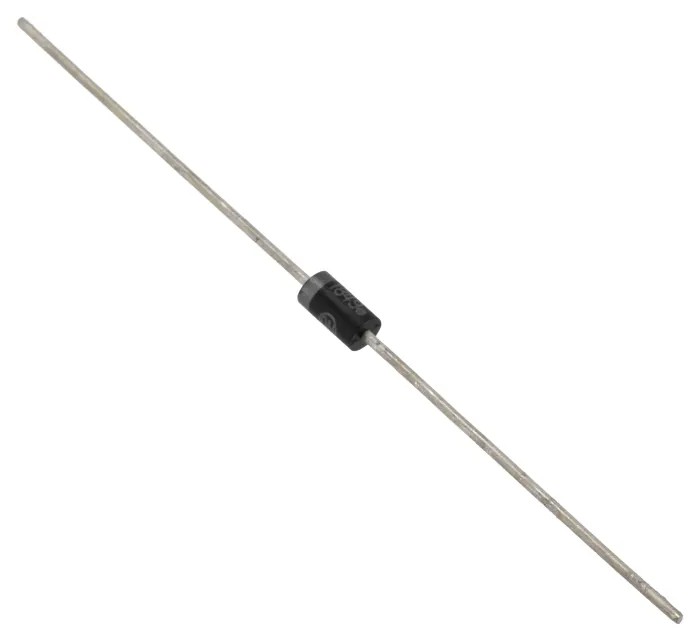

onsemi 200 V 1 A Fast Recovery Diode Through Hole Case 59 1N4935RLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 200 V 1 A Fast Recovery Diode Through Hole Case 59 1N4935RLG

Name: onsemi 200 V 1 A Fast Recovery Diode Through Hole Case 59 1N4935RLG
Brand: onsemi
SKU: 157603
Price: 0.12 USD
Availability: InStock



Category Semiconductor Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	2.7mm
Brand	onsemi
Height	5.2mm
Length	2.7mm
Model	1N4935RLG
Finish	All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Gross Weight	0.4 gram (approximately)
Width	56mm
Mount Type	Through Hole
Series	1N4935
Maximum Operating Temperature	150°C
Case	Epoxy, Molded
Package Type	Case 59
Minimum Operating Temperature	-65°C
Polarity	Cathode Indicated by Polarity Band
Marking	1N4933, 1N4934, 1N4935, 1N4936, 1N4937
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Single
Rectifier Type	Fast Recovery
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Peak Reverse Recovery Time trr	300ns
Lead Temperature for Soldering Purposes	260°C Max. for 10 Seconds

Key Features

The diode is configured as a single semiconductor device with fast recovery characteristics.
It supports a maximum continuous forward current of 1 ampere and peak forward surge current of 30 amperes.
The maximum reverse repetitive voltage rating is 200 volts, making it suitable for high-voltage applications.
The device features a 2-pin axial lead through-hole mount with resin molded Case 59 packaging.
The diode operates in a temperature range from -65°C to 150°C ensuring reliability under industrial conditions.
Its typical peak reverse recovery time is 300 nanoseconds, suited for switching applications up to 250 kHz.
With epoxy molded casing, the diode is corrosion resistant and has solderable terminal leads.
The polarity is clearly marked with a cathode band for correct orientation during assembly.

Product Description

The onsemi 1N4935RLG is a high-performance fast recovery diode rated for 200 volts and 1 ampere continuous forward current, housed in a Case 59 epoxy molded through-hole package. It is engineered to provide fast switching with a peak reverse recovery time of 300 nanoseconds, making it ideal for industrial and electronic applications such as DC power supplies, inverters, converters, ultrasonic systems, choppers, low RF interference circuits, and freewheeling diode uses.

This axial-lead diode offers robust performance with a peak non-repetitive surge current of 30 amperes, and a wide operating temperature range from -65°C to 150°C, ensuring reliability in harsh environments. The epoxy molded case provides corrosion resistance and excellent mechanical protection, while the terminal leads are designed for easy soldering with a maximum lead temperature of 260°C for 10 seconds.

The diode's compact dimensions (length 2.7 mm, diameter 2.7 mm, height 5.2 mm) and low weight (~0.4 grams) make it suitable for integration in densely packed circuit boards. Its single diode configuration and clearly marked cathode polarity reduce assembly errors.

Fast recovery rectifier diode suitable for high-frequency switching applications up to 250 kHz. Typical peak reverse recovery time of 300 nanoseconds. Maximum continuous forward current of 1 A and peak surge current of 30 A.

Rated peak repetitive reverse voltage of 200 V for industrial electronic systems. Epoxy molded Case 59 design with corrosion-resistant finish. Operating temperature from -65°C to 150°C for versatile environmental tolerance.

2-pin axial lead through-hole mount for easy PCB installation. Widely applicable in power supplies, inverters, converters, and ultrasonic equipment.

These features make the onsemi 1N4935RLG diode a reliable component in electronic and industrial devices requiring fast recovery, high efficiency, and durable operation. Explore more Semiconductor Diodes and rectifiers in the EnvMart catalog to find the perfect match for your electronic design and engineering needs.
