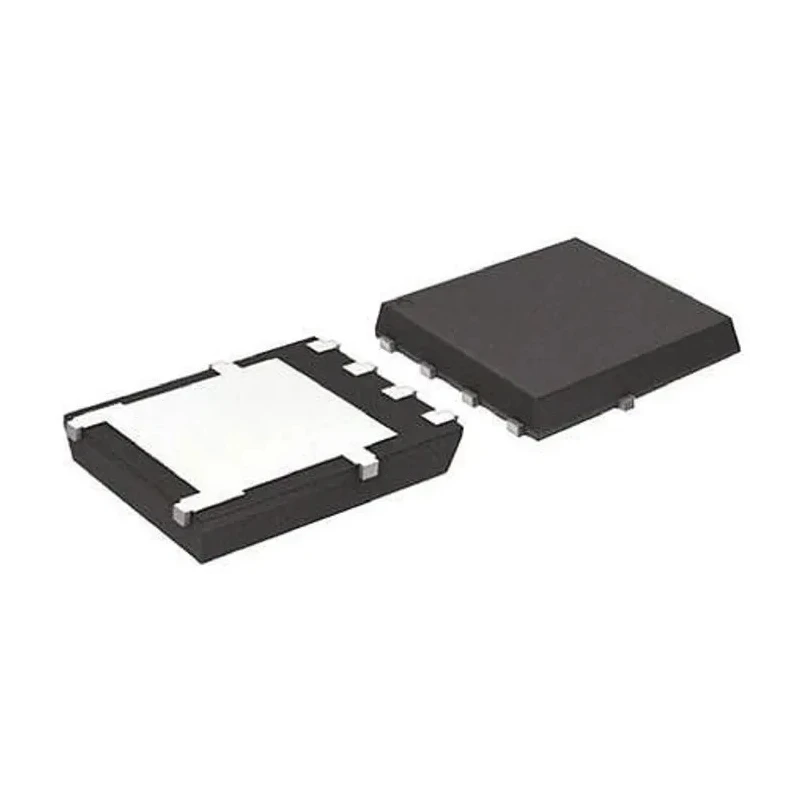

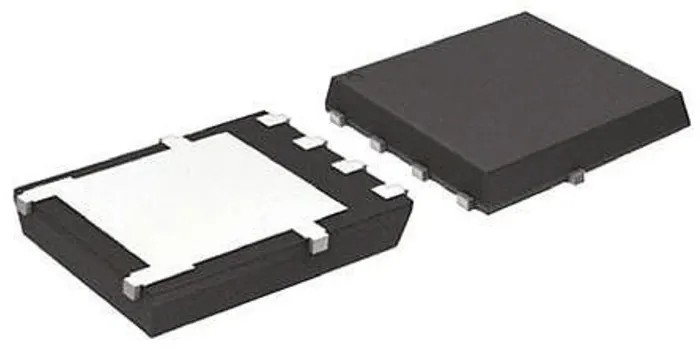

onsemi N-Channel Power MOSFET 370 A, 40 V, Enhancement Mode, 5-Pin DFN, Surface Mount NVMFS5C404NL

onsemi NVMFS5C404NL is a high-performance N-Channel Power MOSFET designed for applications requiring efficient and reliable switching of high current loads. It is rated for a maximum continuous drain current of 370 A and a maximum drain-source voltage of 40 V, making it suitable for advanced power management in industrial, automotive, and consumer electronics.

This MOSFET uses enhancement mode operation with a low maximum drain-source resistance of 1 milliohm, providing minimal conduction losses and improved efficiency in power conversion circuits. The device is housed in a compact 5-pin DFN package optimized for surface mounting, with precise dimensions of 5.1 mm length, 6.1 mm width, and 1.05 mm height, supporting high-density PCB designs.

Thermal performance is robust with a maximum power dissipation of 200 W, and operational temperature range spanning from -55°C to 175°C, making it capable of withstanding demanding ambient conditions often found in automotive and industrial applications. The typical gate charge at the gate-source voltage of 181 nC enables fast switching for high-frequency circuits.

The device complies with the AEC-Q101 automotive standard, ensuring reliability and quality for use in automotive electronics systems. It features a maximum gate-source voltage of 20 V and a forward voltage drop of 1.2 V, which supports reliable gate drive and circuit protection.

Typical use cases include power supply units, motor drives, DC-DC converters, and other power management systems requiring efficient control and switching of high currents at low voltages.

Supports a maximum continuous drain current of 370 A for high current applications. Drain-source voltage rating of 40 V suitable for low voltage circuits. Low on resistance of 1 milliohm ensures efficient power conversion.

Maximum power dissipation rating of 200 W enables robust thermal performance. Enhancement mode channel type for reliable switching behavior. Compact 5-pin DFN package type with dimensions 5.1 mm length, 6.1 mm width, and 1.05 mm height.

Wide operating temperature range from -55°C to 175°C supports harsh environments. Typical gate charge of 181 nC at gate-source voltage ensuring fast switching. Complies with automotive standard AEC-Q101 for automotive applications.
