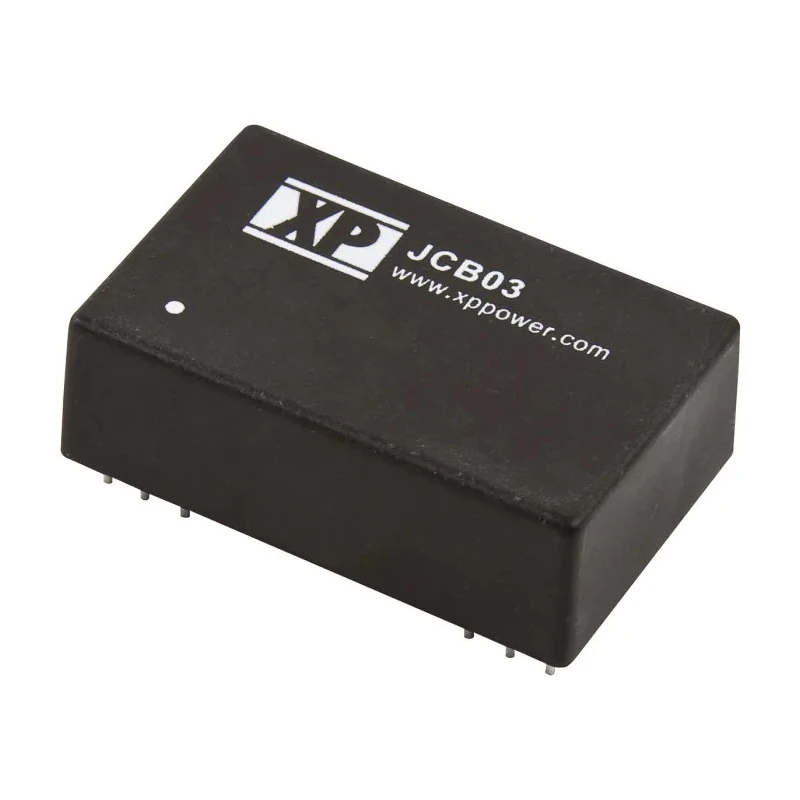

XP Power JCB Series 3W Isolated DC-DC Converter 24V DC Output, 130mA, 18V/9V Input, Through Hole, DIP Package JCB0312S24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCB DC/DC Converter, 24V dc/ 130 mA, 18V |
| Brand | XP Power |
| Efficiency | 79% |
| Length | 31.75mm |
| Model | JCB0312S24 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCB |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 130mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Isolated DC-DC converter ensures high reliability and noise immunity.
- Compact DIP package with 24 pins suitable for standard board mount applications.
- Wide input voltage range with 18V maximum and 9V minimum inputs.
- High isolation voltage rating of 1.5 kV DC for safety.
- Operating temperature range accommodates industrial environments.
- Efficiency rated at 79% maximizes power use and reduces heat.
- 2:1 input voltage ratio supports flexible power supply conditions.
- Long MTBF of 2,000,000 hours assures durability and longevity.
Product Description
XP Power JCB0312S24 is a highly reliable 3W isolated DC-DC converter designed for use in demanding industrial and electronic applications. It outputs 24V DC at 130mA current from inputs ranging between 9V to 18V DC. The device is packaged in a compact DIP through-hole mount form factor with 24 pins and a small footprint of 31.75mm length, 20.32mm width, and 10.16mm depth.
Featuring a high isolation voltage of 1.5 kV DC, this converter provides excellent safety and electrical noise immunity critical for industrial power management. Operating efficiently at 79%, it minimizes power loss and heat generation, ensuring stable performance over a wide temperature range from -40°C to +100°C.
The 2:1 input voltage ratio allows flexible operation with various supply voltages, making it ideal for embedded systems, telecommunications, instrumentation, and other electronics requiring isolated, stable DC power sources. Its long mean time between failures (MTBF) of 2 million hours underscores its durability in continuous operation environments.
This product belongs to the reputable XP Power JCB series known for offering single-output, small-footprint DC-DC converters suitable for board mounting or optional metal casing for enhanced durability. The DIP package type and through-hole mounting support easy integration into printed circuit boards.
Isolated 3W DC-DC converter for enhanced safety and noise immunity. Wide input voltage range with 9V to 18V DC input capability. High efficiency reducing power consumption and thermal load. Compact, industry-standard DIP through-hole package with 24 pins.
Operates reliably from -40°C to +100°C ambient temperature. High isolation voltage of 1.5 kV DC for industrial-grade applications. Long MTBF of 2,000,000 hours for industrial durability. Designed for power management in industrial, electronic and telecommunication systems.
Manufactured in Taiwan, Province Of China ensuring quality standards. Optional casing available for enhanced environmental protection.
This DC-DC converter is an excellent choice for engineers and designers needing a reliable, isolated, and efficient power converter for various industrial and commercial electronics projects. Browse the Electronics & Electricals category at EnvMart to explore more XP Power products and similar DC/DC Converters optimized for different power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 24V DC output with a current of 130mA.
It accepts an input voltage range from 9V to 18V DC.
The efficiency of this converter is rated at 79%.
It has a high isolation voltage rating of 1.5 kV DC, ensuring safety and noise immunity.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It operates reliably within a temperature range of -40°C to +100°C.
This unit features a total of 24 pins in its DIP package.
The MTBF is rated at 2,000,000 hours, indicating its durability in continuous operation.
It is designed for through-hole mounting, making it suitable for standard board applications.
It is ideal for use in embedded systems, telecommunications, instrumentation, and other electronics requiring isolated DC power.
The input voltage ratio is 2:1, allowing flexible operation with various supply voltages.
This product is manufactured in Taiwan, Province Of China, ensuring adherence to quality standards.
