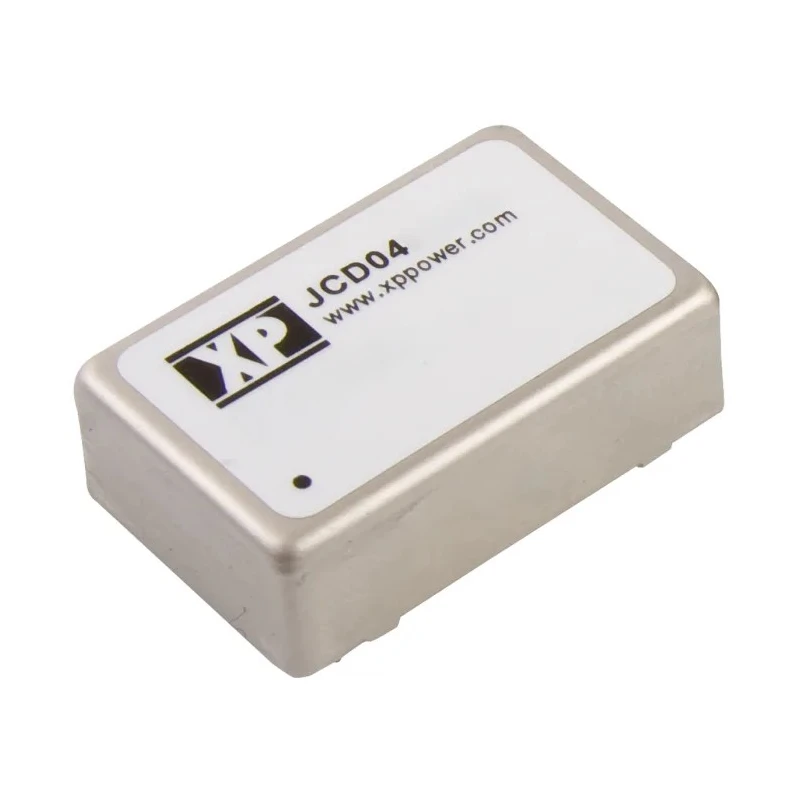

XP Power JCD Series 4W Isolated Dual Output DC/DC Converter 9V dc/220mA, 18V dc Input, Through Hole Mount JCD0412D09

XP Power JCD0412D09 is a high-reliability, isolated dual output DC/DC converter delivering a power output of 4 watts. Designed to operate with an input voltage ranging from 9V dc to 18V dc, it provides stable 9V dc dual outputs at 220mA current. This converter features an industry-standard DIP through-hole package and offers an isolation voltage of 1.6 kV dc, enabling safe and effective power conversion in sensitive electronic circuits.

Engineered for industrial, laboratory, and commercial electronics applications, it excels in power supplies, instrumentation, and embedded systems requiring galvanic isolation. The converter includes continuous short circuit protection and operates efficiently up to 80%, which significantly reduces heat dissipation.

With a wide operating temperature range from -40°C to 100°C, the device is well-suited for harsh environments and ensures reliable performance over prolonged usage. The compact dimensions (31.75mm length, 20.32mm width, 10.4mm depth) facilitate integration into space-constrained PCB designs. It includes 8 pins enabling stable mounting and connection.

The JCD series delivers a 2:1 input voltage ratio and output voltage adjustment of ±8.91 V dc and ±9.09 V dc, providing flexible output configuration. The Mean Time Between Failures (MTBF) rating of 1,100,000 hours endorses its durable and stable operation in critical industrial settings. Additionally, it complies with RoHS standards, ensuring it meets environmental regulations.

4W isolated dual output power supply for electronics and industrial use. Input voltage range 9 to 18V dc with 2:1 input ratio support. High isolation voltage of 1600V dc for enhanced safety. Continuous short circuit protection enhances device reliability.

80% efficiency minimizes operating heat and power loss. Wide operating temperature range from -40°C to +100°C. Compact DIP through-hole package with 8 pins for secure mounting. Precise dual output voltage adjustment capability.

Long MTBF of 1,100,000 hours ensures consistent performance. RoHS compliant, meeting environmental and safety standards.

This DC/DC converter is ideal for power management in industrial automation, telecommunications, instrumentation, and medical electronics. Its robustness and reliable isolation help maintain circuit integrity under demanding operational conditions.
