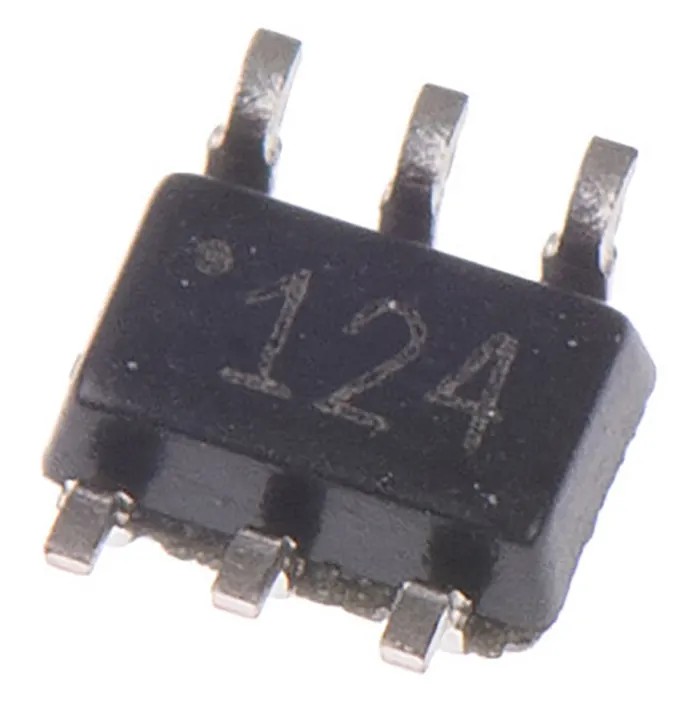

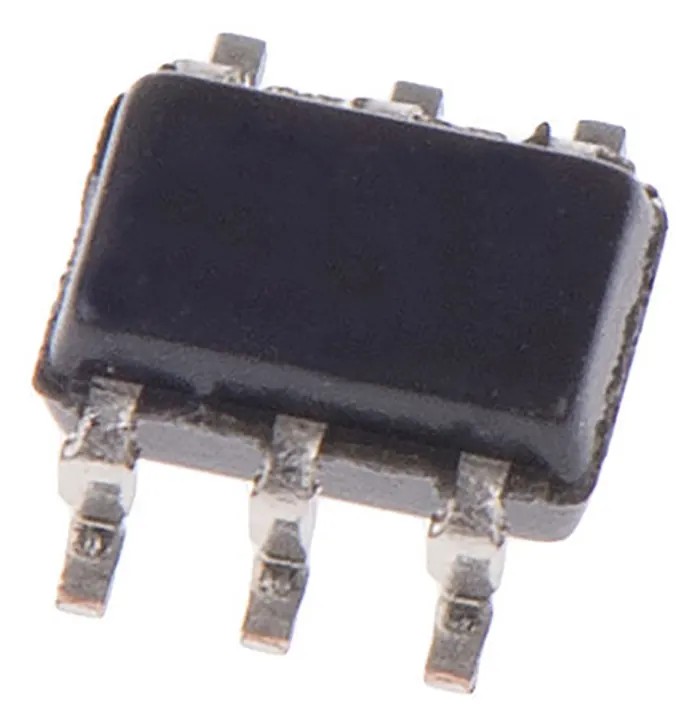

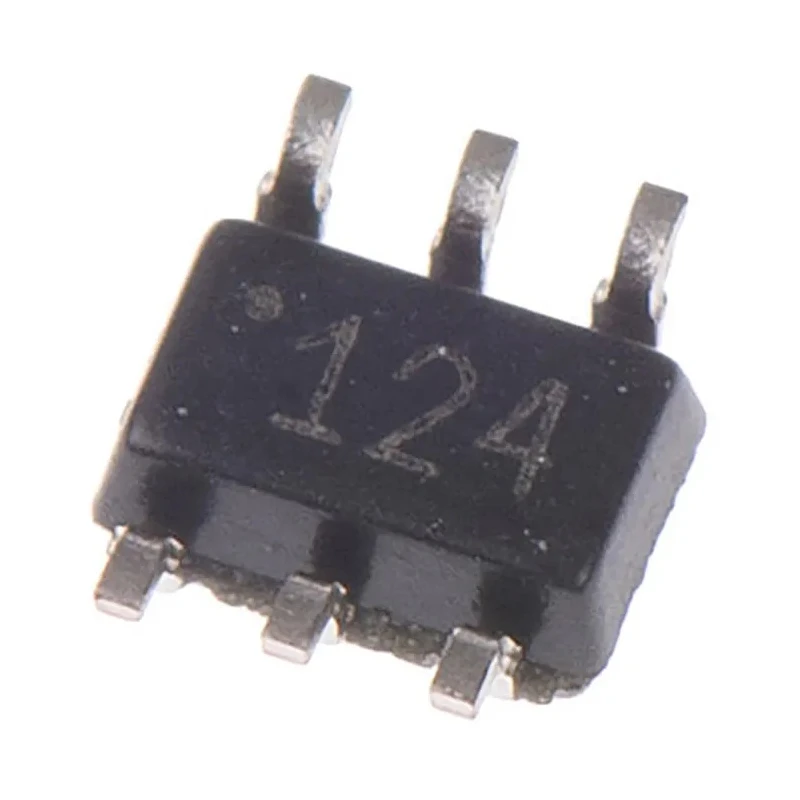

Texas Instruments Schmitt Trigger Input CMOS Inverter 2 Elements, 1.65 to 5.5 V, 6-Pin SC-70 SN74LVC2G14DCKT

Texas Instruments SN74LVC2G14DCKT is a Schmitt Trigger input CMOS inverter IC, featuring 2 inverter elements per chip packaged in a compact 6-pin SC-70 surface-mount package. It supports low-voltage CMOS logic operation with supply voltage range from 1.65 V to 5.5 V, suitable for modern electronic designs requiring power efficiency and reliable switching.

This device offers a maximum propagation delay time of 10.5 ns at specified load capacitance, making it suitable for fast signal processing tasks in various electronic circuits. The maximum output drive capability includes -32 mA for high-level and 32 mA for low-level output currents, ensuring robust interfacing with other logic devices.

With an operating temperature range of -40°C to 85°C, the SN74LVC2G14DCKT ensures stable performance in diverse environmental conditions. The device is compatible with LVTTL/TTL input levels and outputs LVCMOS logic levels, providing excellent flexibility in mixed-logic environments.

The compact SC-70 package with exact dimensions of 2 mm length, 1.25 mm width, and 900 μm height allows for high-density PCB layouts. This IC finds application in industrial automation systems, instrumentation, automotive electronics (non-automotive standard), and general-purpose signal inversion needs.

The device contains 2 inverter elements per chip for signal processing. Operates on supply voltage ranging from 1.65 V to 5.5 V. Maximum propagation delay time at load capacitance is 10.5 ns. Maximum high-level output current is -32 mA, with low-level output current of 32 mA.

Package type is compact 6-pin SC-70 suitable for surface mount applications. Operating temperature ranges from -40°C to 85°C ensuring reliable operation in harsh conditions. Compatible with input LVTTL/TTL levels and provides output as LVCMOS.

Height, length, and width dimensions are 900μm, 2 mm, and 1.25 mm respectively.

This product is a reliable component choice for semiconductor applications needing logic inversion with Schmitt Trigger inputs, enhancing noise immunity and signal integrity. It is perfect for integration into electronic circuits in industrial, laboratory, and consumer electronics domains.
