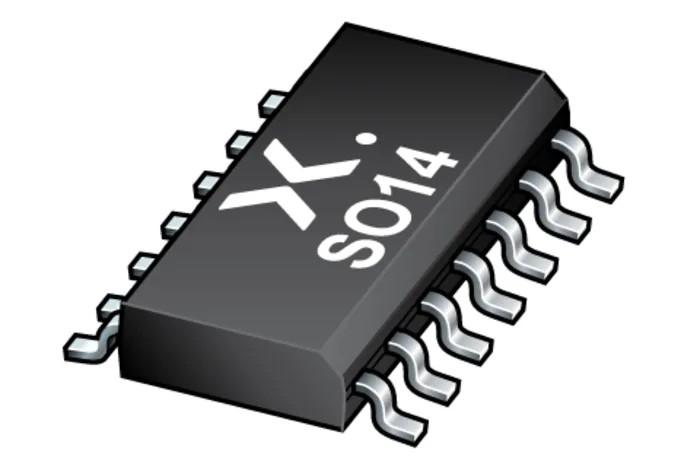

Nexperia Hexagon Unbuffered CMOS Inverter 6 Elements 14-Pin SO-14 HEF4069UBT,653

Nexperia HEF4069UBT,653 is a hexagon unbuffered inverter logic IC designed for industrial and electronic applications. This device contains 6 CMOS inverting gates housed in a compact surface mount SO-14 package, supporting a broad supply voltage range from 3V to 18V. It operates within a robust temperature range of -40°C to 125°C, suitable for extreme environmental conditions.

The inverter features fully static operation, enabling stable and low power consumption digital switching. Each inverter in the chip performs a single-stage unbuffered inversion function with a maximum propagation delay of 90 nanoseconds under capacitive load (CL). The maximum high-level output current is -0.36 mA, important for driving low-current digital loads.

Its physical dimensions (8.75mm length, 4mm width, 1.45mm height) make it ideal for surface mounting on printed circuit boards in compact electronic assemblies. The product conforms to JEDEC standard JESD 13-B ensuring quality and reliability in semiconductor performance.

This product is part of the HEF4069UB series and HEF4000 logic family, popular for versatile digital logic design in industrial automation, embedded systems, and consumer electronics.

Six inverting CMOS gates in a single IC. Surface mount SO-14 packaging for compact PCB designs. Wide operating voltage and temperature range increase application flexibility. JEDEC compliant for semiconductor quality assurance.

Suitable for electronic, industrial automation, and laboratory circuit designs.

The HEF4069UBT,653 offers consistent logic inverter performance in embedded circuits, signal processing, and interface logic. Its compact form and stable characteristics make it an essential component in semiconductor inventories.
