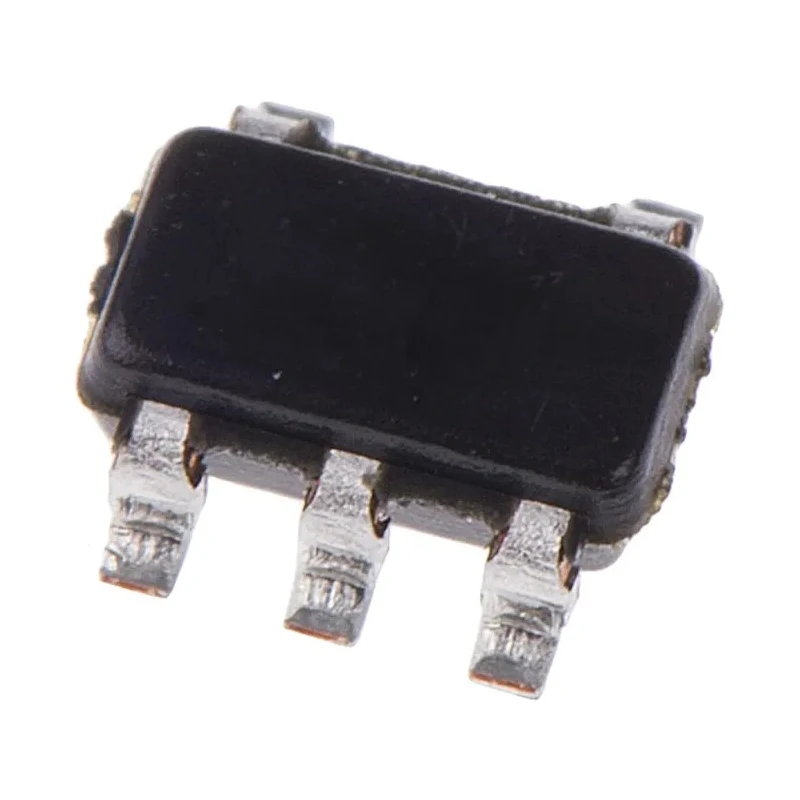

Texas Instruments Schmitt Trigger Input Inverter Logic IC 1 Element, 5-Pin SOT-23 Package SN74LVC1G14DBVR

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Schmitt Trigger Input Inverter Logic IC 1 Element, 5-Pin SOT-23 Package SN74LVC1G14DBVR

Name: Texas Instruments Schmitt Trigger Input Inverter Logic IC 1 Element, 5-Pin SOT-23 Package SN74LVC1G14DBVR
Brand: Texas Instruments
SKU: 123550
Price: 0.13 USD
Availability: InStock



Category Inverters ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	China
Brand	Texas Instruments
Height	1.15mm
Length	2.9mm
Model	SN74LVC1G14DBVR
Width	1.6mm
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Output type	CMOS, Push Pull
Series	SN74LVC1G14
Input Type	Schmitt Trigger
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	5
Number of Elements per Chip	1
Maximum Supply Voltage	5.5V
Logic Family	LVC
Logic Function	Inverter
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	13ns
Maximum Low Level Output Current	32mA

Key Features

Operates over a voltage range of 1.65 V to 5.5 V.
Features Schmitt trigger input for enhanced noise immunity.
Maximum propagation delay of 13 nanoseconds at the specified load capacitance.
Single gate inverter device with CMOS push-pull output type.
Surface mount package type SOT-23 with 5 pins.
Operating temperature range from -40°C to 85°C.
Compatible with input LVTTL/TTL and output LVCMOS logic levels.
Maximum high level output current of -32 mA and low level output current of 32 mA.

Product Description

Texas Instruments SN74LVC1G14DBVR is a Schmitt trigger input inverter IC designed as a single gate logic inverter element. It operates from a low-voltage CMOS logic supply ranging from 1.65 V to 5.5 V, making it suitable for various industrial, electronics, and embedded system applications requiring noise immunity and stable switching.

The device features a Schmitt trigger input which improves noise immunity and transition switching characteristics, ensuring reliable digital signal processing. It offers a fast maximum propagation delay time of 13 ns at the specified load, enhancing performance in timing-critical circuits.

This component comes in a compact 5-pin SOT-23 surface mount package suitable for high-density PCB layouts. It supports TTL input compatibility and delivers CMOS push-pull output type, facilitating easy integration in mixed-signal environments.

Operating temperatures span from -40°C to 85°C, providing robustness for use in industrial environments. The maximum output currents are -32 mA for high level and 32 mA for low level, suitable for driving various downstream logic or transistor circuits.

Physical dimensions of 2.9 mm length, 1.6 mm width, and 1.15 mm height make it ideal for space-constrained applications. Originating from China, this device is part of the SN74LVC1G14 series, known for low-voltage CMOS logic quality.

Operates on 1.65 to 5.5 V voltage supply. Schmitt trigger input for enhanced noise immunity. Propagation delay time of up to 13 ns. Single inverter logic gate with CMOS push-pull output. Compact 5-pin SOT-23 surface mount package.

Wide operating temperature range of -40°C to 85°C. TTL input and LVCMOS output compatible. Max output currents: -32 mA (high), 32 mA (low). Small dimensions suitable for dense PCB layouts. Ideal for various industrial and electronics applications.

Explore more Texas Instruments Inverter ICs and incorporate the SN74LVC1G14DBVR to enhance your electronic designs with reliable digital inverter logic components. EnvMart offers a comprehensive selection for your semiconductor requirements.

Explore more products in our Inverters ICs category.
