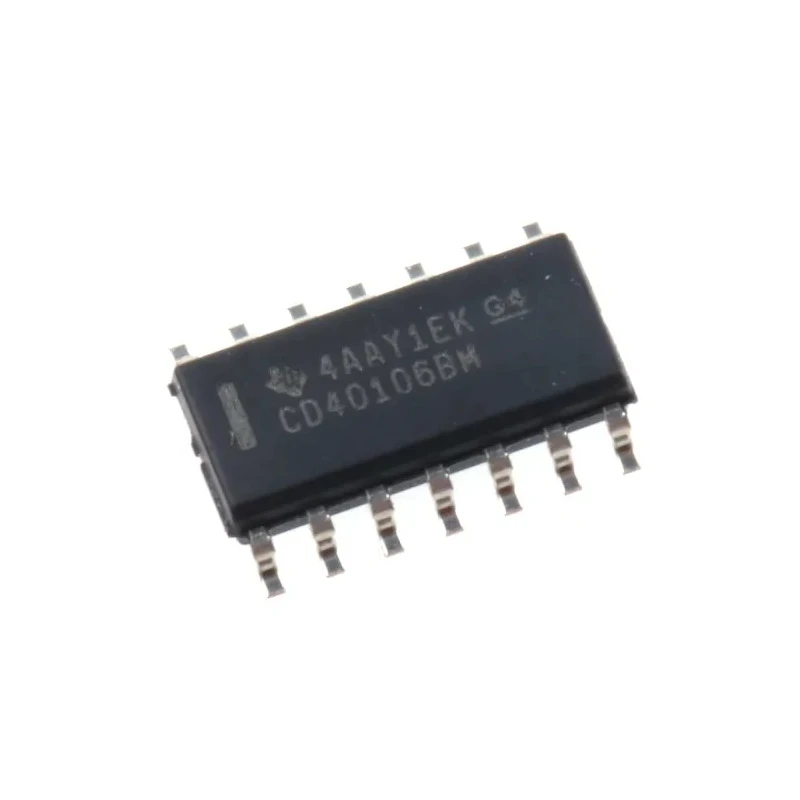

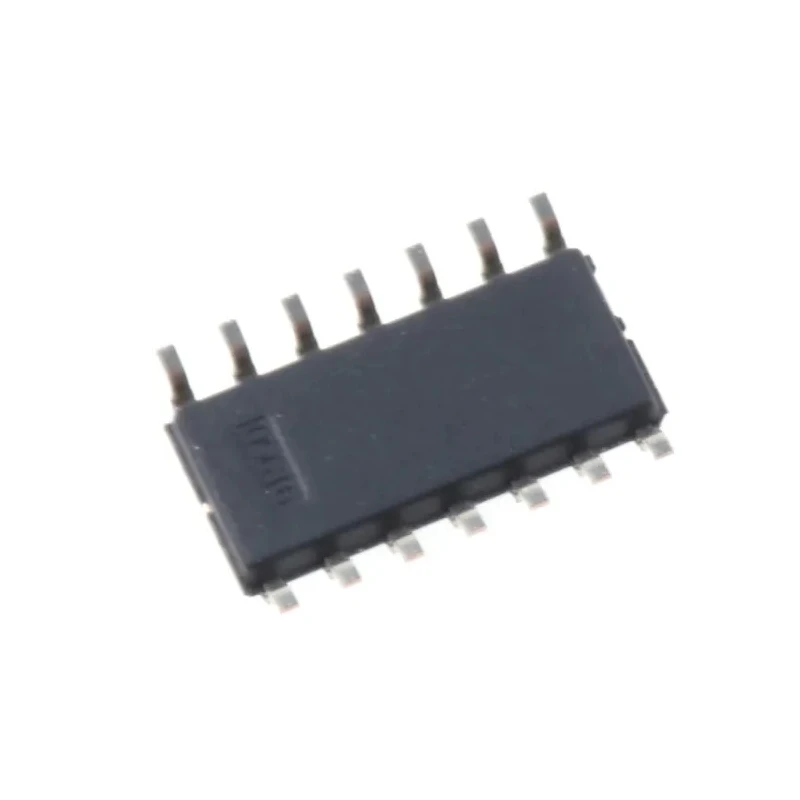

Texas Instruments Schmitt Trigger Input Inverter IC CD40106BM96 6 Elements 14-Pin SOIC 3 to 18V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | CD40106BM96 |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | CD40106B |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Logic Function | Inverter |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -4.2mA |
| Maximum Propagation Delay Time @ CL | 280ns |
| Maximum Low Level Output Current | 4.2mA |
| Wide operating voltage range | 3 to 18V |
Key Features
- This IC is part of the 4000 CMOS logic family designed for industrial and commercial applications.
- Features a maximum propagation delay time of 280 nanoseconds at CL.
- Maximum high level output current is -4.2 mA and low level output current is 4.2 mA.
- Operates within a temperature range of -55°C to 125°C ensuring reliability in harsh environments.
- The device has a compact SOIC surface mount package with a pin count of 14 for easy PCB integration.
- Wide operating voltage range allows flexible use in various electronic circuits and automation systems.
- Suitable for signal conditioning and wave shaping in industrial control and measurement equipment.
- Perfect for electronic design requiring Schmitt Trigger input inverters with low power consumption.
Product Description
Texas Instruments CD40106BM96 is a Schmitt Trigger input inverter IC providing six independent inverters in a compact 14-pin SOIC surface mount package. Operating across a wide supply voltage range from 3 volts up to 18 volts, it belongs to the 4000 CMOS logic family widely used in robust industrial and electronic applications.
The device features a maximum propagation delay of 280 nanoseconds at a typical load, with maximum output currents of -4.2 mA (high level) and 4.2 mA (low level). It supports operating temperatures between -55°C and 125°C, making it suitable for challenging environmental conditions.
The CD40106BM96 is designed for electronic engineers and technicians needing reliable signal conditioning, waveform shaping, and logic control in automation, instrumentation, and embedded electronics. Its Schmitt Trigger input characteristic provides enhanced noise immunity and cleaner signal transitions.
The compact SOIC package measures 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height, supporting surface mount technology for efficient PCB assembly in high-volume manufacturing.
Typical applications include industrial control systems, measuring instruments, data acquisition devices, and other logic-based circuitry requiring low power CMOS technology with the flexibility of wide voltage and temperature operation.
This IC integrates six inverters with schmitt-trigger input per chip. Wide operating voltage range from 3 to 18 volts suitable for varied electronic environments. Surface mount SOIC package simplifies PCB design and assembly processes.
Robust thermal operating range ensures performance in industrial applications. High noise immunity from Schmitt Trigger inputs improves signal integrity. Low static power consumption typical of 4000 series CMOS devices. Compact 14-pin dual inline package optimized for electronic systems.
Explore the complete range of semiconductor logic ICs at EnvMart for your industrial, laboratory, and automation requirements, including Texas Instruments products known for quality and consistency.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 18 volts.
It features a maximum propagation delay time of 280 nanoseconds at a typical load capacitance.
This unit operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
The IC integrates six independent inverters per chip.
It has a maximum high level output current of -4.2 mA and a low level output current of 4.2 mA.
This model comes in a compact 14-pin SOIC surface mount package.
It features Schmitt Trigger input characteristics, which enhance noise immunity and provide cleaner signal transitions.
The dimensions are 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height.
The CD40106BM96 belongs to the 4000 CMOS logic family.
It is suitable for signal conditioning, waveform shaping, and logic control in automation and instrumentation applications.
The minimum supply voltage for this model is 3 volts.
This unit is designed for surface mount technology, facilitating efficient PCB assembly.
