Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin PDIP Package SN74LS14N

Free Delivery in India | Lowest Global Shipping Charges

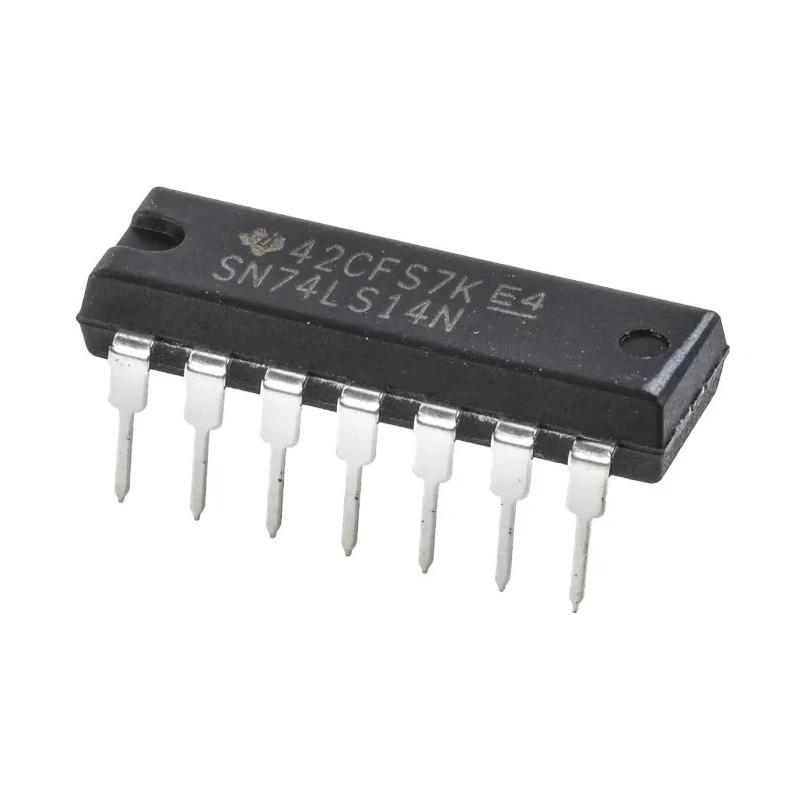

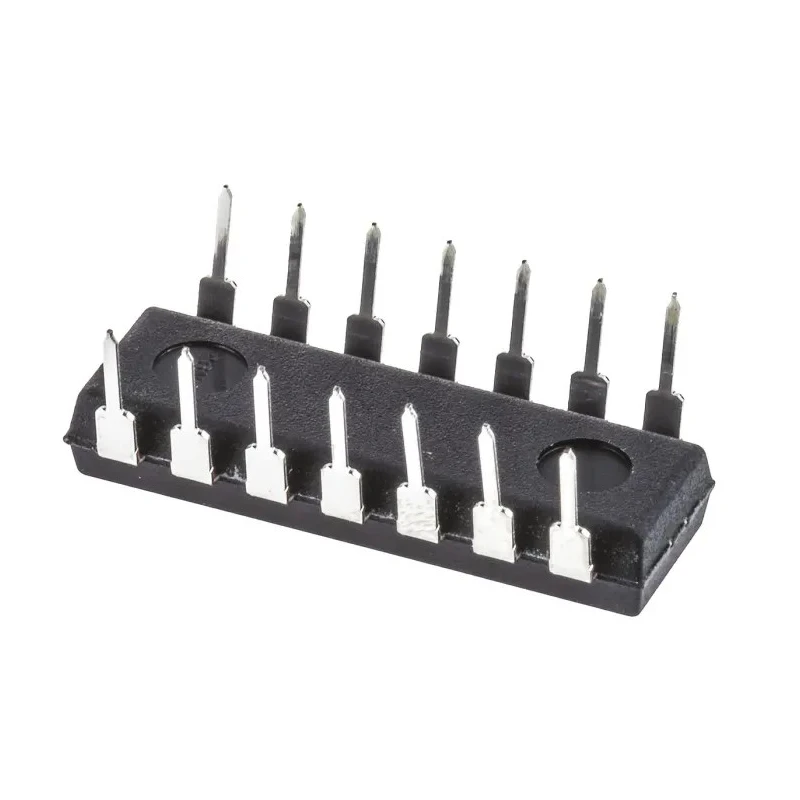

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin PDIP Package SN74LS14N

Name: Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin PDIP Package SN74LS14N
Brand: Texas Instruments
SKU: 110870
Price: 1 USD
Availability: InStock



Category Inverters ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	SN74LS14N
Width	6.35mm
Mount Type	Through Hole
Series	SN74LS14
Input Type	Schmitt Trigger
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	5.25V
Logic Family	LS
Logic Function	Inverter
Minimum Supply Voltage	4.75V
Maximum High Level Output Current	-0.4mA
Maximum Propagation Delay Time @ CL	22ns
Maximum Low Level Output Current	8mA

Key Features

This device features a Schmitt Trigger input to provide noise immunity.
It contains 6 inverter elements per chip, ideal for digital logic circuits.
The maximum propagation delay time is 22 nanoseconds at CL.
Maximum supply voltage ranges between 4.75V to 5.25V ensuring stable operation.
It supports through-hole mounting for easy PCB integration.
Operating temperature extends from 0°C to 70°C.
The IC belongs to the LS (Low Power Schottky) logic family offering low power consumption and improved speed.
Standard 14-pin PDIP package dimensions are 19.3mm length, 6.35mm width, and 4.57mm height.

Product Description

Texas Instruments SN74LS14N is a Schmitt Trigger Input Inverter from the 74LS family of logic ICs. It integrates six inverter elements with Schmitt Trigger inputs within a 14-Pin PDIP through-hole package. The device combines bipolar junction transistor technology with Schottky diode clamps to deliver low power consumption and high-speed switching performance.

This IC operates with a minimum supply voltage of 4.75V and a maximum of 5.25V, making it suitable for a wide range of 5V logic systems. It supports a maximum propagation delay of 22 nanoseconds at capacitive load, ensuring rapid signal inversion. The maximum high-level output current is -0.4mA and low-level is 8mA, supporting robust digital signal driving requirements.

Its operational temperature range from 0°C to 70°C allows for reliable performance in various industrial and commercial electronic applications. The 14-pin PDIP package measures 19.3mm in length, 6.35mm in width, and 4.57mm in height facilitating easy mounting on printed circuit boards via through-hole technique.

Typical industrial use cases for the SN74LS14N include digital logic circuits, oscillators, signal conditioning, waveform shaping, and timing devices in automation, instrumentation, and embedded system designs. The Schmitt Trigger input characteristic enhances noise immunity and signal stability in electrically noisy environments commonly found in manufacturing and control systems.

It does not have automotive certification but complies with standard 74LS logic family norms. Provides six high-speed inverters with Schmitt Trigger inputs per chip. Compatible with TTL logic circuitry and standard 5V supply voltages.

Offers excellent noise immunity and fast switching speeds typical of LS family devices. Robust design suitable for industrial, commercial, and laboratory electronics. Packaged in a 14-pin PDIP through-hole format for ease of prototyping and production.

Functions within broad temperature operating ranges ensuring durability. Ideal for waveform shaping, signal inversion, and timing applications. Explore the range of Texas Instruments logic ICs and related semiconductor products at EnvMart for reliable electronic component sourcing.

Explore more products in our Inverters ICs category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum supply voltage for this model is 5.25V, ensuring stable operation within a wide range of 5V logic systems.

The maximum propagation delay time at capacitive load for the SN74LS14N is 22 nanoseconds, allowing for rapid signal inversion.

This IC contains six inverter elements per chip, making it suitable for various digital logic applications.

The operating temperature range for this model is from 0°C to 70°C, allowing for reliable performance in various environments.

It features a Schmitt Trigger input, which provides enhanced noise immunity and signal stability.

The dimensions of the 14-pin PDIP package are 19.3mm in length, 6.35mm in width, and 4.57mm in height.

The maximum low-level output current for the SN74LS14N is 8mA, which supports robust digital signal driving requirements.

Yes, this model is compatible with TTL logic circuitry, making it suitable for integration into standard 5V logic systems.

This model supports through-hole mounting, facilitating easy integration onto printed circuit boards.

The SN74LS14N belongs to the LS (Low Power Schottky) logic family, which offers low power consumption and improved speed.

Typical applications include digital logic circuits, oscillators, signal conditioning, waveform shaping, and timing devices in various electronic systems.

The maximum high-level output current for the SN74LS14N is -0.4mA, which allows for effective signal driving in digital circuits.
