Texas Instruments Schmitt Trigger Input CMOS Inverter 2 Elements, 6-Pin SOT-23 Package SN74LVC2G14DBVR

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Schmitt Trigger Input CMOS Inverter 2 Elements, 6-Pin SOT-23 Package SN74LVC2G14DBVR

Name: Texas Instruments Schmitt Trigger Input CMOS Inverter 2 Elements, 6-Pin SOT-23 Package SN74LVC2G14DBVR
Brand: Texas Instruments
SKU: 125195
Price: 0.23 USD
Availability: InStock



Category Inverters ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.15mm
Length	2.9mm
Model	SN74LVC2G14DBVR
Width	1.6mm
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Series	SN74LVC2G14
Input Type	Schmitt Trigger
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	6
Number of Elements per Chip	2
Maximum Supply Voltage	5.5V
Logic Family	LVC
Logic Function	Inverter
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	10.5ns
Maximum Low Level Output Current	32mA

Key Features

Schmitt trigger input for improved noise immunity and signal integrity.
Compatible with input LVTTL/TTL and output LVCMOS logic levels.
Operates at a wide voltage range of 1.65 to 5.5 V.
Maximum propagation delay time of 10.5 nanoseconds at capacitive load.
Surface mount package type SOT-23 with compact dimensions 2.9 mm x 1.6 mm x 1.15 mm.
Maximum high-level output current of -32 mA and maximum low-level output current of 32 mA.
Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
Ideal for integration in low-voltage CMOS logic circuits and portable electronics.

Product Description

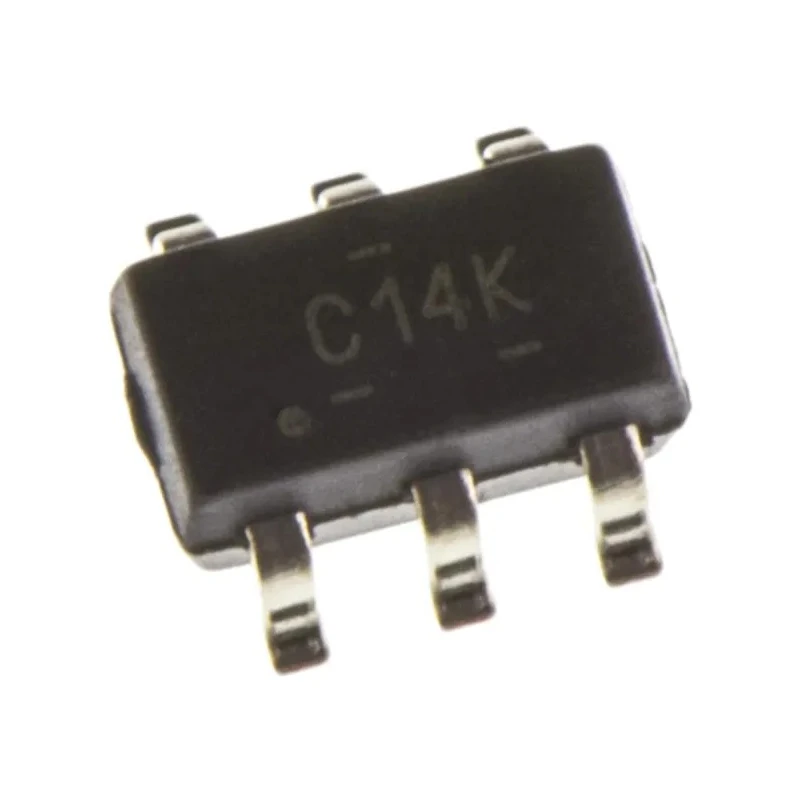

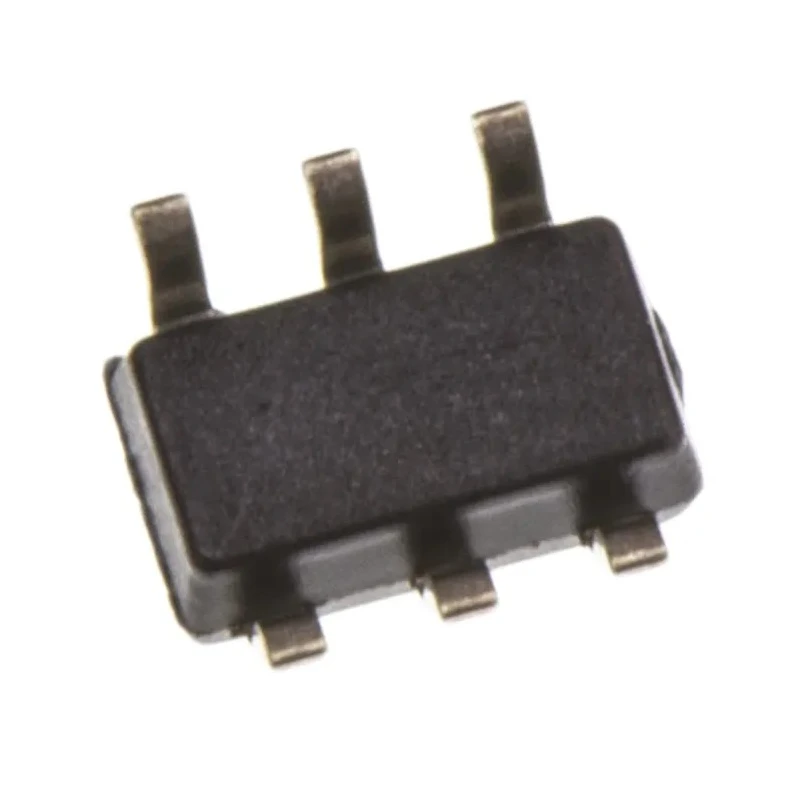

Texas Instruments SN74LVC2G14DBVR is a CMOS inverter IC featuring Schmitt trigger inputs that enhance the signal waveform integrity in digital circuits. This device includes two inverters in a compact, surface-mount 6-pin SOT-23 package ideal for space-constrained PCB layouts.

It supports operation over a voltage range of 1.65 V to 5.5 V, making it suitable for modern low-voltage logic systems and battery-powered applications. The maximum propagation delay time is 10.5 ns at a standard capacitive load, enabling high-speed digital switching functions in various industrial and consumer applications.

Electrical output currents reach up to ±32 mA, supporting robust driving capabilities for interfacing multiple logic devices. The device's operational temperature range from -40°C up to 85°C ensures reliable performance in automotive, industrial, and environmental conditions.

Schmitt trigger input improves noise immunity and ensures clean logic transitions for accurate digital signal processing. Compatible with low-voltage TTL and LVCMOS logic, facilitating easy integration with common logic families.

Compact 6-pin SOT-23 package reduces PCB space usage and supports surface-mount manufacturing processes. Part of the industry-recognized 74LVC logic family offering low power consumption and fast switching. Wide operating voltage range provides flexibility for varied power supply designs.

Ideal for industrial, laboratory, consumer electronics, and telecommunications equipment applications. The SN74LVC2G14DBVR CMOS inverter is a dependable component for engineers designing efficient, compact, and noise-resistant digital logic circuits.

Explore more Texas Instruments semiconductor solutions on EnvMart for advanced electronic design and manufacturing needs.

Explore more products in our Inverters ICs category.
