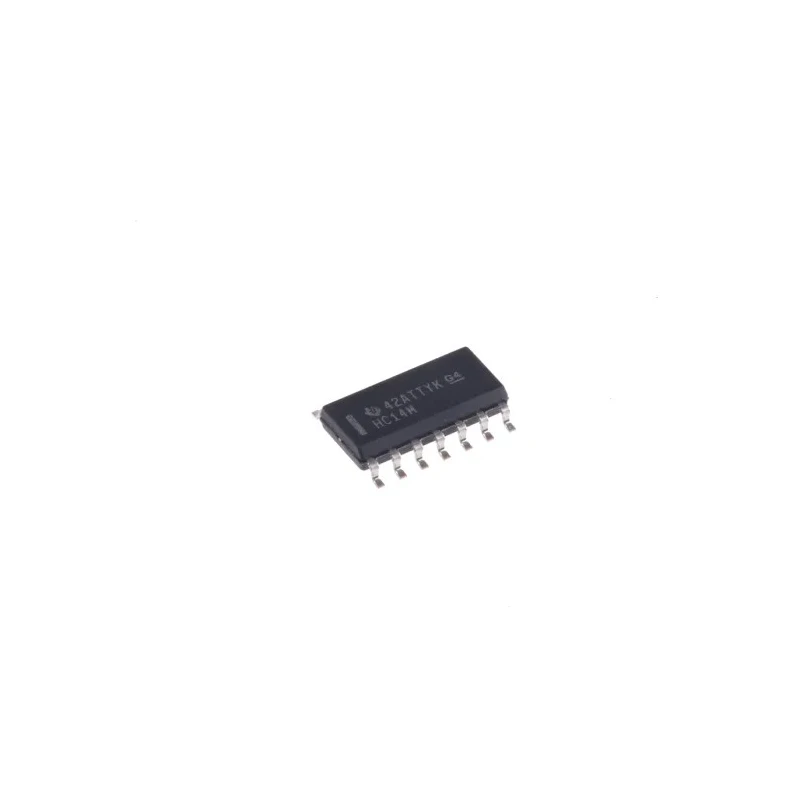

Texas Instruments Schmitt Trigger Input Inverter 6, 14-Pin SOIC CD74HC14M96

Texas Instruments CD74HC14M96 is a 74HC family inverter IC with six Schmitt trigger input inverters housed in a 14-pin SOIC package. It utilizes high-speed CMOS technology combining low power consumption with fast switching speeds similar to LSTTL logic. The Schmitt trigger input provides enhanced noise margin and switching stability, making it ideal for industrial, electronic component, laboratory equipment, and manufacturing applications requiring reliable logic inversion.

The device supports an operating voltage from 2 V to 6 V with a maximum propagation delay time of 205 ns, supporting fast logical operations in complex circuitry. It offers push-pull CMOS outputs that enable strong drive capability and compatibility with standard CMOS inputs and outputs. The logic family is HC, ensuring compatibility and ease of integration in a variety of electronic designs.

With operating temperatures ranging from -55°C to 125°C, the CD74HC14M96 inverter IC is suited for harsh environments and extended industrial use. Its surface mount SOIC package with a pin count of 14 and compact dimensions of 8.65 mm length, 3.91 mm width, and 1.58 mm height allow for efficient board layout and integration in dense electronic assemblies.

The device includes 6 independent inverters per chip. Features Schmitt trigger inputs for improved noise immunity. Output type is push-pull CMOS for robust output drive. Operates over a voltage range of 2 V to 6 V. Maximum propagation delay time is 205 nanoseconds at specified load.

Package is a 14-pin SOIC suitable for surface mounting. Operating temperature range spans from -55°C to 125°C. Logic family is HC, compatible with standard CMOS technology. Compact physical dimensions for efficient PCB integration.

This inverter IC is broadly applicable in industrial machines, electronic equipment, power supply controls, and laboratory instruments requiring precise, stable logic inversion functions. It provides reliable, low power operation in high-speed digital logic circuits.
