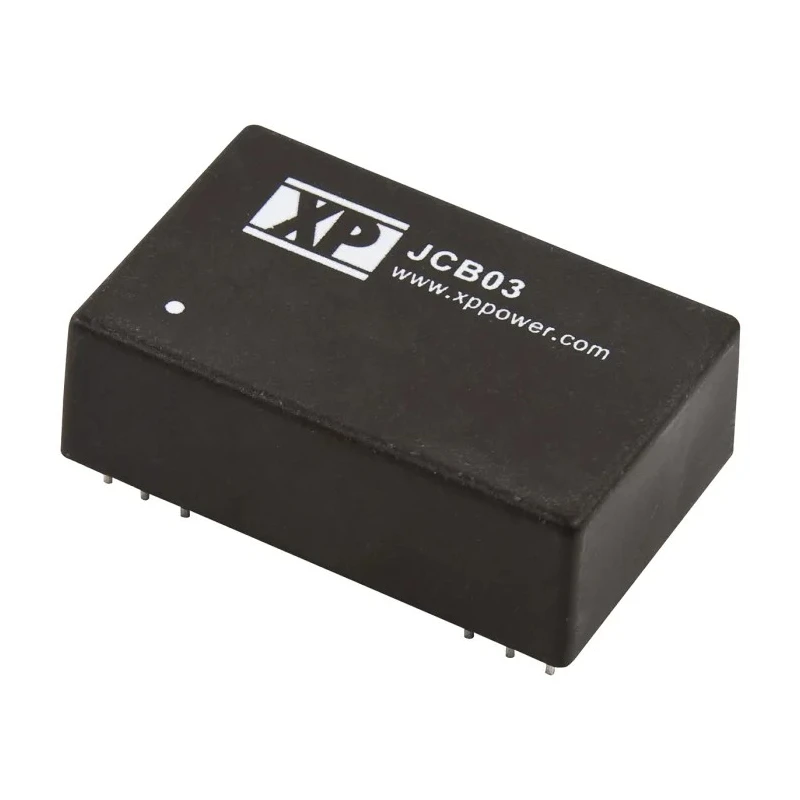

XP Power JCB Series Isolated 3W DC/DC Converter 9V DC Output 170mA 18V-36V DC Input Through Hole JCB0324D09

XP Power JCB0324D09 DC/DC Converter is a highly reliable, isolated 3W power supply designed for industrial and electronic applications that require dual output voltages. It features a 9V DC output voltage at 170mA, with input voltages ranging from 18V to 36V DC. The converter is housed in a compact DIP through-hole package suitable for robust installation on printed circuit boards.

This converter provides an isolation voltage rating of 1.5kV DC enhancing device and operator safety in sensitive electronics. It offers an MTBF (Mean Time Between Failures) of 2 million hours, reflecting its high reliability and suitability for continuous operation in industrial environments.

The unit achieves up to 79% efficiency, reducing energy losses and heat generation which is essential for maintaining performance and longevity. The device is rated to operate within a wide temperature range from -40°C up to +100°C, making it adaptable for use in demanding environments such as industrial controls, measurement instruments, and power supply modules.

Featuring standard physical dimensions (31.75 mm length, 20.32 mm width, and 10.16 mm depth), it fits conventional DIP sockets and board layouts. The 24-pin design and dual output capability support complex circuitry needing dual voltage rails or separated power domains.

Applications include industrial automation, control systems, telecommunications, and embedded computing where compact, reliable, isolated power conversion is critical. The through-hole mounting style ensures secure mechanical and electrical connections in demanding installations.

High isolation voltage of 1.5kV DC ensures safety and reliability. Compact DIP package with through-hole mounting for easy integration. Offers dual outputs supporting varied application needs. Built for industrial environments with MTBF of 2,000,000 hours.

Efficiency rating of 79% optimizes power usage and thermal performance. Operating temperature range supports harsh conditions from -40 °C to 100 °C. Industry standard dimensions: 31.75mm length, 20.32mm width, and 10.16mm depth.

Input ratio of 2:1 allows flexible voltage input within specified range. Reliable and compact power supply for electronic and industrial use. Explore our selection of electronic components and power converters at EnvMart for reliable industrial-grade power solutions.
