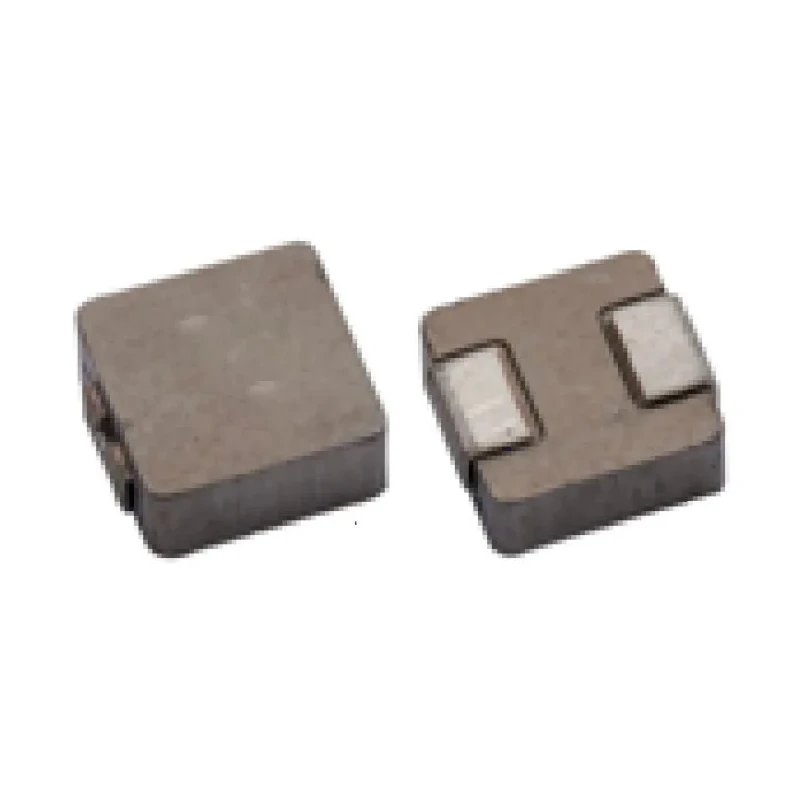

Abracon Shielded Surface Mount Inductor Iron Core 10 μH Flat Wire Winding ±20 % 7.8 A Idc ASPI-1040HI-100M-T05
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4mm |
| Length | 11.5mm |
| Model | ASPI-1040HI-100M-T05 |
| Depth | 4mm |
| Packaging | Tape & Reel |
| Series | ASPI-1040HI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 7.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 30mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Shielded design with iron core to reduce electromagnetic interference.
- Flat wire winding construction ensures low DC resistance and high efficiency.
- Surface mount package suitable for automated PCB assembly.
- Operating temperature range from -55°C to 125°C ensures reliability in harsh environments.
- Tape and reel packaging facilitates high volume manufacturing and assembly processes.
- Compact dimensions of 11.5 mm length, 4 mm height, and 4 mm depth optimize space on PCBs.
- RoHS compliant for environmental safety and regulatory conformity.
- Maximum DC resistance of 30 mΩ supports low power loss operation.
Product Description
Abracon ASPI-1040HI-100M-T05 shielded surface mount inductor features a robust iron core with a flat wire winding, designed to provide a 10 μH inductance with ±20% tolerance. This inductor supports a maximum DC current of 7.8 A, making it suitable for high current applications such as DC/DC converters used in notebooks, netbooks, desktops, servers, and other low profile, high current power supplies.
The device is manufactured with a shielded package that effectively reduces electromagnetic interference, enhancing circuit stability. Its flat wire winding construction provides low DC resistance of 30 mΩ and supports operation frequencies up to 3 MHz, ensuring high power efficiency and performance consistency.
Measuring 11.5 mm in length, 4 mm in height, and 4 mm in depth, this surface mount design fits compact PCB layouts and is compatible with reflow soldering processes. It comes packaged in tape and reel format, facilitating automated assembly in high-volume manufacturing environments.
Thermally rated for operation between -55°C and 125°C, this inductor guarantees reliable performance in a variety of environmental conditions. The product is RoHS compliant, meeting environmental protection standards.
Applications include power management in portable and stationary electronics, providing effective inductive filtering and energy storage in power regulation circuits. Shielded design with iron core reduces electromagnetic interference.
Flat wire winding construction offers low DC resistance and improved efficiency. Surface mount and tape & reel packaging suit modern manufacturing processes. Wide temperature range supports reliability in various conditions.
Compact size optimizes PCB space utilization. RoHS compliant for environmental safety. High saturation current capability supports demanding power applications. Suitable for DC/DC converters in notebooks, desktops, servers, and power supplies.
Frequency operation up to 3 MHz provides versatile use in modern electronics. Explore more products in the Surface Mount Inductors category at EnvMart for your electronics component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 7.8 A, making it suitable for high current applications.
It measures 11.5 mm in length, 4 mm in height, and 4 mm in depth, optimizing space on PCBs.
The maximum operating temperature for this inductor is 125°C, allowing it to function in high-temperature environments.
It comes packaged in tape and reel format, which facilitates automated assembly in high-volume manufacturing processes.
This unit features a flat wire winding construction, which ensures low DC resistance and high efficiency.
Yes, it is RoHS compliant, meeting environmental protection standards.
The core material used in this inductor is iron, which helps reduce electromagnetic interference.
The minimum operating temperature for this inductor is -55°C, ensuring reliability in cold environments.
It is suitable for power management in portable and stationary electronics, including DC/DC converters in notebooks and desktops.
The maximum DC resistance is 30 mΩ, supporting low power loss operation.
This model can operate at frequencies up to 3 MHz, making it versatile for modern electronics applications.
