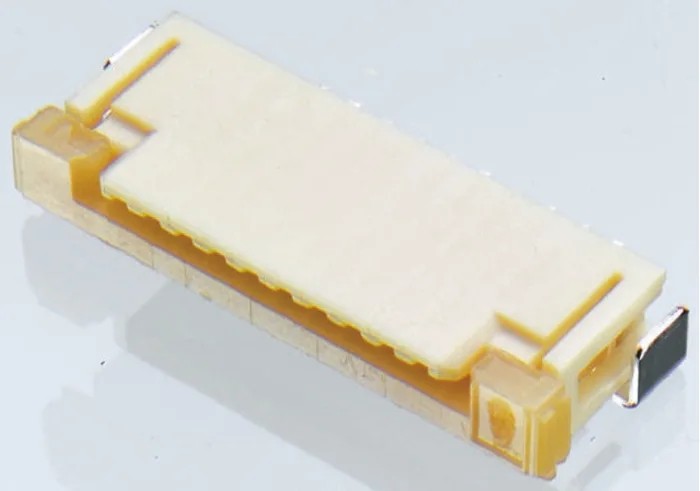

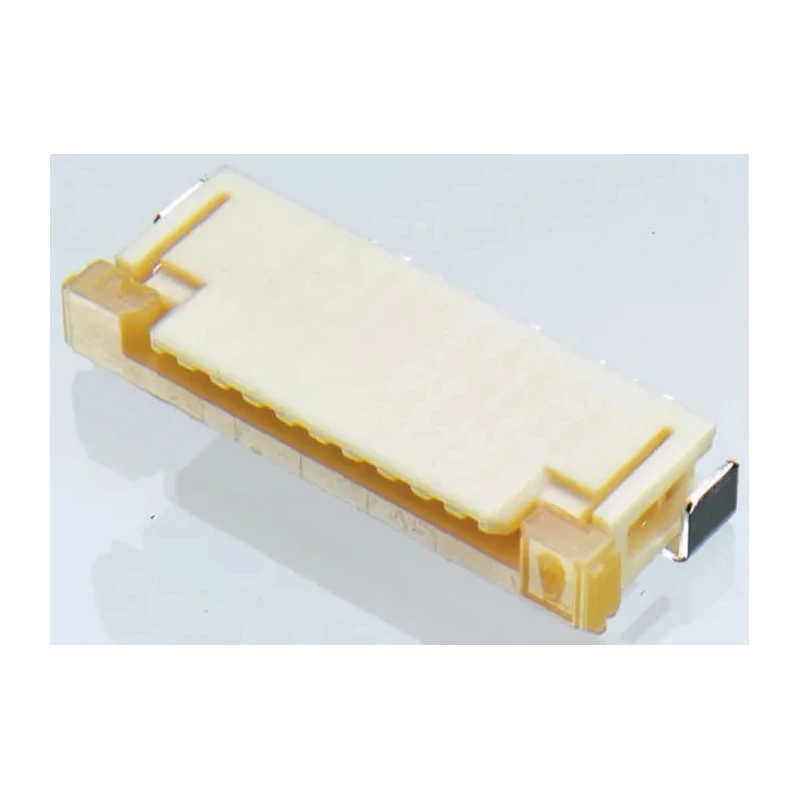

Molex 1 mm Pitch 27 Way Right Angle Female FPC Connector, Solder 52271-2769

Molex 52271-2769 is a 1 mm pitch 27 way right angle female FPC Connector designed for solder termination on PCB assemblies. It employs a Zero Insertion Force (ZIF) slide actuator system that facilitates easy FPC insertion while maintaining a secure and reliable electrical contact.

This connector is constructed with high-quality phosphor bronze contacts plated with gold over nickel for enhanced conductivity and longevity. The nylon housing provides excellent mechanical strength and insulation.

The right angle design aids in space-saving installations suitable for compact electronic devices. Solder tabs provide robust PCB retention and strain relief for the solder tail joints, which enhances mechanical stability during device operation.

Operating voltage rating is 50 VAC with a current carrying capacity of up to 500mA. It functions reliably across a wide temperature range from -20°C minimum to 85°C maximum, making it suitable for automotive, medical, consumer electronics, and telecommunications applications.

The connector features a single contact row and an effective locking mechanism that secures the connector under varying operational stresses. This makes it ideal for applications such as automotive navigation systems, digital cameras, tablets, notebooks, GPS devices, and smartphones.

The space-saving design optimizes limited PCB space areas. ZIF actuator extends connector life through minimal wear during repeated cycling. Slide type actuator permits smooth, secure connection and disconnection of FPCs.

Contact plating ensures high reliability and resistance to corrosion. Housing guides ensure proper alignment and insertion of the FPCs. Solder tabs provide mechanical strain relief and secure PCB mounting. Explore more high-quality electronic components and connectors in the Electronics Components category at EnvMart.
