Molex 1 mm Pitch 16 Way Right Angle Female FPC Connector, Solder 52271-1669

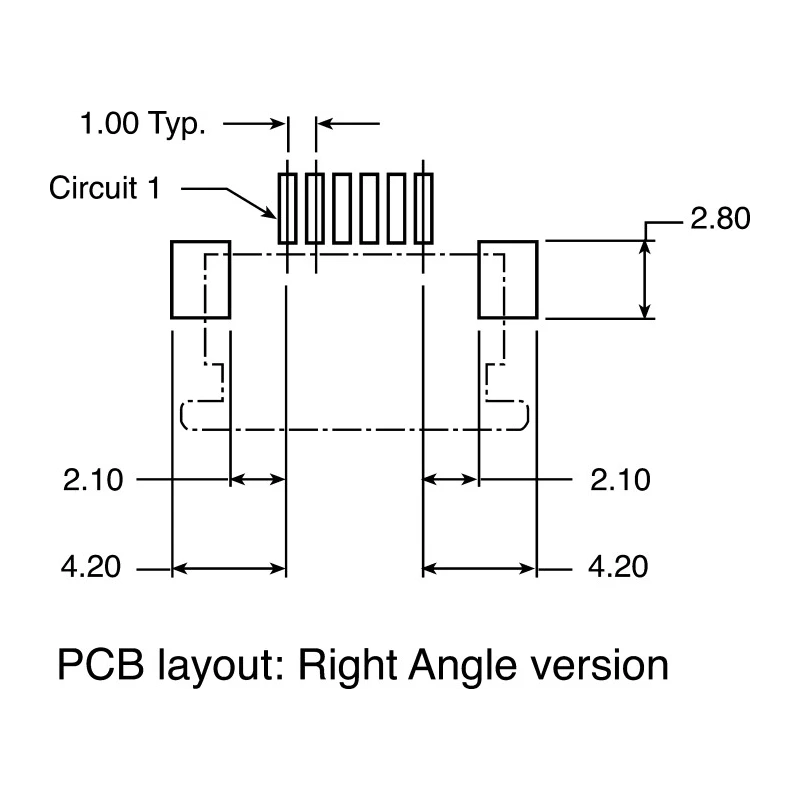

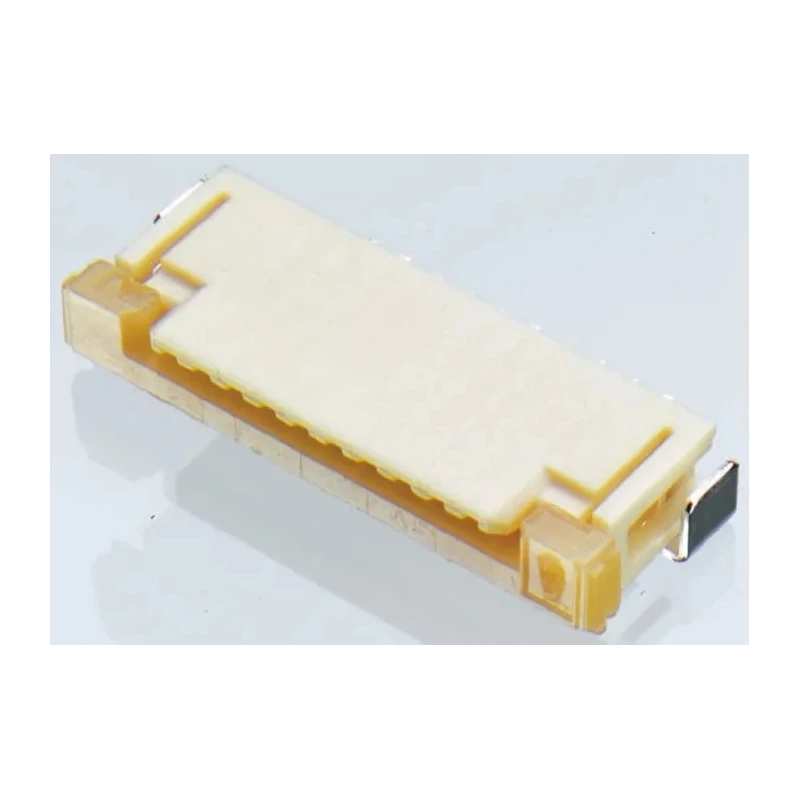

Molex 52271-1669 is a high-quality 1 mm pitch 16 way right angle female FPC connector with solder termination and ZIF (Zero Insertion Force) insertion type. Designed with a slide type actuator, this connector ensures secure and easy connection of flexible printed circuits. The connector contacts are made from phosphor bronze and plated with gold over nickel, guaranteeing excellent electrical conductivity and durability.

The connector housing is fabricated from nylon, providing mechanical strength and insulation suitable for industrial environments. Rated for 500mA current and 50V AC voltage, it operates efficiently within a temperature range of -20°C to 85°C. Its right angle orientation and surface mount make it ideal for tight packaging applications, saving PCB space while maintaining strong mechanical retention with solder tabs.

The locking mechanism secures the FPC in place, preventing accidental disconnections. The connector's bottom contact position and single row configuration accommodate precise layout requirements. Applications for this Molex FPC connector include automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, medical patient monitors, GPS units, smartphones, and other consumer electronics.

This connector is part of the Molex 52271 series, known for its easy-on ZIF design and reliable electrical performance. The slide actuator rotates 30° for effortless FPC insertion, and the movable contacts retain connection even during cable movement, ensuring consistent electrical contact. Overall, it is a versatile and dependable choice for various demanding electrical interconnection needs.

This FPC connector features a slide type actuator ensuring a secure connection and easy insertion of the FPC cable. It has phosphor bronze contacts plated with gold over nickel, providing reliable electrical conductivity.

The connector body is constructed from durable nylon material suited for various industrial applications. Rated for up to 500 mA current and 50 V AC voltage, it supports operation in temperatures ranging from -20°C to 85°C.

The right angle orientation and surface mount design save PCB space, ideal for compact electronics. Locking mechanism included to maintain stable contact during use and movement. Its bottom contact position and 1-row configuration fit precise design requirements.

These connectors are widely used in automotive, consumer electronics, medical devices, and mobile communications. Browse a wide range of FPC Connectors and related electronic components at EnvMart for your industrial, construction, or electronic manufacturing requirements.
