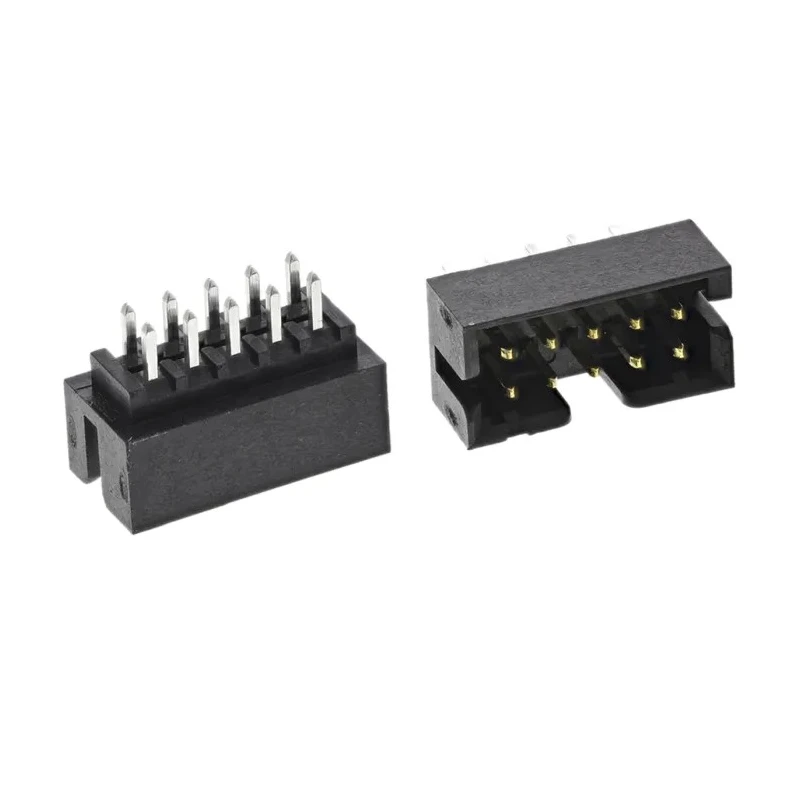

Molex Milli-Grid Series Straight Through Hole PCB Header 10 Contacts 2 mm Pitch 2 Row Shrouded 87831-1020

Molex 87831-1020 Milli-Grid Series Straight Through Hole PCB Header is a precision engineered wire-to-board connector designed for high density and reliable electrical contacts. Featuring 10 male contacts arranged in two rows and a 2 mm pitch, this shrouded connector protects pins from damage and prevents incorrect mating via its center polarization slot.

Manufactured with a nylon housing and phosphor bronze contacts plated with gold, the header ensures excellent conductivity and corrosion resistance suitable for demanding electronic applications. Its kinked solder tails guarantee firm retention to the PCB, while locating pegs support automated assembly processes.

Operating across a temperature range from -55°C to 105°C and with a voltage rating of 125V at 2A current, this PCB header is suited for signal applications where compact size and reliability are required. The center and side locking windows deliver stable mating with corresponding receptacles, enhancing connection security in industrial, automotive, computing, and telecommunications equipment.

Typical use cases include use in printers, fax machines, servers, routers, automotive audio systems, GPS units, security alarms, set-top boxes, and digital media players.

The Molex 2.0 mm Milli-Grid interconnection system is recognized for its versatility and density, widely adopted in wire-to-board and board-to-board applications, available in both vertical and right-angle configurations.

High-density 2.00 x 2.00 mm grid pattern for compact design flexibility. Shrouded housing protects the contacts from physical damage. Center polarization slot to prevent mismating. Side and center locking windows ensure secure mating connection.

Kinked solder tails for secure PCB retention. Locating pegs enable accurate automatic insertion. Durable nylon housing and gold-plated phosphor bronze contacts. Male, through-hole mounted contacts ensure robust connections.

Wide operating temperature range from -55°C to 105°C. Rated at 125V and 2A current for signal-level applications. Explore the extensive range of Molex PCB Headers and connectors available for industrial, electronic, and commercial applications at EnvMart.
