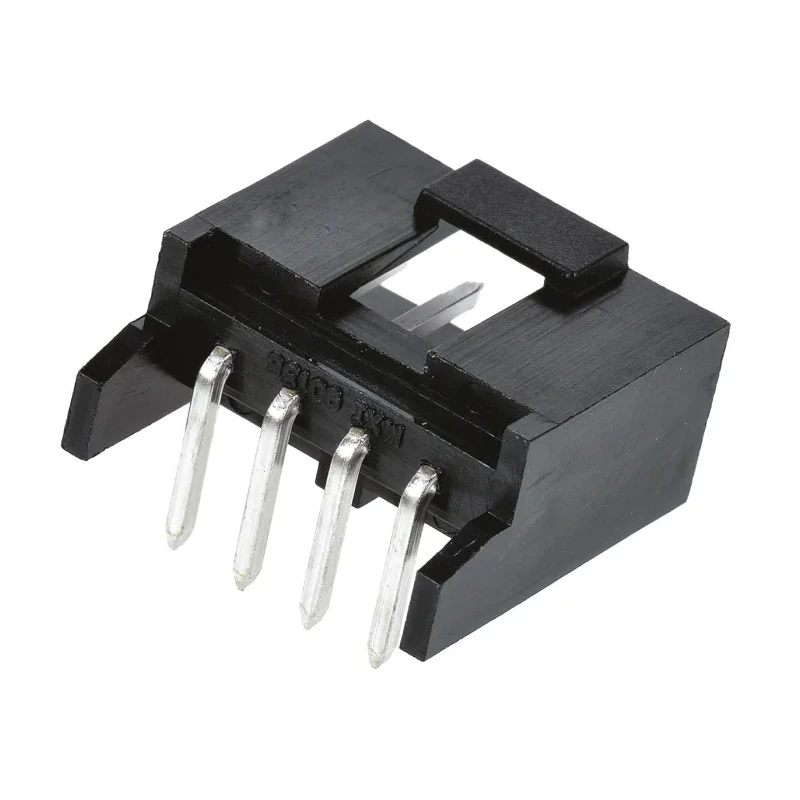

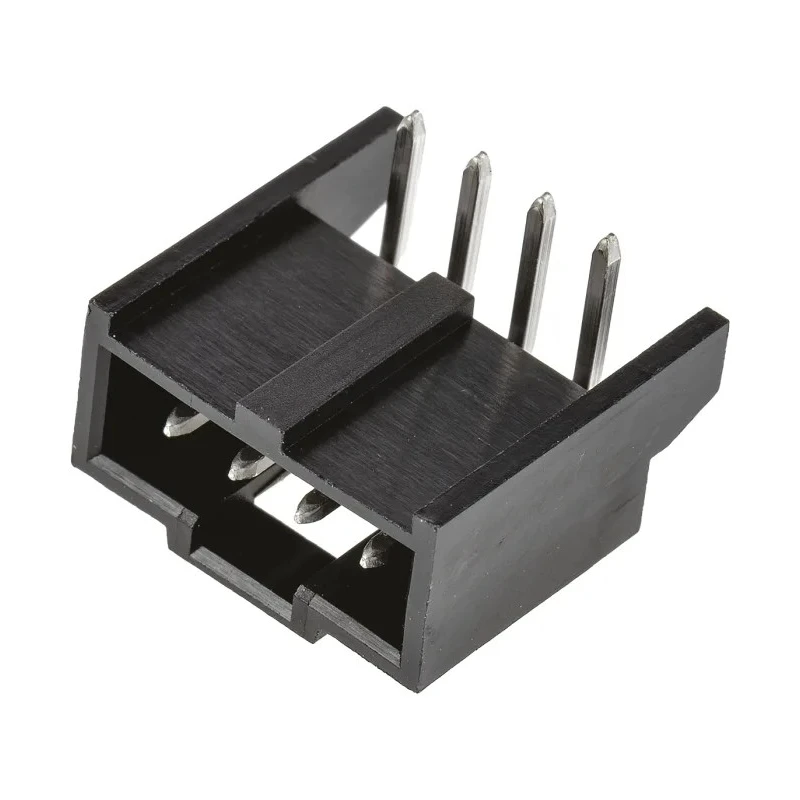

Molex C-Grid III Series Right Angle Through Hole PCB Header 4 Contact 2.54 mm Pitch 1 Row Shrouded 90136-2104

Molex 90136-2104 C-Grid III Series Right Angle Through Hole PCB Header is a compact and robust connector with 4 contacts arranged in a single row. It features a 2.54 mm pitch and is designed for wire-to-board applications requiring durability and reliable electrical performance.

The header's housing is made from high-strength polyester material and is shrouded to provide mechanical protection while preventing accidental contact with the pins. The contacts are crafted from brass with a tin plating that provides excellent conductivity and resistance against corrosion, ensuring stable connections over time.

This component supports a current rating of 3 amperes and can handle voltages up to 350 volts, making it suitable for various electronic and industrial applications. It operates reliably within a wide temperature range from -55 degrees Celsius to 125 degrees Celsius, accommodating harsh environments.

The right angle orientation facilitates easy PCB mounting using through-hole technology. The tail pins are 2.9 mm in length to enable robust solder termination. The mating pin length is 6.75 mm, designed to fit securely with corresponding female connectors.

This shrouded header is part of the Molex C-Grid III family, well known for compatibility with locking housings, enhancing connection security in critical applications.

Common industrial applications include PCB assemblies in consumer electronics, telecommunications, automotive electronics, industrial control systems, and other electronic manufacturing sectors requiring wire-to-board connections.

Features a single row of 4 male contacts for secure mating connections. Constructed with a durable polyester housing that is shrouded for protection. Contact material is brass with tin plating to ensure conductivity and corrosion resistance.

Supports a current rating of 3A and voltage rating up to 350V. Operates reliably within a temperature range of -55°C to 125°C. Right angle orientation suitable for PCB mounting through-hole applications. Tail pin length is 2.9 mm for effective solder termination.

Designed to mate with locking housings within the Molex C-Grid III series. Explore more high-quality PCB connectors and electronic components available on EnvMart to support your engineering and manufacturing needs.
