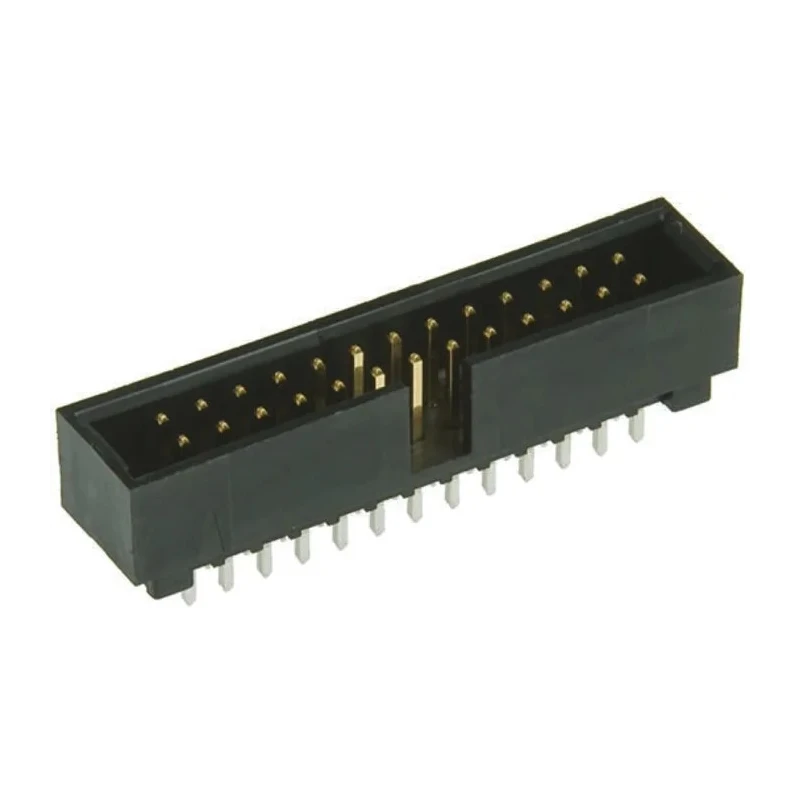

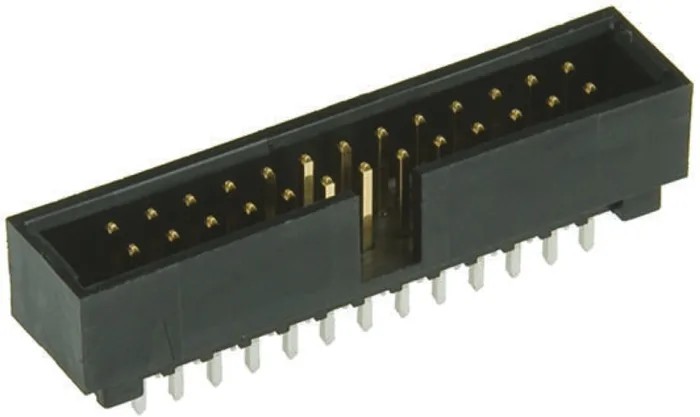

Molex C-Grid Series Straight Through Hole PCB Header, 24 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70246-2401

Molex 70246-2401 C-Grid Series Straight Through Hole PCB Header is a high-quality connector designed for wire-to-board applications requiring reliable electrical connections. Featuring 24 gold-plated phosphor bronze contacts in a dual row configuration with 2.54 mm pitch, it ensures superior conductivity and mechanical stability.

The housing is constructed from durable polybutylene terephthalate material providing excellent insulation and resistance to environmental factors. The through hole mounting type guarantees secure attachment to printed circuit boards, making it suitable for industrial and commercial electronics manufacturing.

Rated for 2.5A at 250V, this connector operates reliably over a broad temperature range from minus 55°C to 120°C, accommodating demanding applications in fields such as industrial automation, telecommunications, and instrumentation.

The shrouded, straight orientation design protects contacts against damage and misalignment, with male contact gender and solder termination facilitating easy assembly and maintenance. Contact tail pins measure 3.43 mm in length with mating pins at 6.1 mm, supporting robust electrical and mechanical connections.

This Molex PCB header is compatible with 70058 Series terminals and is ideal for use in electronic component assemblies, power connectors, and PCB wiring harnesses. Its certified quality and precision manufacturing uphold consistent performance in diverse environments.

Offers 24 gold-plated phosphor bronze contacts for reliable conductivity. Features polybutylene terephthalate housing ensuring durability and insulation. Mount type is through hole for stable PCB integration. Rated for 2.5A current at 250V voltage capacity.

Operates within a temperature range of -55°C to 120°C. Includes male contact gender with solder termination type. Contact tail pin length is 3.43 mm, mating pin length is 6.1 mm. Connector is shrouded and oriented straight to protect contacts and ensure correct mating.
