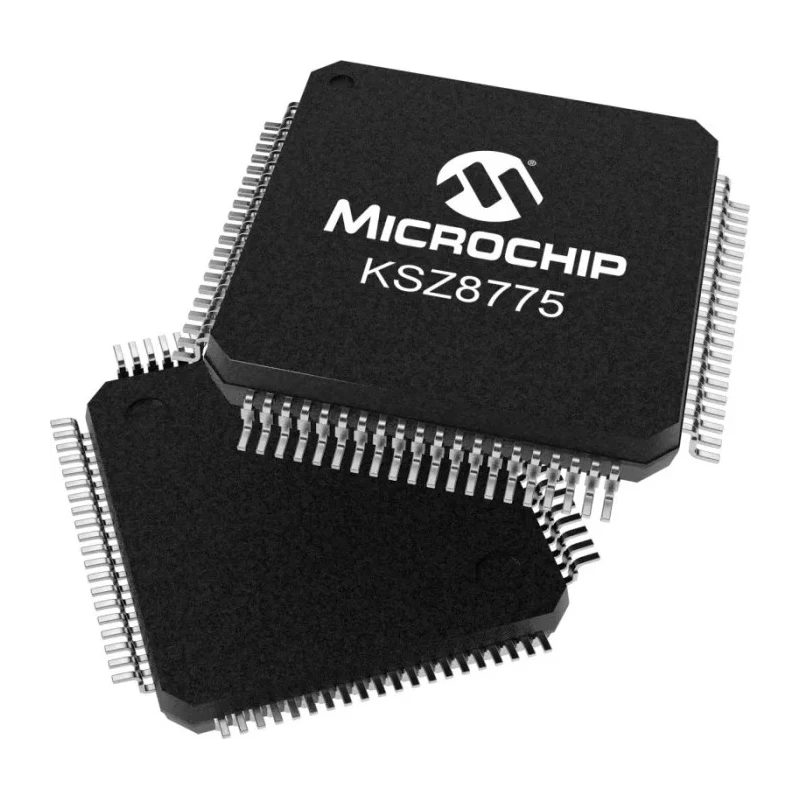

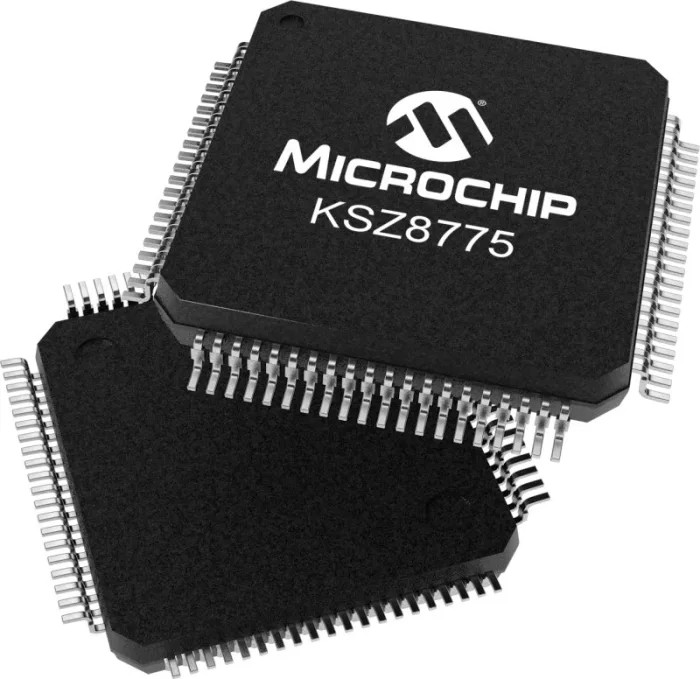

Microchip 80-Pin LQFP Ethernet Switch IC 3.3 V 100 Mbps RMII RGMII MII Full Duplex/Half Duplex KSZ8775CLXIC

Microchip KSZ8775CLXIC Ethernet Switch IC is a highly integrated Layer 2-managed five-port switch designed for cost-sensitive applications requiring efficient networking solutions. It supports three 10/100 Mbps copper ports, one RMII on Port 4, and one 10/100/1000 Mbps Gigabit uplink port on Port 5, making it suitable for industrial and commercial network environments.

This device is housed in a compact 80-pin LQFP package, operating with a supply voltage range from 3.3 V up to a maximum of 3.46 V. It functions reliably over a temperature range of -40°C to 85°C, suitable for harsh industrial conditions.

Key performance enhancements include the lowest power consumption achieved through internal biasing, on-chip termination for signal integrity, and advanced power management features. The switch fabric utilizes shared memory architecture with non-blocking support ensuring high-performance data throughput.

Networking features such as programmable rate limiting, priority ratio controls, port-based security, ACL rule-based packet filtering, and QoS priority with four queues enable robust, customizable network traffic management. The device supports multiple interface types including RMII, RGMII, and MII for versatile connectivity.

Management interfaces and enhanced MIB counters provide in-depth monitoring and diagnostics, critical for maintenance in industrial, manufacturing, and networking infrastructure applications. The KSZ8775CLXIC complies with RoHS standards, ensuring environmental and safety compliance.

This Ethernet Switch IC is ideal for use in industrial automation systems, telecommunications equipment, commercial networking devices, and other applications demanding reliable and efficient network switching capabilities.

Supports full duplex and half duplex communication modes for flexible data transmission. Four integrated transceivers support various Ethernet interface standards. Compact 80-pin LQFP package enables space-efficient PCB designs.

Operates with low power consumption and includes advanced power management features. Supports VLAN, ACL-based packet filtering, and advanced QoS features. Wide operating temperature range for industrial applications. Includes management interfaces for device monitoring and diagnostics.

Complies with RoHS environmental standards. Supports 100 Mbps maximum data rate with multiple interface types. Shared memory-based non-blocking switch fabric ensures high performance. Explore more semiconductor and Ethernet Interface Ics on EnvMart for diverse industrial and commercial applications.
