Murata Power Solutions 1W Isolated SIP-7 DC/DC Converter 5V DC Output 200mA 4.5V-5.5V Input Through Hole Mount NMR100C

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 1W Isolated SIP-7 DC/DC Converter 5V DC Output 200mA 4.5V-5.5V Input Through Hole Mount NMR100C

Name: Murata Power Solutions 1W Isolated SIP-7 DC/DC Converter 5V DC Output 200mA 4.5V-5.5V Input Through Hole Mount NMR100C
Brand: Murata Power Solutions
SKU: 212511
Price: 9.11 USD
Availability: InStock



Category DC/DC Converter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Voltage	Converters / DC-DC Converters Murata Power Solutions NMR DC/DC Converter, 5V dc/
Brand	Murata Power Solutions
Efficiency	69%
Length	19.5mm
Model	NMR100C
Depth	10mm
Gross Weight	2.1g
Width	19.5mm
Mount Type	Through Hole
Series	NMR
Maximum Operating Temperature	85°C
Package Type	SIP
Minimum Operating Temperature	-40°C
MTBF	1847000h
Number of outputs	1
Ripple and Noise	10mV Pk-Pk
Maximum Output Power	1W
Maximum Input Voltage	5.5V dc
Standards/Approvals	RoHS
Minimum Input Voltage	4.5V
Number of Pins	7
Output Voltage 1	5V dc
Output Current 1	200mA
Isolation Voltage	1kV dc

Key Features

Operates with input voltage range of 4.5V to 5.5V DC.
Through hole mount type for easy PCB installation.
Compact SIP-7 package with dimensions 19.5mm x 19.5mm x 10mm.
High isolation voltage of 1kV DC for reliable performance.
Low ripple and noise of 10mV Peak-Peak to ensure signal integrity.
MTBF rating of 1,847,000 hours indicating long operational life.
Operating temperature range from -40°C to +85°C for harsh environments.
Efficiency of approximately 69% to optimize power usage.

Product Description

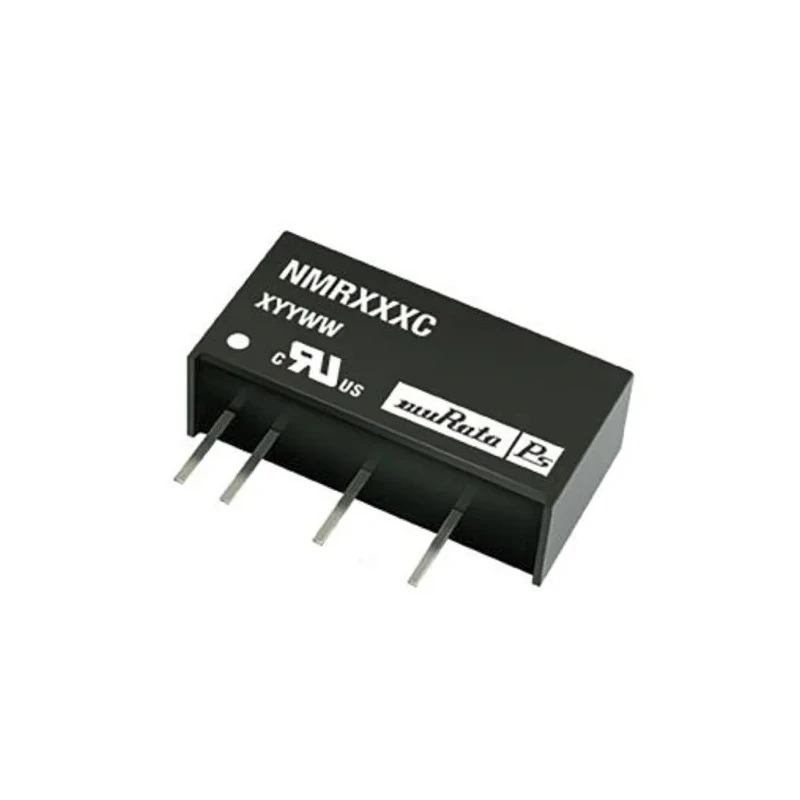

Murata Power Solutions NMR100C is a 1 watt isolated DC/DC converter designed with a single output of 5V DC at 200mA output current. It accepts an input voltage ranging from 4.5V DC to a maximum of 5.5V DC, making it suitable for low voltage applications.

This converter features a through hole SIP-7 package measuring 19.5mm in length, 19.5mm in width, and a depth of 10mm, allowing for compact PCB mounting and integration in tight spaces.

The NMR100C delivers excellent performance with a high isolation voltage of 1kV DC, providing robust electrical separation to sensitive circuits. It maintains low ripple and noise at 10mV peak-to-peak, ensuring stable output and signal integrity essential for sensitive electronic devices.

Designed for durability, it operates reliably within a wide temperature range of -40°C to +85°C, making it well suited for industrial, commercial, laboratory, and embedded system uses requiring temperature tolerance. Its MTBF (Mean Time Between Failures) is rated at 1,847,000 hours, highlighting its long-term reliability.

The converter’s package is fully encapsulated using UL 94V-0 compliant materials, enhancing safety and protecting against environmental factors. Single 5V DC output at 200mA output current. Input voltage range: 4.5V to 5.5V DC.

Through hole SIP-7 package form factor. Isolation voltage: 1kV DC. Low ripple and noise of 10mV Pk-Pk. MTBF of 1,847,000 hours. Operating temperature -40°C to +85°C. Efficiency approximately 69%. Fully encapsulated UL 94V-0 rated package.

This DC/DC converter is extensively used in electronic devices requiring stable power conversion with isolation, including industrial control systems, communication devices, and embedded electronics. Its high reliability and safety features make it ideal for demanding environments.

Choose Murata Power Solutions for trusted power conversion technology. Explore the full range of DC/DC Converters in the Electronics & Electricals category at EnvMart.
