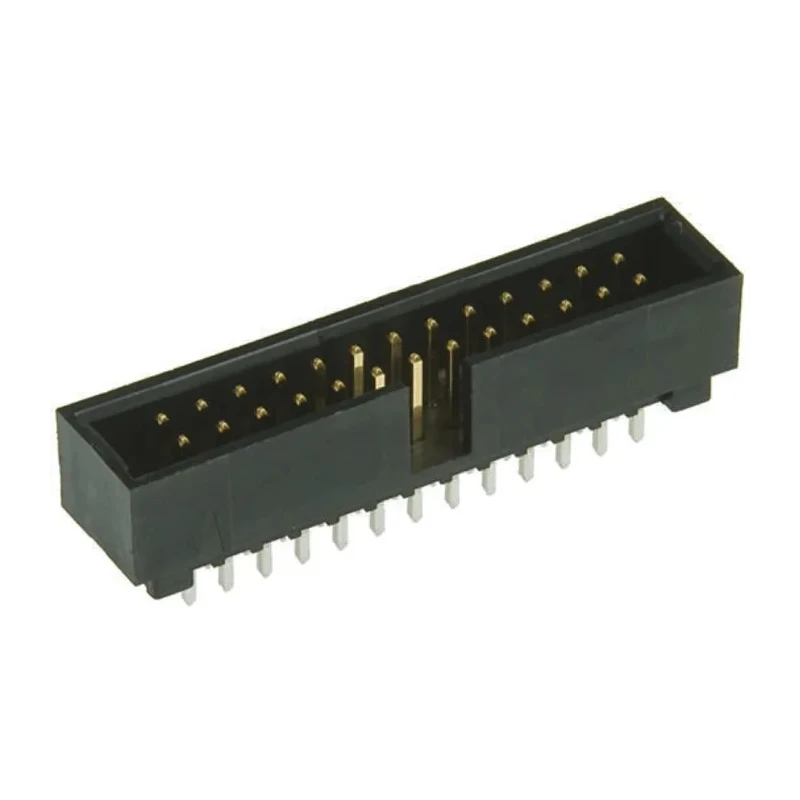

Molex C-Grid Series Straight Through Hole PCB Header, 24 Contact, 2.54 mm Pitch, 2 Row, Shrouded 70246-2401

Molex 70246-2401 PCB Header from the C-Grid Series is a straight, through hole connector featuring 24 male contacts arranged in 2 rows with a precise 2.54 mm pitch. This shrouded header is designed to ensure secure wire-to-board connections in a variety of electronic applications requiring high reliability and durability.

The housing is made from Polybutylene Terephthalate (PBT), a robust thermoplastic polymer known for its excellent mechanical strength and high temperature resistance. The contacts are crafted from phosphor bronze and plated with gold, offering superior conductivity and resistance to corrosion, ensuring long-term performance under rigorous conditions.

This product supports a voltage rating of 250 V and a current rating of 2.5 A, and is capable of operating reliably in temperatures ranging from -55°C up to 120°C. The shrouded design provides additional protection and aids in proper connector alignment while mating. Suitable for through-hole solder mounting, the header features tail pin lengths of 3.43 mm and mating pin lengths of 6.1 mm, facilitating easy integration onto PCBs.

Molex 70246-2401 is ideal for use in industrial electronics, power connectors, and electronic component assemblies that demand precision and durability. The product mates typically with 70058 Series terminals for seamless integration.

Includes 24 male contacts arranged in 2 rows for secure connections. 2.54 mm pitch ensures standard compatibility. Durable Polybutylene Terephthalate housing provides high heat resistance. Phosphor Bronze contact material with gold plating enhances conductivity and corrosion resistance.

Through-hole mount type with solder termination for robust installation. Wide operating temperature range from -55°C to 120°C. Rated for 250 V and 2.5 A current. Shrouded configuration protects contacts and ensures alignment.

Tail pin length: 3.43 mm, mating pin length: 6.1 mm.

Engineered for demanding industrial, electronic, and power distribution applications, this PCB header provides reliable performance and easy assembly. Suitable for enhancing production efficiency in electronic manufacturing environments.

Explore the range of Molex PCB Headers and connectors at EnvMart for optimum electronic connectivity solutions.
