Amphenol Communications Solutions Delta D 9 Way Right Angle 2.74 mm Pitch Plug-in D-Sub Connector with Screw D09P33E6GV00LF

Free Delivery in India | Lowest Global Shipping Charges

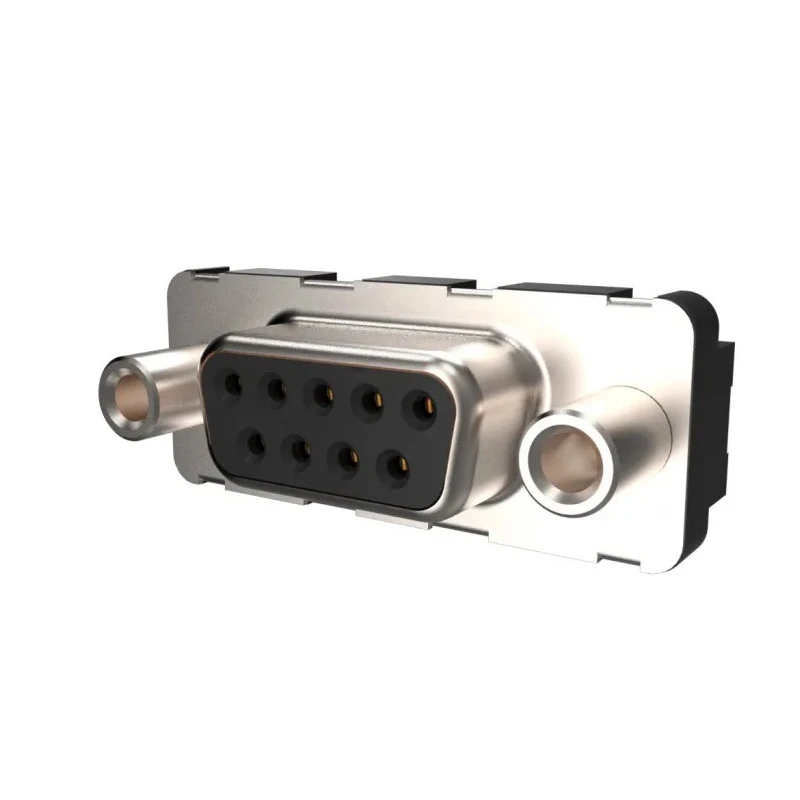

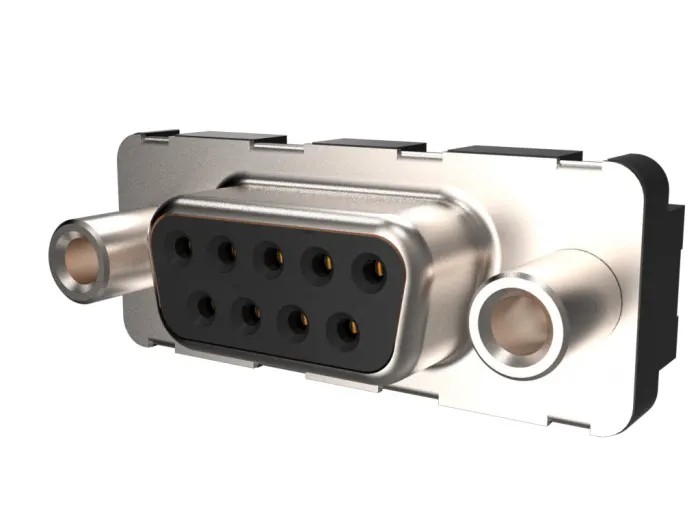

Amphenol Communications Solutions Delta D 9 Way Right Angle 2.74 mm Pitch Plug-in D-Sub Connector with Screw D09P33E6GV00LF

Name: Amphenol Communications Solutions Delta D 9 Way Right Angle 2.74 mm Pitch Plug-in D-Sub Connector with Screw D09P33E6GV00LF
Brand: Amphenol Communications Solutions
SKU: 208803



Category D-Sub Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Amphenol Communications Solutions
Orientation	Right Angle
Current	5A
Model	D09P33E6GV00LF
Mount Type	Plug-in
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	Delta D
Mounting Hardware	Screw
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Contact Plating	Gold over Nickel
Number of Contacts	9
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	E

Key Features

Features 9 brass contacts with gold over nickel plating for excellent conductivity.
Rated for 5 amperes current and 300 volts operating voltage.
Constructed with polybutylene terephthalate housing for durability and high temperature resistance.
Right angle orientation supports solder termination type.
Operating temperature ranges from -55° to 125°C, suitable for harsh environments.
Mount type is plug-in with screw mounting hardware for secure installation.
Meets DIN 41652 and MIL-C-24308 dimensional standards for D-Sub connectors.
Ideal for telecommunications, data, industrial, military, aerospace, instrumentation and medical applications.

Product Description

Amphenol Communications Solutions D09P33E6GV00LF Delta D 9 Way Right Angle 2.74 mm Pitch Plug-in D-Sub Connector is engineered for robust and reliable interconnect solutions in various industrial and electronic applications. This male connector features 9 brass contacts with gold over nickel plating that ensures consistent electrical conductivity and corrosion resistance. The housing material is polybutylene terephthalate, offering high mechanical strength and thermal stability.

The connector supports a rated current of 5A and can operate at voltages up to 300V. It is designed with a right angle orientation and uses solder termination for secure and efficient connection. Mounting is facilitated by screw hardware ensuring firm attachment to panels or cables.

Operating temperature ranges from -55°C to 125°C make this connector suitable for harsh and demanding environments, including aerospace and military applications requiring high temperature tolerance. The connector conforms to standard dimensional benchmarks DIN 41652 and MIL-C-24308, guaranteeing compatibility with a wide range of existing systems and devices.

This Delta D 9 Way D-Sub connector is widely used in telecommunications, data transfer, industrial machinery, military hardware, instrumentation, and medical equipment, providing versatility and quality performance. Its design includes a delta shell size 'E' with a pitch of 2.74 mm, offering precision in fit and function.

Features 9 brass contacts with gold over nickel plating for reliable conductivity. Rated for 5A current and 300V voltage operation. Polybutylene terephthalate housing for durability and heat resistance. Right angle plug-in type with screw mounting.

Operates in temperatures from -55°C to 125°C. Complies with DIN 41652 and MIL-C-24308 standards. Suitable for telecommunications, industrial, military, aerospace, and medical applications. Delta D series with shell size E and 2.74 mm pitch.
