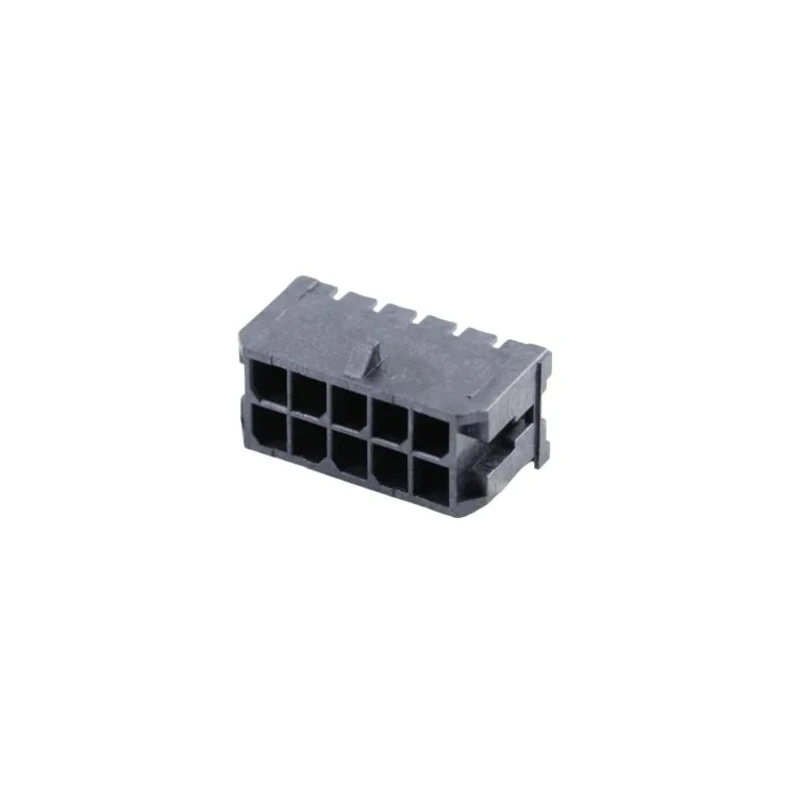

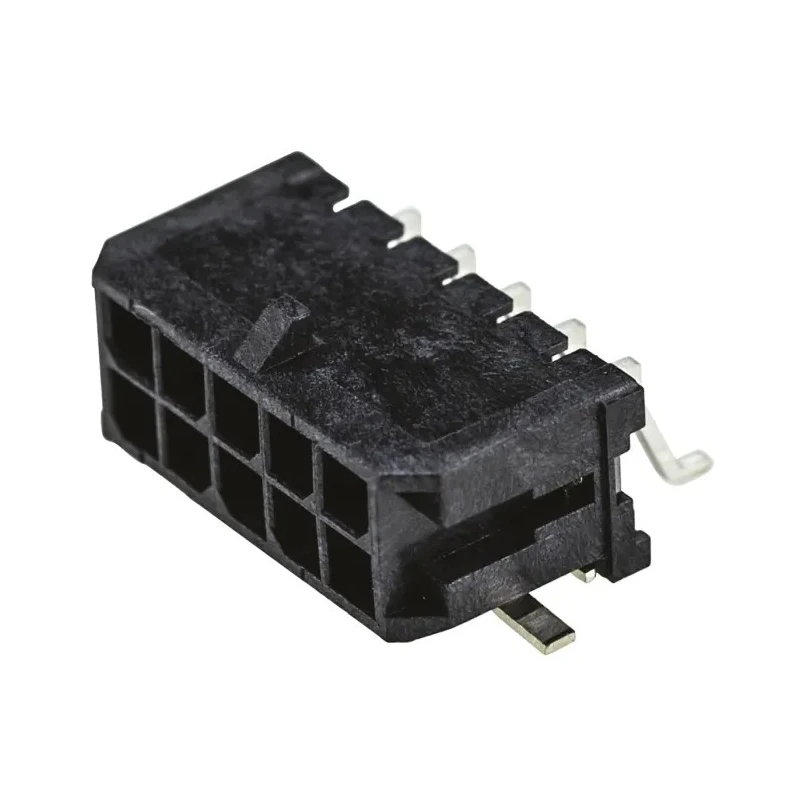

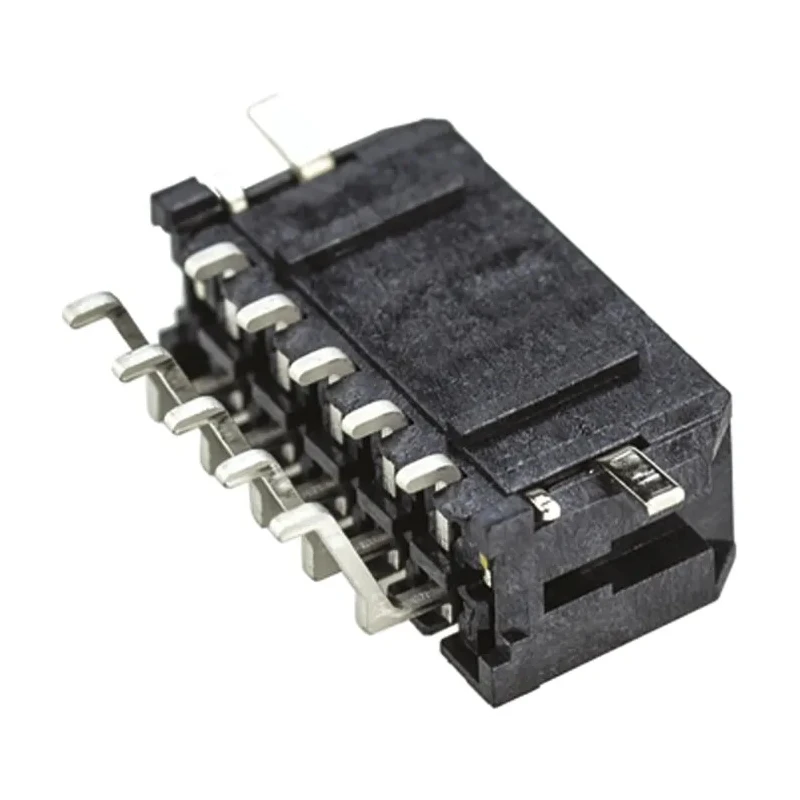

Molex 43045 Series Right Angle Surface PCB Header, 10 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-1010

Free Delivery in India | Lowest Global Shipping Charges

Molex 43045 Series Right Angle Surface PCB Header, 10 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-1010

Name: Molex 43045 Series Right Angle Surface PCB Header, 10 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-1010
Brand: Molex
SKU: 206563



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Right Angle
Current	8.5
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	43045
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Features a shrouded design that protects pins from mechanical damage.
High current rating of 8.5A suitable for power and signal applications.
Constructed with brass contacts plated in gold for corrosion resistance and superior conductivity.
Designed for surface mount technology with solder termination type.
Operates safely between -40°C and 125°C for diverse environments.
Right angle orientation optimizes PCB space.
Supports voltage rating up to 600V for high voltage applications.
Dual row configuration with 10 male contacts and 3 mm row pitch.

Product Description

The Molex 43045-1010 is a high-performance right angle surface mount PCB header connector featuring a 3 mm pitch and 10 contacts arranged in two rows. Manufactured from durable thermoplastic housing with brass contacts plated in gold, this shrouded PCB header ensures reliable electrical connections and prevents pin damage during handling and installation.

This connector supports high current ratings up to 8.5 amperes and a maximum operating voltage of 600 volts, making it suitable for power distribution and signal transmission in various industrial, automotive, electronic control, and appliance applications. Its temperature range of -40°C to 125°C ensures dependable use in demanding environments.

The right angle orientation allows efficient use of PCB real estate, especially in compact designs. Designed for surface mount solder termination, it guarantees secure mechanical and electrical contacts. Its wire-to-board connector system compatibility offers versatile integration options.

Additional features include excellent corrosion resistance due to gold plated brass contacts, compatibility with glow wire safety tests, and rated durability for up to 30 mating cycles, providing a long service life for multiple re-connections.

Shrouded design protects pins from damage during insertion and handling. Gold plating ensures low contact resistance and oxidation resistance. Supports high current and voltage levels for robust power applications. Thermoplastic housing provides mechanical strength and heat resistance.

Surface mount termination offers reliable and consistent mounting. Right angle orientation saves PCB space. Dual row layout with 10 male contacts and 3 mm pitch spacing. Temperature range supports harsh environmental conditions.

Rated for up to 30 mating cycles. Suitable for power management, automotive electronics, and industrial control units.

This Molex PCB header 43045 Series is ideal for electronic manufacturing, automotive control systems, industrial automation, and appliance wiring, where dependable, compact, and high-performance connectors are required. Discover more in the PCB Headers category at EnvMart for advanced interconnection solutions.
