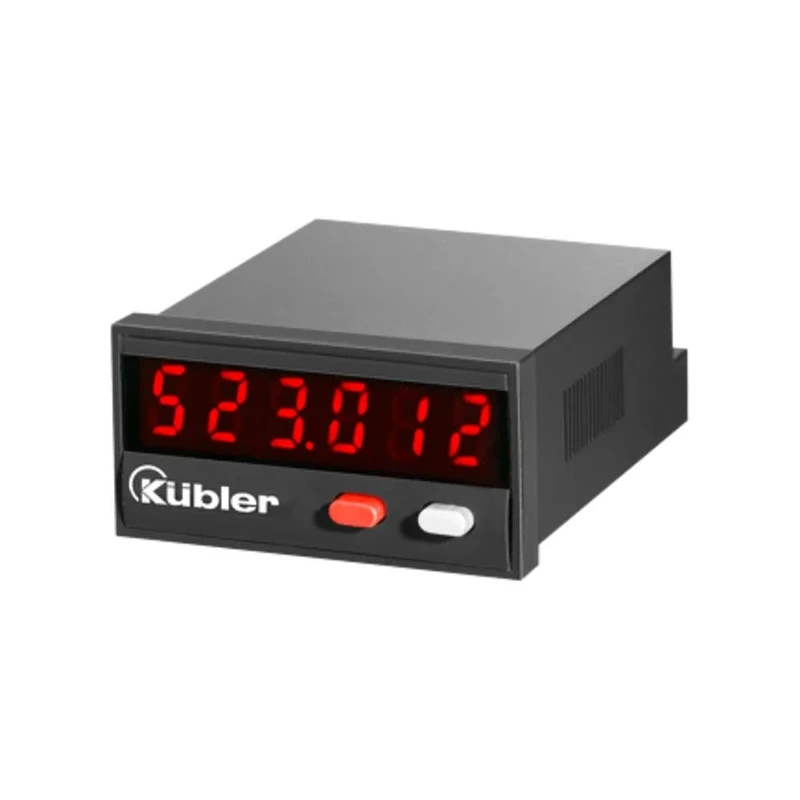

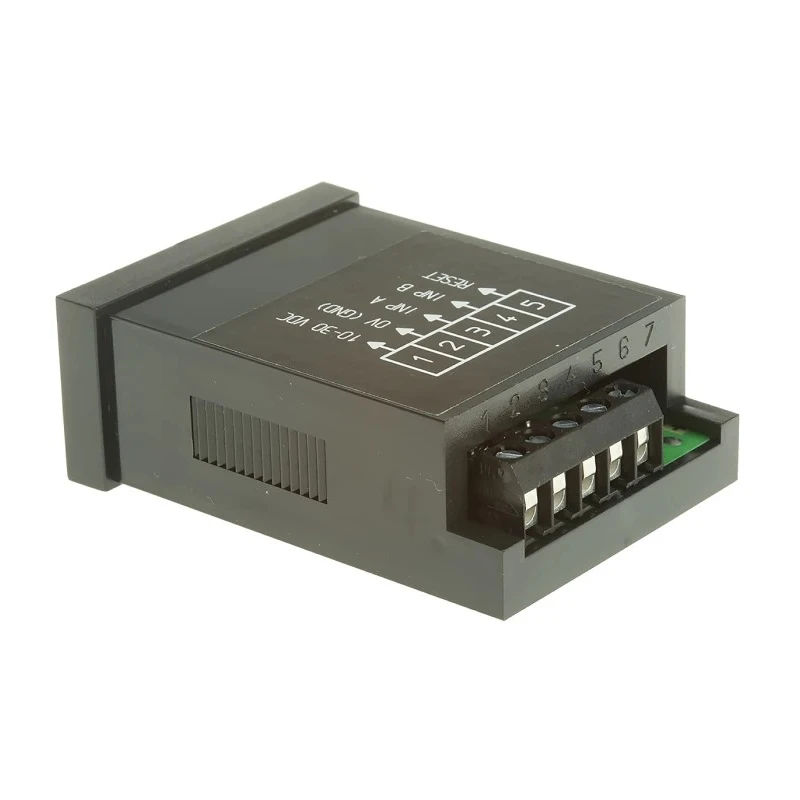

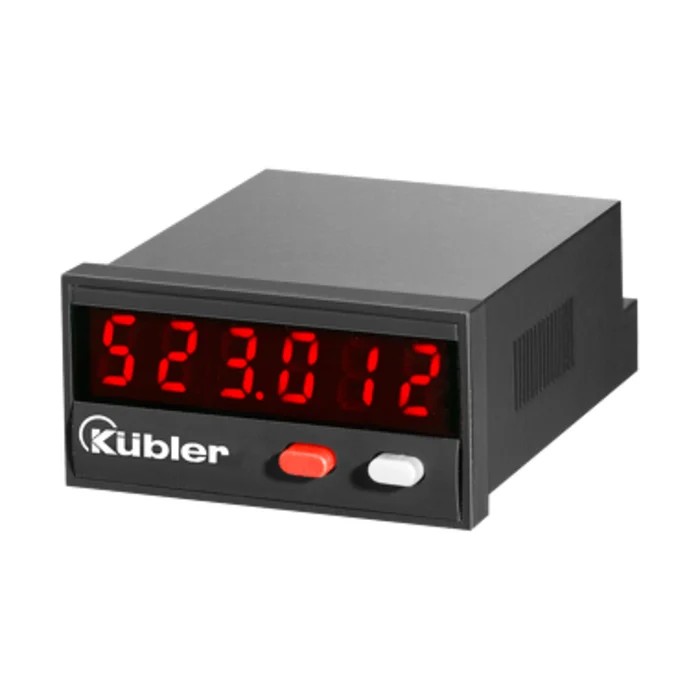

Kubler CODIX 523 Digital Hour Meter Counter 6 Digit LED Display Frequency Count Mode Panel Mount 30V dc 60kHz 6.523.012.300
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | LED |
| Brand | Kubler |
| Function | Hour Meter |
| Connection Type | Screw |
| Depth | 59mm |
| Gross Weight | 50g |
| Mount Type | Panel Mount |
| Series | CODIX 523 |
| Maximum Operating Temperature | 55°C |
| Number Of Digits | 6 |
| Minimum Operating Temperature | -20°C |
| Digit height | 8mm |
| Cutout Height | 25mm |
| Cutout Width | 50mm |
| Count Mode | Frequency |
| Maximum Supply Voltage | 30V dc |
| Maximum Count Frequency | 60kHz |
| Minimum Measurement | 0 to 999999 |
| Maximum Measurement | 999999 |
| HOUR MTR/SHORT PER TIMERBrand | NEUTRAL |
| Kubler CODIX 524, Counter, 6 Digit LED, 60 kHz 30V dcBrand | Kubler |
| Kubler CODIX 135 Timer, Counter, 8 Digit LCD 260V ac/dcBrand | Kubler |
Key Features
- Designed for panel mounting with screw connection for secure installation.
- Operates over a voltage range of 10V to 30V DC ensuring wide compatibility.
- 6 digit LED display with 8mm digit height for clear readability.
- Suitable for operation between -20°C to 55°C temperature range.
- Panel cut-out dimensions are 25mm height by 50mm width for fitting.
- Measurement range from 0 to 999,999 providing extensive counting capacity.
- Features programmable parameters with manual or electrical reset options.
- Includes selectable decimal point and optional 1Hz clock pulse output.
Product Description
Kubler 6.523.012.300 CODIX 523 series digital hour meter counter features a 6-digit LED display with frequency count mode up to 60kHz. It is a panel-mount device designed for precise hour measurement and pulse counting with a screw connection interface. The meter operates on supply voltages ranging from 10V to 30V DC, making it compatible across various industrial applications.
The display digits have a height of 8mm to ensure excellent visibility, and the meter supports measurement ranges from 0 to 999,999 counts. It includes programmable parameters accessible using two front keys, allowing decimal point selection, start/stop function adjustment, and manual/electrical reset options.
With operating temperatures from -20°C to 55°C, the unit is robust for use in diverse environmental conditions. The panel mount cut-out dimensions are 25mm height and 50mm width with a device depth of 59mm, facilitating easy installation in control panels. The compact meter weighs approximately 50 grams.
The optional 1Hz output clock pulse enables synchronization or external monitoring in active time measurements. This German-manufactured hour meter provides reliable and accurate digital counting, ideal for electronic and industrial automation systems.
Designed for panel mount with screw connection. 6 digit LED display with frequency count mode up to 60kHz. Operates on 10 - 30V DC supply voltage. Measurement range from 0 to 999,999 counts. Programmable parameters with decimal point selection and reset functions.
Operating temperature range -20°C to 55°C. Compact dimensions and lightweight design. Optional 1Hz clock pulse output for active time measurement. Explore more industrial Electronic Counters and hour meters at EnvMart to enhance your automation and monitoring requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this model is from 0 to 999,999 counts, providing extensive counting capacity.
It can handle a maximum frequency count of 60kHz, suitable for various applications requiring pulse counting.
This device operates on a supply voltage range of 10V to 30V DC, ensuring compatibility across various industrial applications.
The panel cut-out dimensions for this model are 25mm in height and 50mm in width, facilitating easy installation.
It operates effectively within a temperature range of -20°C to 55°C, making it suitable for diverse environmental conditions.
The hour meter features a 6-digit LED display with a digit height of 8mm, ensuring clear readability.
It utilizes a screw connection type for secure installation in control panels.
Yes, it includes programmable parameters that allow for decimal point selection and manual or electrical reset options.
This model weighs approximately 50 grams, making it lightweight for easy handling during installation.
The depth of this unit is 59mm, which is important for ensuring it fits properly in the designated panel space.
It offers an optional 1Hz clock pulse output, which enables synchronization or external monitoring in active time measurements.
This product is manufactured in Germany, reflecting its quality and engineering standards.
