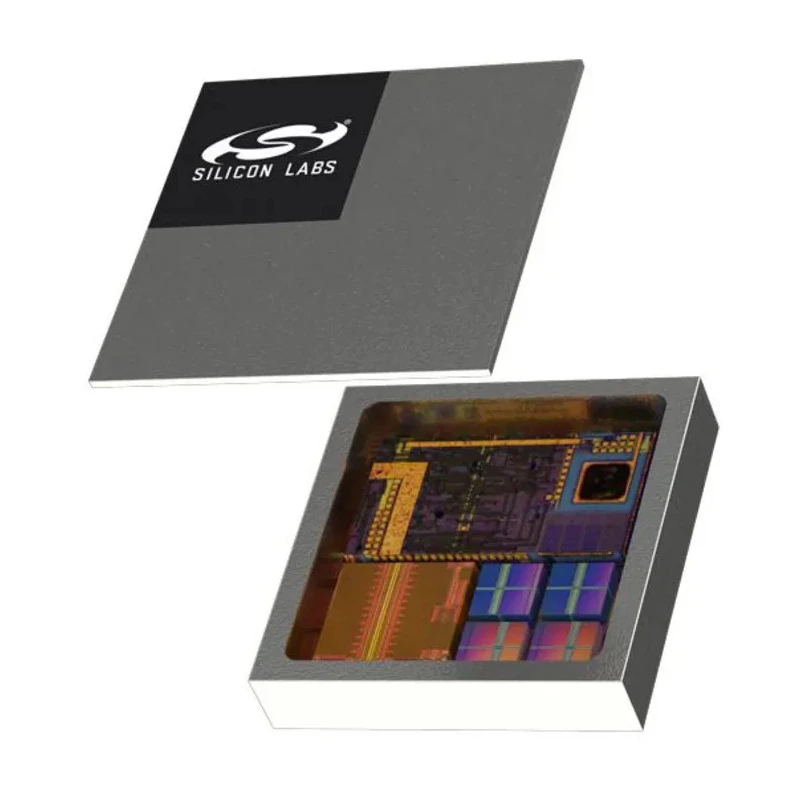

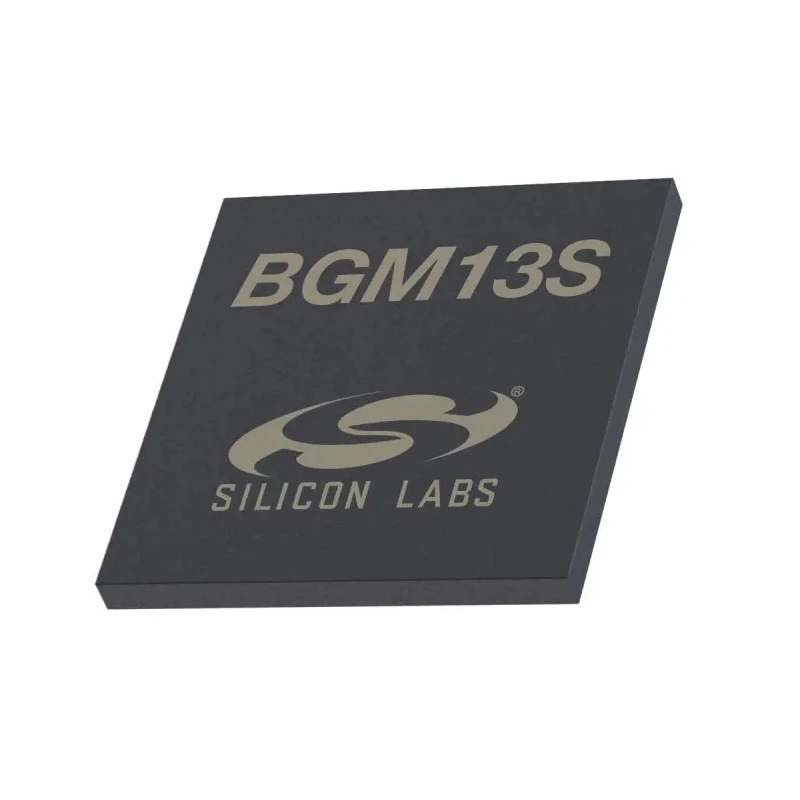

Silicon Labs Bluetooth Module BGM13S32F512GA-V3 5.0, Class 3, 2Mbps Data Rate, 2.4GHz Frequency BGM13S32F512GA-V3

Silicon Labs BGM13S32F512GA-V3 Bluetooth Module 5.0 is a compact and powerful wireless communication device designed to add Bluetooth 5 LE and Bluetooth mesh capabilities to electronic designs easily and efficiently. Featuring Class 3 Bluetooth with a data rate up to 2Mbps, this module supports high throughput and long-range communications compliant with modern wireless standards.

Operating at a frequency of 2.4GHz, the module delivers a maximum output power of 19dBm and a receiver sensitivity of -102.1dBm, enabling strong and reliable connectivity in various industrial and commercial applications. Its compact package with dimensions of 6.5mm by 6.5mm by 1.4mm and minimal PCB area requirement of just 51 mm² including antenna clearance makes it ideal for space-constrained designs.

The module operates over a wide temperature range from -40°C to 85°C and supports supply voltages between 1.8V and 3.8V. Integration is simplified as it contains all necessary external components, including an antenna, and removes the need for specialized RF design knowledge. Compatibility with Silicon Labs certified stacks and development tools enables rapid development and deployment.

It supports stand-alone and network co-processor modes, providing developers versatile options for implementing Bluetooth functionalities. The Precision Low Frequency Oscillator embedded in the module meets Bluetooth Low Energy (BLE) sleep clock accuracy requirements, eliminating the need for an external crystal to optimize power efficiency.

Typical industrial, laboratory, HVAC, manufacturing, and commercial applications benefit from this Bluetooth module’s high performance and compact footprint. It enables enhanced wireless communication capabilities in IoT devices, sensors, smart meters, and wireless control systems.

Supports Bluetooth 5 LE and Bluetooth mesh connectivity. Offers high throughput and long range with up to 2Mbps data rate. Compact size and low PCB area requirement including antenna clearance. Wide operating temperature range suitable for demanding environments.

Includes all necessary components, including integrated antenna. Supports both stand-alone and network co-processor operation modes. Built-in Precision Low Frequency Oscillator meets BLE Sleep Clock accuracy. Facilitates rapid time-to-market with certified stacks and development tools.
