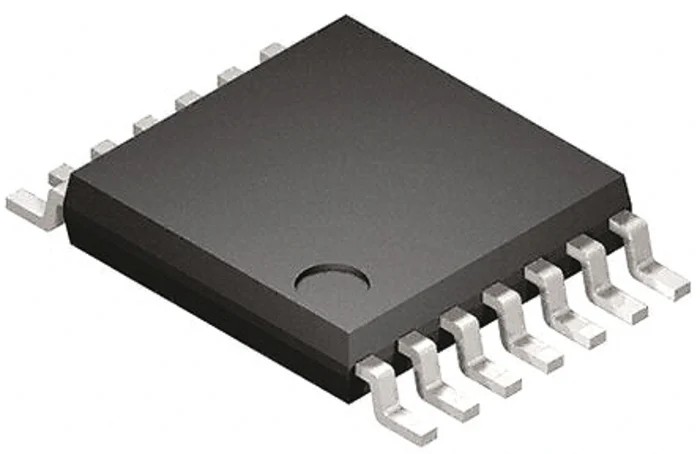

Microchip Digital Potentiometer 256-Position 100 kΩ Linear 2-Channel SPI Interface 14-Pin TSSOP MCP42100-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 5.1mm |
| Model | MCP42100-I/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Memory type | Volatile |
| Series | MCP42 |
| Temperature Coefficient | 800 ppm/°C |
| Maximum Operating Temperature | 85°C |
| Number of Positions | 256 |
| Resistance | 100kΩ |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Taper Type | Linear |
| Number of Pots per Package | 2 |
Key Features
- Offers precise resistance adjustment with 256 discrete positions.
- Equipped with SPI interface for easy communication.
- Devices operate with a supply voltage from 2.7V to 5.5V.
- Designed for surface mount with compact TSSOP package.
- Operates reliably between -40°C and 85°C.
- Memory type is volatile, resetting upon power down.
- Temperature coefficient of resistance is 800 ppm/°C.
- RoHS compliant ensuring environmental safety.
Product Description
Microchip MCP42100-I/ST digital potentiometer is a high-precision electronic component designed for adjustable resistance applications. Featuring 256 discrete resistance positions, it allows fine control over 100 kΩ resistance values in a dual-channel (2 pots per package) configuration. This device uses an SPI interface for seamless integration into digital systems, enabling easy programming and control.
Housed in a compact 14-pin TSSOP surface mount package, the device is suitable for space-constrained circuit designs. Its operating voltage range of 2.7V to 5.5V makes it compatible with a variety of low-voltage electronic circuits.
The digital potentiometer has a linear taper type and a temperature coefficient of 800 ppm/°C, ensuring stable performance across temperatures from -40°C to 85°C, typical of industrial environments.
The internal memory is volatile, meaning resistance settings reset when power is removed, suitable for systems requiring dynamic adjustment during operation.
At just 5.1mm x 4.5mm x 0.95mm, its small footprint saves board space in compact electronic assemblies. The device complies with RoHS directives, ensuring it meets environmental and safety standards.
Offers precise resistance adjustment with 256 discrete positions. Equipped with SPI interface for easy communication. Operates within 2.7V to 5.5V supply range. Compact 14-pin TSSOP surface mount package design. Wide operating temperature range: -40°C to 85°C.
Linear taper and 100 kΩ resistance value. Volatile memory resets resistance on power down. RoHS compliant for environmental safety. Dimensions: Length 5.1mm, Width 4.5mm, Height 0.95mm. Suitable for industrial and electronic adjustable resistance applications.
This product fits well in various industrial, electronic, and laboratory applications requiring precise digital control of resistance. It is commonly used in signal conditioning, calibration, variable gain amplifiers, and other electronic systems where programmable resistors are necessary.
Explore more Digital Potentiometers and electronic components on EnvMart for all your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a resistance value of 100 kΩ with 256 discrete positions for precise adjustment.
It operates within a supply voltage range of 2.7V to 5.5V, making it suitable for various low-voltage applications.
This unit is equipped with an SPI interface, allowing for easy communication and integration into digital systems.
The digital potentiometer has a compact size of 5.1mm in length, 4.5mm in width, and 0.95mm in height.
It operates reliably between -40°C and 85°C, making it suitable for industrial environments.
This model features a dual-channel configuration with 2 pots per package.
The internal memory is volatile, meaning that the resistance settings reset when power is removed.
The MCP42100-I/ST has a linear taper type, providing a consistent resistance change across its range.
Yes, this digital potentiometer is RoHS compliant, ensuring it meets environmental and safety standards.
The temperature coefficient of resistance is 800 ppm/°C, indicating its stability across temperature variations.
It is housed in a compact 14-pin TSSOP surface mount package, suitable for space-constrained designs.
This digital potentiometer is commonly used in signal conditioning, calibration, and variable gain amplifiers in electronic systems.
