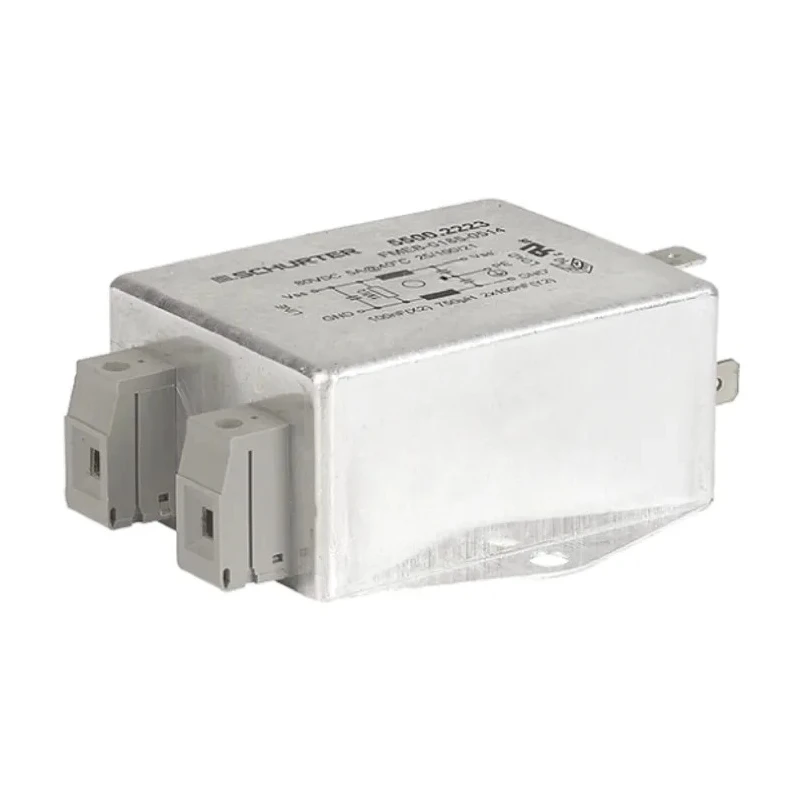

Schurter Chassis Mount EMC Filter 5A 80V DC Screw Termination Single Phase FMEB 5500.2229
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 43mm |
| Length | 89mm |
| Depth | 71mm |
| Mount Type | Chassis Mount |
| Series | FMEB |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 5A |
| Number of Phases | 1 |
| Maximum Voltage | 80V dc |
| Inductance | 3mH |
| Termination Style | Screw |
Key Features
- Single phase filter optimized for effective suppression of symmetrical and asymmetrical interference from 100kHz to 30MHz.
- Constructed in an aluminum case with chassis mount design and screw termination style for secure installation.
- Capacitance of 100nF and inductance of 3mH, providing reliable interference filtering performance.
- Operating temperature range from -25°C to 100°C suitable for varied industrial environments.
- Compact dimensions of 89mm length, 43mm height and 71mm depth for space-efficient integration.
- Resistance rated at 1mΩ ensuring minimal power loss during operation.
- Certified for use according to IEC/EN 60950 standards enhancing safety and reliability.
Product Description
Schurter 5500.2229 Chassis Mount EMC Filter is a high-quality single stage filter designed specifically for DC applications requiring up to 5A current and 80V DC voltage. The filter is constructed in a robust aluminium case ensuring durability, with a chassis mount configuration and screw termination for secure fitting in electronic assemblies.
This EMC filter effectively suppresses both symmetrical and asymmetrical interference frequencies ranging from 100kHz to 30MHz, making it suitable for industrial electronics, power supplies, and communication systems. It features a capacitance of 100nF and inductance of 3mH, optimized to maintain signal integrity and reduce electromagnetic noise.
With an operating temperature range from -25°C to 100°C, this filter is reliable for harsh industrial environments. The compact physical dimensions of 89mm in length, 43mm in height, and 71mm in depth allow it to fit efficiently into control panels and chassis assemblies with limited space.
Resistance is maintained at a low 1mΩ to reduce power loss and increase efficiency. The product complies with IEC/EN 60950 standards, qualifying it for use in commercial and industrial electrical equipment.
Single phase, single stage DC EMC filter with chassis mount design. Effective noise reduction between 100kHz to 30MHz frequencies. Aluminium case ensures durability and electromagnetic shielding. Rated for 5A current and 80V DC voltage operation.
Operating temperature spans from -25°C up to 100°C for versatile industrial use. Compact size enables space-saving chassis integration. Meets IEC/EN 60950 safety and performance standards.
This product is ideal for industrial electronic assemblies, power control units, HVAC system components, and communication devices that require EMC compliance and interference management. Explore more Schurter EMC and power line filters for a complete range of electromagnetic compatibility solutions on EnvMart.
Explore more products in our EMC Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this EMC filter is 5A.
This model operates at a maximum voltage of 80V DC.
It effectively suppresses interference frequencies ranging from 100kHz to 30MHz.
The dimensions are 89mm in length, 43mm in height, and 71mm in depth.
It features a screw termination style for secure installation.
The inductance rating is 3mH.
The capacitance is rated at 100nF.
The operating temperature range is from -25°C to 100°C.
This unit uses a chassis mount design.
It is certified for use according to IEC/EN 60950 standards.
The country of origin for this product is India.
The resistance is rated at 1mΩ, ensuring minimal power loss during operation.
