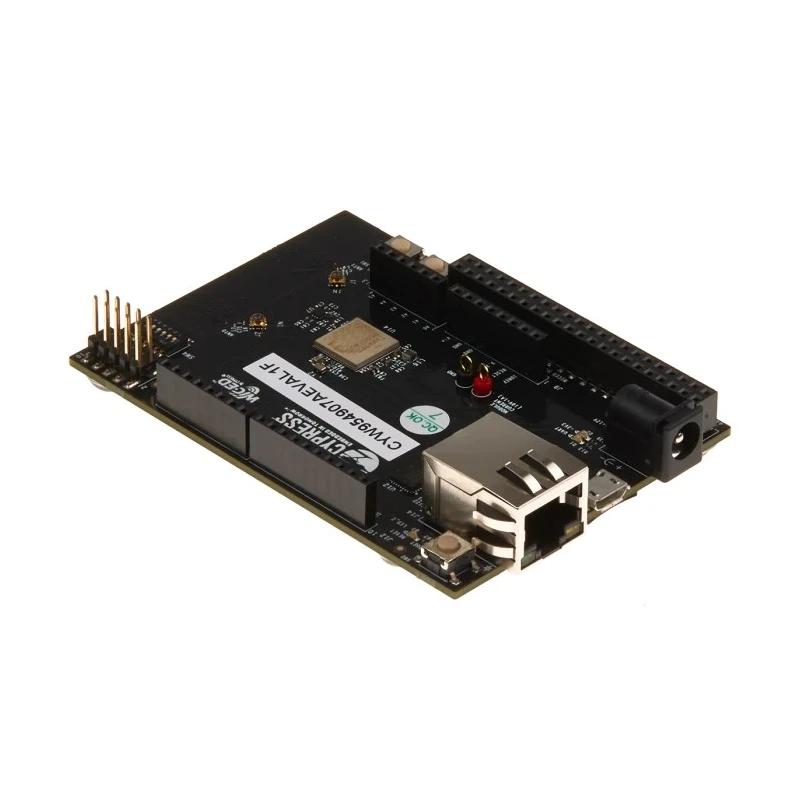

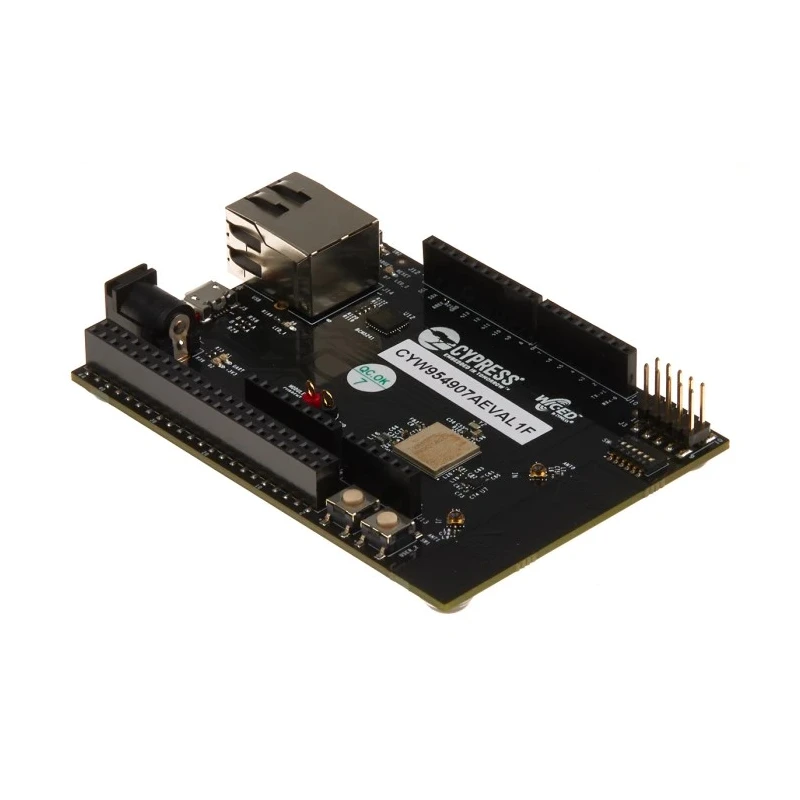

Infineon Bluetooth Chip CYW954907AEVAL1F USB SPI Interface Evaluation Board 5V-12V Input

Infineon CYW954907AEVAL1F Bluetooth Chip evaluation board is a high-performance development kit designed to facilitate the evaluation and development of single-chip Wi-Fi applications using the CYW54907 device. It integrates a single-chip 802.11ac dual-band Wi-Fi System on Chip (SoC) featuring a powerful 320-MHz Arm Cortex-R4 microcontroller unit (MCU), enabling advanced wireless communication capabilities.

This evaluation board supports input voltages ranging from 5V to 12V supplied through a USB connector or a dedicated power jack, ensuring flexible power options for various development environments. The board includes USB and SPI interface types to support different communication protocols.

Designed for rapid prototyping, the board includes Arduino compatible headers allowing easy integration of off-the-shelf shields to expand hardware functionality. Moreover, it possesses a custom header to expose additional General Purpose Input/Output (GPIO) pins (known as the WICED header), enhancing connectivity options for developers.

Connectivity features include an onboard PCB antenna with the option to connect an external antenna, ensuring reliable wireless transmissions. The board also integrates an onboard programmer and debugger accessible via USB interface and USB-UART bridge, facilitating streamlined firmware development and debugging.

An RJ45 connector is provided enabling Ethernet connectivity for versatile networking applications. User interfaces such as switches and LEDs are incorporated for status indication and manual control during development and testing phases.

This evaluation kit is widely applicable for embedded systems and Internet of Things (IoT) device development. It is supported by the WICED Studio Integrated Development Environment (IDE) offered by Cypress Semiconductor, providing a comprehensive software platform for efficient application development.

Experience industry-grade Bluetooth and Wi-Fi integration with the Infineon CYW954907AEVAL1F Bluetooth Chip evaluation board. This product is suitable for professional developers working in embedded, communications, and IoT markets seeking to evaluate and prototype advanced wireless solutions.

EnvMart offers this Infineon Bluetooth Module within a specialized category to help you find related components and solutions suited to your technical and industrial needs. Operates with 5V to 12V input via USB connector or power jack.

Provides USB and SPI interface types for communication. Features Arduino compatible headers for hardware expansion. Includes an onboard PCB antenna and option for an external antenna. Equipped with onboard programmer and debugger via USB and USB-UART bridge.
