Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contacts 3mm Pitch Shrouded 43650-0209

Free Delivery in India | Lowest Global Shipping Charges

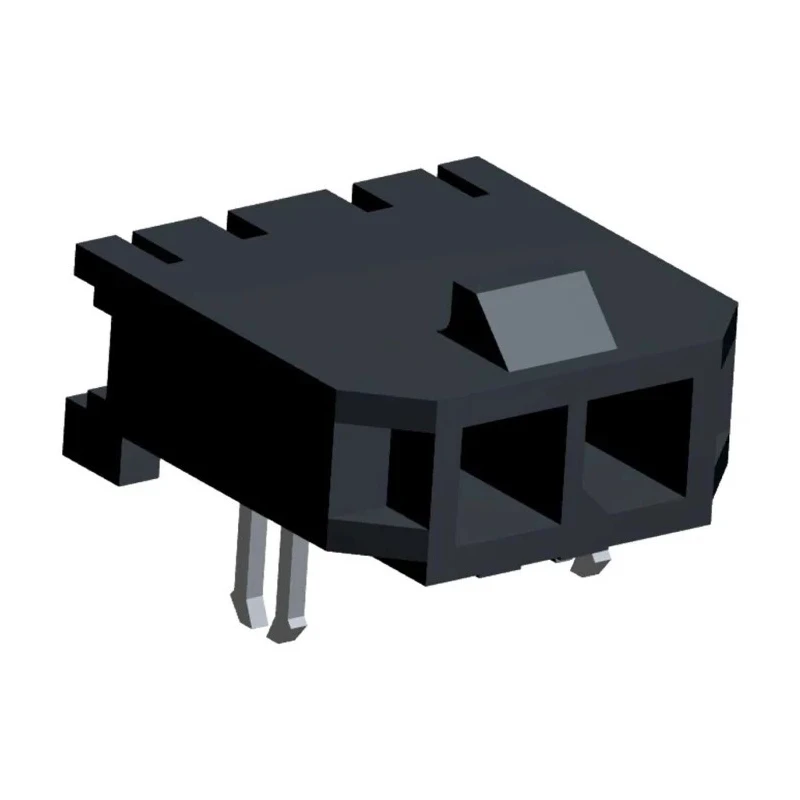

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contacts 3mm Pitch Shrouded 43650-0209

Name: Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contacts 3mm Pitch Shrouded 43650-0209
Brand: Molex
SKU: 206600



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	5A
Mount Type	Surface
Housing Material	High Temperature Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

High current carrying capacity up to 5A in a compact 3 mm pitch footprint.
Housing made from high-temperature UL 94V-0 Liquid Crystal Polymer thermoplastic.
Positive latching mechanism prevents accidental disconnection.
Surface mount type with solder termination and press-fit metal retention clips.
Male brass contacts with tin plating for durable electrical connections.
Operates reliably across a temperature range of -40°C to 105°C.
Compact single-row design with 2 contacts for efficient PCB use.
Suitable for industrial, military, medical, telecommunications, and consumer electronics.

Product Description

Molex 43650-0209 Micro-Fit 3.0 Series Right Angle Surface PCB Header is a precision-manufactured wire-to-board connector engineered for reliable power distribution up to 5 amps at 250 volts. Featuring a 3 mm pitch and single-row, 2-contact configuration, this shrouded PCB header offers a compact footprint with robust mechanical and electrical performance.

The housing is constructed from high-temperature UL 94V-0 Liquid Crystal Polymer thermoplastic, which withstands reflow soldering temperatures up to 265°C, making it suitable for modern PCB assembly techniques. The male brass contacts are tin plated and isolated within the housing to reduce arcing and maintain signal integrity.

This connector incorporates a positive latching system with a locking ramp to prevent accidental disconnection, ensuring secure mating under vibration or mechanical stress. The surface mount design with solder termination supports reliable and cost-effective PCB mounting, while the press-fit metal retention clips provide additional mechanical retention.

Designed specifically for low to mid power applications, the Molex Micro-Fit 3.0 Series connectors are ideal for industrial, military COTS (Commercial Off The Shelf), solar power systems, consumer electronics, data communications, medical devices, telecommunications, and gaming terminals.

High current capacity in a compact 3 mm pitch design. Durable high-temperature thermoplastic housing compatible with IR reflow soldering. Positive latching mechanism for secure wire-to-board connection. Fully isolated dual beam terminals for reliable electrical interface.

Solderable retention clips to secure the connector on the PCB. Wide operating temperature range from -40°C to 105°C supports various environments. Right angle orientation optimizes PCB layout and cable routing. Manufactured in Mexico to precise quality standards.

This connector is part of the Molex Micro-Fit 3.0 Series, known for its compact power distribution solutions in diverse electronics industries. Explore our extensive selection of PCB Headers and connectors to meet your design and assembly requirements at EnvMart.
