| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.53mm |
| Length | 1.07mm |
| Model | DESD5V0U1BLQ-7B |
| Width | 0.67mm |
| Mount Type | Surface |
| Series | DESD |
| Maximum Operating Temperature | 150°C |
| Package Type | X1-DFN |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 7.2V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 5.5V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 3A |

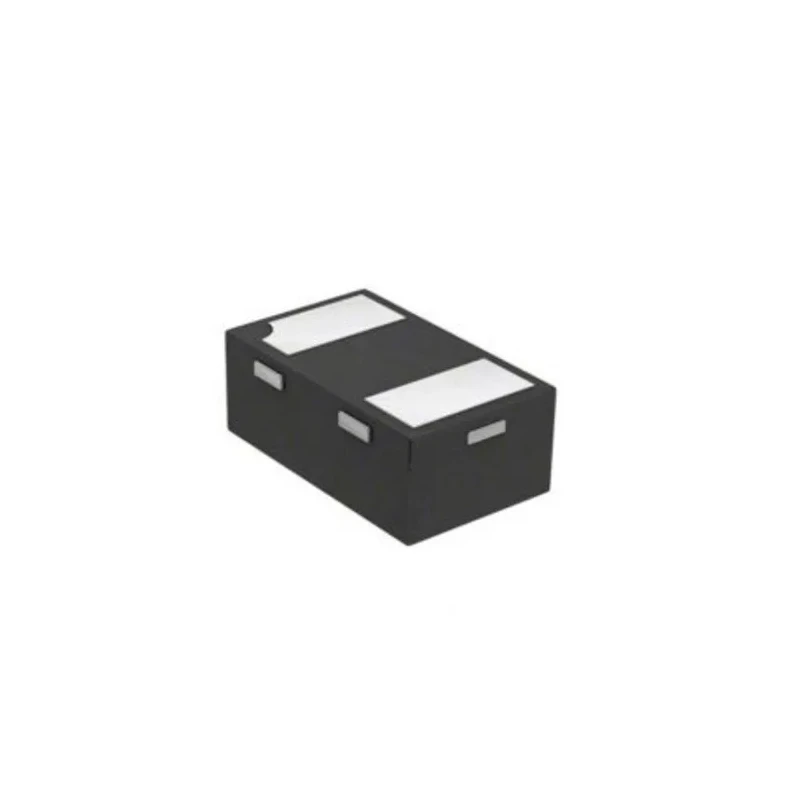

DiodesZetex DESD5V0U1BLQ-7B is a 1-element bi-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and electrostatic discharge (ESD). This diode features a compact 2-pin X1-DFN surface mount package, enabling space-saving PCB designs in modern electronic devices.
The diode supports a maximum peak pulse current of 3A, complying with IEC 61000-4-5 standard, ensuring robust protection against transient surges. Its low capacitance makes it highly suitable for high-speed signal line protection in cellular handsets, portable electronics, communication equipment, computers, and peripheral devices.
Operating reliably over a temperature range from -65°C to 150°C, this diode meets demanding industrial and commercial specifications. The electrical parameters include a minimum breakdown voltage (Vbr) of 5.5V, a clamping voltage (Vc) of 7.2V, and a maximum reverse stand-off voltage (Vwm) of 5V, providing efficient suppression of transient voltages.
The device is lead-free and fully RoHS compliant, supporting environmentally conscious manufacturing standards. The small footprint with dimensions of 1.07mm length, 0.67mm width, and 0.53mm height allows flexible integration in compact assemblies.
Provides high peak pulse current handling of 3A for reliable ESD protection. Low capacitance bidirectional diode ideal for consumer and industrial electronics. Compact surface mount X1-DFN package for space-critical applications.
Wide operating temperature range of -65°C to 150°C suitable for harsh conditions. Clamping and breakdown voltages designed for effective transient voltage suppression. Lead-free and RoHS compliant for green electronics manufacturing.
Protects communication systems, computers, peripherals from electrostatic discharge and voltage surges.
This diode is well-suited for industrial, consumer electronics, telecommunications, and computing applications requiring reliable transient voltage suppression. For more specialized electronic components including TVS Diodes, explore EnvMart's electronics section.
